SMD LED Flood Lights
LED Flood Lights,also called LED projectors, is an all-direction uniform exposure lighting fixture, its illuminated area can be adjusted. LED Flood Lights is the LED replacement for the 60 to 400 watt traditional floodlights (Sodium/Metal Halide Lamps)
 |
||
| Model: | SMD LED Flood Lights | |
| Power | 40W-160W | |
| Lumens | 2400lm-9600lm | |
| Working Voltage | 24VDC/100-240VAC | |
| Life Span | >50,000 Hours | |
| Base | N/A | |
| Certificates | CE, RoHS, (UL Pending) | |
| Warranty | 24 Months | |
 |
||
Chat with Eneltec using:
Model Number |
SMD LED Flood Lights |
LED |
SMD6060 |
Color |
Cool White/Warm White |
CRI |
>80 |
Luminescence Angle |
Horizontal: 60°,Vertical: 60° |
Lumens |
2400lm-9600lm |
Working Voltage |
24VDC/100-240VAC |
Power Consumption |
40W-160W |
Lamp Base |
N/A |
Certification |
CE, RoHS, (UL Pending) |
Dimension |
N/A |
Packing |
N/A |
|
ENFL-40W-01 |
ENFL-80W-01 |
ENFL-120W-01 |
ENFL-160W-01 |
| No. | Model No. |
Power Consumption (W) |
LED Initial Flux (LM) |
Lamp Flux (LM) |
Beam Angle |
Input Voltage |
PF | Power Efficiency | Color | Color Rendering Index (CRI) |
Working Enviornment |
Material |
IP Rating |
Working Life (Hours) |
Product Dimension (mm) |
Packing Dimension (mm) |
Net Weight/ Gross Weight (Kgs) |
| 1 | ENFL-40W-01 | 40 | 4800 | 3600 | 60° |
100-240VAC/ 24VDC |
>0.98 | 94% |
Warm White Cool White |
Ra>80 |
Temperature: -40℃～50℃ Humidity: 10%～90% |
Aluminum Alloy | IP67 | >50000 | 280×195×91 |
4 pcs 530×440×235 |
4 pcs 13.1/14.7 |
| 2 | ENFL-80W-01 | 80 | 9600 | 7200 | 60° |
100-240VAC/ 24VDC |
>0.98 | 94% |
Warm White Cool White |
Ra>80 |
Temperature: -40℃～50℃ Humidity: 10%～90% |
Aluminum Alloy | IP67 | >50000 | 450×302×81 |
4 pcs 705×435×140 |
4 pcs 9.1/10.3 |
| 3 | ENFL-120W-01 | 120 | 14400 | 10800 | 60° |
100-240VAC/ 24VDC |
>0.98 | 94% |
Warm White Cool White |
Ra>80 |
Temperature: -40℃～50℃ Humidity: 10%～90% |
Aluminum Alloy | IP67 | >50000 | 450×302×81 |
4 pcs 705×435×140 |
4 pcs 9.2/10.3 |
| 4 | ENFL-160W-01 | 160 | 19200 | 14400 | 60° |
100-240VAC/ 24VDC |
>0.98 | 94% |
Warm White Cool White |
Ra>80 |
Temperature: -40℃～50℃ Humidity: 10%～90% |
Aluminum Alloy | IP67 | >50000 | 450×380×81 |
4 pcs 755×435×140 |
4 pcs 9.7/10.9 |
.Eco-friendly .No mercury contained
.Anti-global warming by reduction of CO2 emission
.Low temperature maintained by unique heat dissipation mechanism
.Longer Lifetime of 30000~50000 hrs
.Warranty period is 2 years from the date of purchase(Om condition
that operating ambient temperature is 0°C~30°C (32°F~86°F) and use time is hours per day)

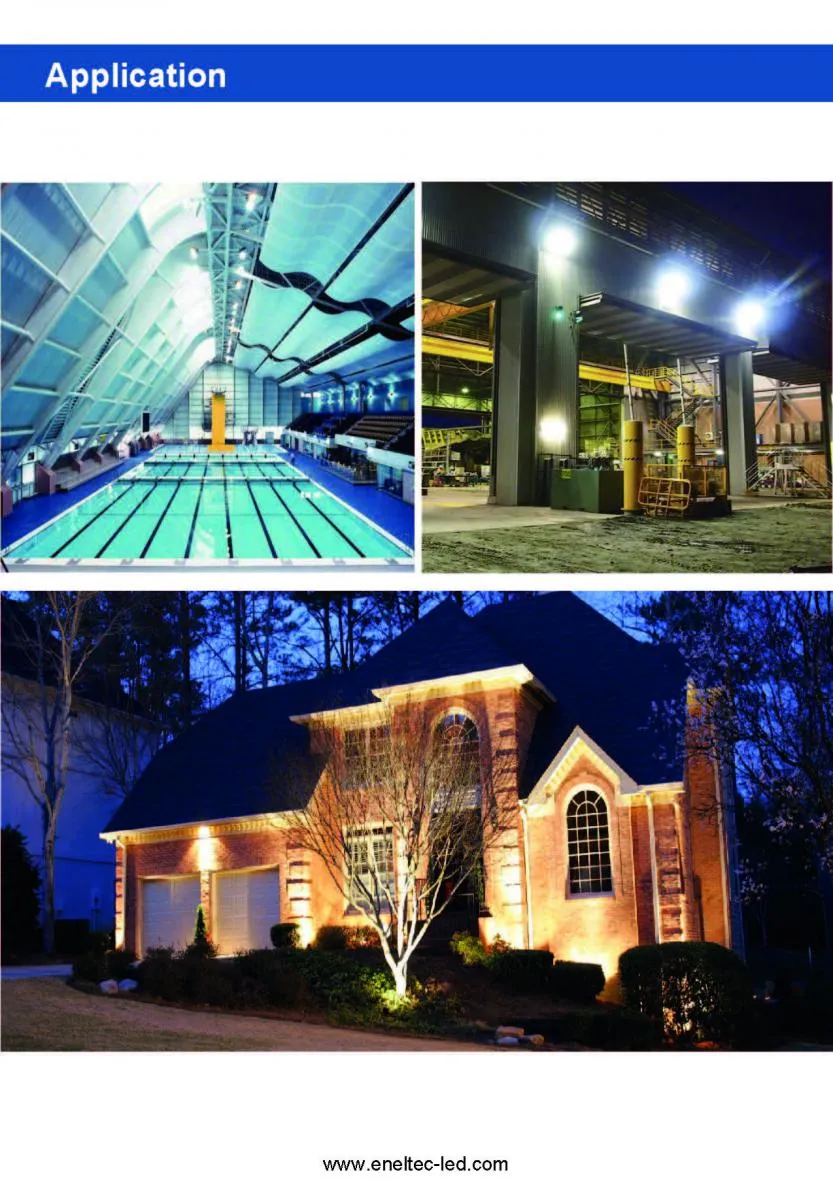

Application:
Widely used in the tunnel,hospital , schools , factories , supermarkets and so on.
Comparison of Lifetime:
 |
Flood Light |
6000,hours lifetime |
Increase the replacement cost |
 |
LED Flood Light | 50000,hours lifetime |
long time with 2 years warranty |
Packing:
 |
Special Features:
--High Power LEDs as the Light Source;
--Aluminium Alloy Extruded Shape;
--Excellent Heat Sinking Design;
--Proprietary housing design for best thermal management & lumen maintenance;
--Long Term Lumen Maintainance & Long lifespan.
--Ideal for landscape and architecture lighting.
--Widely used in Home, office, display case lighting, under cabinet lighting, art lighting, boat lighting, and accent lighting.
