Electrical data
| Nominal wattage |
3.0 W |
| Reverse Voltage |
24 V |
| Type of current |
DC |
Light technical data
| Beam angle |
36 ° |
| Color temperature |
2700 K |
| Luminous flux |
270 lm |
| Luminous intensity |
540 cd |
| Light color LED |
white |
| Luminous efficacy |
84 lm/W |
| Color rendering index Ra |
85 |
| Light color as per EN 12464-1 |
Warm White |
Dimensions & weight
| Height |
12.0 mm |
| Diameter |
35.0 mm |
| Cable length |
200.0 mm |
Temperatures
| Temperature range in operation |
-30…90 °C |
Lifespan
| Lifespan |
50000 h |
Additional product data
| Number of LEDs per module |
3 |
| Footnote used only for product |
Modules perfectly matched to 350 mA and 700 mA OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, seewww.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values |
Capabilities
| Dimmable |
Yes |
Certificates & standards
| Standards |
acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / ENEC: 61347-2-13 / acc.to IEC/EN 62384 / acc. to IEC 60068-2 |
Country specific categorizations
| Marketing product family |
DP35 |
OSRAM GmbH. All rights reserved. Lighting for conference rooms

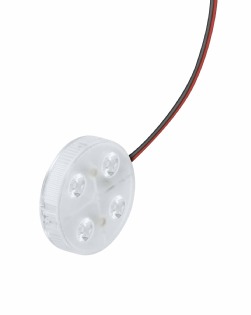

DRAGONpuck
Zoom in
Zoom out
Resize
Product benefits
System+ Guarantee in combination with OSRAM OPTOTRONIC control gear
Low maintenance costs thanks to a lifetime of up to 50, LED Floater Headline
: important data at a glance
-W4F-3-827
-W4F-3-857
-W4F-7-827
-W4F-7-857
-W4F-9-827
-W4F-9-857
-W4F-3-827
-W4F-3-857
-W4F-7-827
-W4F-7-857
-W4F-9-827
-W4F-9-857
Scroll to left
Scroll to right
Zoom image
DP35 -W4F-3-827
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number
4008321976123 7474581
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013,
Modules
Round LED modules
DRAGONpuck
Guiding & safe
Application: Lighting for corridors and stairs
Prestigious & versatile
Application:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – best LED Bulb technology:000 h
Dimmable by pulse width modulation (PWM)
Areas of application
Shops
Light source for furniture luminaires
Hotels
Restaurants
Product features
Integrated 36o optics
For series connection
Two-core connecting cable (200 mm) with open cable ends
M3 screw fixing
Fine White
Equipment / Accessories
Heat sink CPDPHS
Family data sheet
Product family
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321976123 |
Unpacked
1 |
53 mm x 26 mm x 50 mm |
12.30 g |
0.07 dm³ |
| 4008321976130 |
Shipping carton box
16 |
224 mm x 56 mm x 90 mm |
301.80 g |
1.13 dm³ |
