Rated wattage | 6 W |
---|---|
Nominal wattage | 6 W |
Nominal voltage | 230 V |
Claimed equiv. conventional lamp power | 25 W |
Rated power factor λ | 0.62 |
Operating frequency | 50…60 Hz |
Nominal luminous flux | 250 lm |
---|---|
Rated luminous flux | 250 lm |
Color temperature | 2700 K |
Color rendering index Ra | 88 |
Starting time | 0.0 s |
Warm-up time (60 %) | 0 s |
Lumen main.fact.at end of nom.life time | 0.70 |
Light color as per EN 12464-1 | Warm White |
Overall length | 300.0 mm |
---|---|
Diameter | 30.0 mm |
Outer bulb | – |
Lamp mercury content | 0.0 mg |
---|---|
Mercury-free | Yes |
Nominal lamp life time | 12000 h |
---|---|
Rated lamp life time | 12000 h |
Number of switching cycles | 50000 |
Base (standard designation) | S14s |
---|---|
New article | NEW |
Design / version | Frosted |
Footnote used only for product | All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Dimmable | No |
---|
EEI – Energy Label | A |
---|
ILCOS | DRL-DE-6-230-S14D-29/300 |
---|
LEDinestra
Inviting & safe
Application. restaurants
Domestic applications
Product features
Professional LED lamps for line voltage
Not dimmable
Average life, restaurants
Domestic applications
Product features
Professional LED lamps for line voltage
Not dimmable
Average life.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology:700 K Reduce text
Family data sheet
Product family,000 h
Mercury-free lamps
Color temperature: no warm-up time
Excellent color rendering
Simple direct replacement for conventional incandescent lamps
Lower thermal output (compared with the standard reference product)
Areas of application
Ideal for mirror lighting
Hotels, Bedroom lighting
LEDinestra
Zoom in
Zoom out
Resize
Product benefits
Low energy consumption
Longer lamp life and service life (compared with the standard reference product)
No UV and near-IR radiation in the light beam
Instant 100 % light: important data at a glance
6 W/827 S14S
6 W/827 S14D
Zoom image

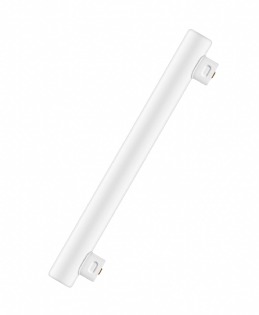

LEDinestra 6 W/827 S14S
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Addon Technical Information
LEDinestra 6W pdf 56,700 K Reduce text
Product benefits
Low energy consumption
Longer lamp life and service life (compared with the standard reference product)
No UV and near-IR radiation in the light beam
Instant 100 % light, Hallway and stairwell lighting
Totally relaxing
Application, 12: no warm-up time
Excellent color rendering
Simple direct replacement for conventional incandescent lamps
Lower thermal output (compared with the standard reference product)
Areas of application
Ideal for mirror lighting
Hotels, All rights reserved:, OSRAM GmbH,:000 h
Mercury-free lamps
Color temperature: 12. 2.
Lamps
Professional special LED Down Lights lamps. LED Floater Headline
:8 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013
EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
---|---|---|---|---|
4008321975317 | Folding carton box 1 |
372 mm x 49 mm x 66 mm | 125.00 g | 1.20 dm³ |
4008321975324 | Shipping carton box 5 |
380 mm x 81 mm x 255 mm | 807.00 g | 7.85 dm³ |
