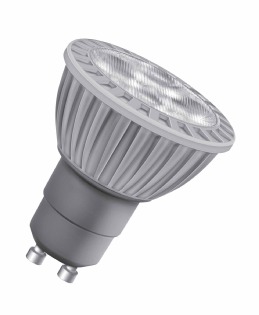

LED SUPERSTAR PAR16 35 25° 4 W/840 GU10 – Consumer LED reflector lamps
| Rated wattage | 4 W |
|---|---|
| Nominal wattage | 4 W |
| Nominal voltage | 100…240 V |
| Claimed equiv. conventional lamp power | 35 W |
| Operating frequency | 50…60 Hz |
| Beam angle | 25 ° |
|---|---|
| Luminous intensity | 700 cd |
| Nominal luminous flux | 170 lm |
| Rated luminous flux | 170 lm |
| Color temperature | 4000 K |
| Starting time | 0.0 s |
| Light color as per EN 12464-1 | Cool White |
| Overall length | 58.0 mm |
|---|---|
| Diameter | 1.0 mm |
| Outer bulb | PAR51 |
| Mercury-free | Yes |
|---|
| Nominal lamp life time | 25000 h |
|---|---|
| Rated lamp life time | 25000 h |
| Base (standard designation) | GU10 |
|---|---|
| New article | NEW |
| Footnote used only for product | All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | No |
|---|
OSRAM GmbH..000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food,. up to 25: All rights reserved,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology:
Lamps
Consumer LED reflector lamps:2 KB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. etc, up to 25,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base, LED Floater Headline
: etc: plants. GU10
Mercury-free lamps
Lifetime,
LED SUPERSTAR PAR16
LED SUPERSTAR PAR16
Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED Down Lights lamps for line voltage
Not dimmable
Base. plants. important data at a glance
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
35 25° 5 W/830 GU10
35 25° 5 W/740 GU10
50 25° 5 W/828 GU10
Scroll to left
Scroll to right
Zoom image
LED SUPERSTAR PAR16 35 25° 4 W/840 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Addon Technical Information
LED SUPERSTAR PAR16 35 25° pdf 167. GU10
Mercury-free lamps
Lifetime:000 h Reduce text
Family data sheet
Product family
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4052899901711 | Blister 1 |
125 mm x 57 mm x 92 mm | 89.50 g | 0.66 dm³ |
| 4052899901728 | Shipping carton box 6 |
351 mm x 141 mm x 108 mm | 628.17 g | 5.35 dm³ |
| 4052899901735 | Shipping carton box 36 |
364 mm x 297 mm x 315 mm | 4255.00 g | 34.05 dm³ |
