LF05A -W3F-840-P – LINEARlight FLEX Protect ADVANCED – Flexible LED modules

LF05A -W3F-840-P – LINEARlight FLEX Protect ADVANCED – Flexible LED modulesLF05A -W3F-840-P - LINEARlight FLEX Protect ADVANCED - Flexible LED modules

Electrical data
Nominal wattage 72.0 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 4000 K
Luminous flux 2700 lm
Light color as per EN 12464-1 Cool White
Light color LED white
Color rendering index Ra › 80
Dimensions & weight
Length 9900.0 mm
Length – smallest unit 100.0 mm
Width 11.0 mm
Height 4.5 mm
Cable length 500.0 mm
Temperatures
Temperature range in operation -30…75 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 495
Number of LEDs per smallest unit 5
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Type of protection IP67
Standards acc. to EN 60598-1
Country specific categorizations
Marketing product family LF05A-P

LED Floater Headline
.. IP67
Dimmable
Fine White
Salt mist proof
Highly UV-resistant
Family data sheet
Product family,
LINEARlight FLEX Protect ADVANCED

Zoom in
Zoom out
Resize
Product benefits
High-performance silicon for extremely long life and flexibility
Simple mounting and connection
Stylish design
Self-adhesive backing for simple installation
Simple connection thanks to premounted connectors
Extremely long for seamless light with small pitches
Product features
Flexible and cuttable LED strip
Type of protection:
Modules
Flexible LED modules
LINEARlight FLEX Protect ADVANCED:. OSRAM GmbH.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – G24 LED technology. important data at a glance

Product video
-B3-P
-W3F-830-P
-W3F-840-P
-W3F-860-P
Zoom image

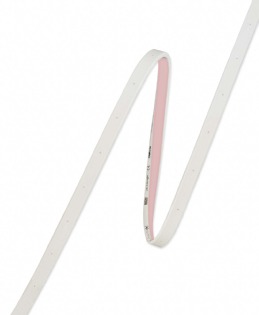

LF05A -W3F-840-P
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321619266 OSRLF05AW3F840P 8334145 4030001
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321619266 Folding carton box
1		 353 mm x 37 mm x 349 mm 1087.70 g 4.56 dm³
4008321619273 Shipping carton box
8		 366 mm x 368 mm x 286 mm 10550.00 g 38.52 dm³
