Electrical data
Nominal wattage 72.0 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Luminous flux 1700 lm
Light color as per EN 12464-1 Red
Dimensions & weight
Length 4000.0 mm
Length – smallest unit 100.0 mm
Width 8.0 mm
Height 2.2 mm
Temperatures
Temperature range in operation -30…75 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 200
Number of LEDs per smallest unit 5
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Country specific categorizations
Marketing product family LF05CA

important data at a glance

Product video
-RGB1
-RGB3
Zoom image

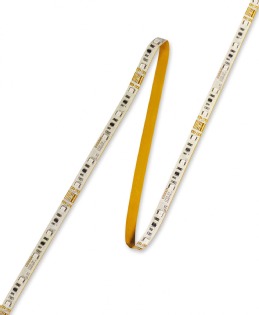

LF05CA -RGB3
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight Colormix Flex LF05C (data sheet) pdf 160.2 KB
mov
Product movie
Spots LINEARlight Flex Quality long QTh264 3500kbit 1024×576 (E) mov 105.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology,2 MB
mov
Product movie
Spots LINEARlight Flex Quality short QTh264 3500kbit 1024×576 (E) mov 39. OSRAM GmbH. LED Floater Headline
. Shop window lighting
LINEARlight Colormix Flex

Zoom in
Zoom out
Resize
Product benefits
Uniform color changing
Toolless connection with the optional CONNECTsystem
Product features
Flexible and splittable G24 LED strip with inline multichip RGB LEDs
Universally applicable mounting profile for single or double-sided light boxes
Family data sheet
Product family:4 MB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
Modules
Flexible LED modules
LINEARlight Colormix Flex
Eye-catchingly attractive
Application: All rights reserved

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321592644 Folding carton box
1
184 mm x 31 mm x 184 mm 165.73 g 1.05 dm³
4008321592651 Shipping carton box
8
241 mm x 195 mm x 205 mm 1514.84 g 9.63 dm³
