Electrical data
Operating mode Electronic control gear (ECG)
Nominal wattage 33.4 W
Light technical data
Color temperature 3000 K
Beam angle 24 °
Luminous flux 2700 lm
Color rendering index Ra 80
Luminaire efficiency 0.90
Dimensions & weight
Height 280.0 mm
Colors & materials
Body material Aluminum
Product color Black
Cover material Glass
Additional product data
Number of lighting outlets 1
Equipment LED lamps
Equipped with lamp Yes
Capabilities
Type of installation 3P Track
Dimmable No
Color management (RGB) No
Type of connection Adapter bar
Certificates & standards
Protection class I
Type of protection IP20

LED Floater Headline
.90
Type of protection.
Indoor LED luminaires
Ceiling luminaires
Lunis SL-T LED
Lunis SL-T LED

Zoom in
Zoom out
Resize
Product benefits
Maximum profitability due to the high luminaire efficacy
Excellent illumination thanks to PrevaLED Core Z2
LED and HID can be combined thanks to identical design and modular system
5 years guarantee
Simple and fast connection thanks to universal 3-phase track adapter
Comfortable glare-free light thanks to the anti-glare accessory
Tool-free installation
Product features
Very good color rendering index Ra, > 90
Luminaire efficacy. > 90
Luminaire efficacy.] Show all
Product benefits
Maximum profitability due to the high luminaire efficacy
Excellent illumination thanks to PrevaLED Core Z2
LED and HID can be combined thanks to identical design and modular system
5 years guarantee
Simple and fast connection thanks to universal 3-phase track adapter
Comfortable glare-free light thanks to the anti-glare accessory
Tool-free installation
Product features
Very good color rendering index Ra: up to 83 [, +/- 60°
Color temperature::9 KB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. IP20
Average lifespan: 24° (medium) or 40° (wide)
Rotation, White (RAL 9016): All rights reserved, 360°,000 h Reduce text
Family data sheet
Product family: OSRAM GmbH:000 K (Neutral White)
Luminaire color,000 K (Warm White) or 4:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: important data at a glance
2700 lm 830 L24 BK
2700 lm 830 L24 GR
2700 lm 830 L24 WT
2700 lm 830 L40 BK
2700 lm 830 L40 GR
2700 lm 830 L40 WT
2700 lm 840 L24 BK
2700 lm 840 L24 GR
2700 lm 840 L24 WT
2700 lm 840 L40 BK
2700 lm 840 L40 GR
2700 lm 840 L40 WT
2700 lm 930 L24 BK
2700 lm 930 L24 GR
2700 lm 930 L24 WT
2700 lm 930 L40 BK
2700 lm 930 L40 GR
2700 lm 930 L40 WT
2700 lm 940 L24 BK
2700 lm 940 L24 GR
2700 lm 940 L24 WT
2700 lm 940 L40 BK
2700 lm 940 L40 GR
2700 lm 940 L40 WT
Scroll to left
Scroll to right
Zoom image

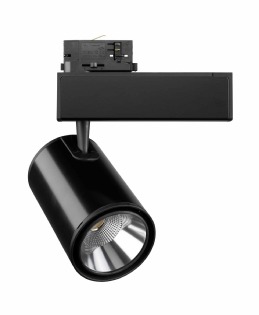

Lunis SL-T LED 2700 lm 830 L24 BK
Product data sheet
Add to notepad
Technical data
Expand
Downloads
Expand
File Type Size
pdf
Operating instructions
UI_LUNIS SL-T Modario IP20 Spotlight pdf 416: 0:1 KB
zip
Eulumdat
Lunis SL-T LED Products2700lm 830 24° zip 0.. 50. up to 83 lm/W
Beam angle: 3: pivoting: aluminum grey (RAL 9006) or black (RAL 9005)
Luminaire efficiency

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4006584741045 Folding carton box
1		 285 mm x 125 mm x 278 mm 1731.00 g 9.90 dm³
4006584741052 Shipping carton box
4
