QOD Add-on – Wall luminaires – Indoor LED luminaires

QOD Add-on – Wall luminaires – Indoor LED luminairesQOD Add-on - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 3.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 45 °
Luminous flux 150 lm
Luminous intensity 250 cd
Color rendering index Ra 73.2
Dimensions & weight
Length 70.0 mm
Width 70.0 mm
Height 8.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
Reflector type Lens
Capabilities
Type of installation Surface mounting
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40013

8 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Product features
Up to five modules can be operated in series
Color temperature. important data at a glance
Starter Set
Add-on
CHROME Add-on
CHROME SET
Ext. LED Floater Headline
, OSRAM GmbH.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology. Cable 1: Home office lighting
QOD

Zoom in
Zoom out
Resize
Product benefits
High brightness thanks to LED technology
Extremely low profile: white or chrome
Family data sheet
Product family: All rights reserved,
Indoor LED luminaires
Wall luminaires
QOD
Superbly planned
Application: adhesive tape or srews
Color:5 m
Zoom image

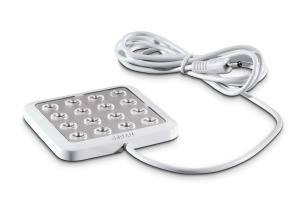

QOD Add-on
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: 3:000 K
Low-profile furniture luminaires
Type of mounting

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321962935 Blister
1
142 mm x 32 mm x 142 mm 130.67 g 0.65 dm³
4008321962942 Shipping carton box
6
220 mm x 263 mm x 329 mm 1266.00 g 19.04 dm³
4008321609144 Shipping carton box
48
535 mm x 551 mm x 401 mm 11379.25 g 118.21 dm³
