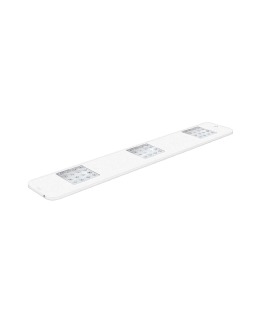

QOD DOMINO LONG 3X4 W – Ceiling luminaires – Indoor LED luminaires
Electrical data
| Nominal wattage |
12.00 W |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
45 ° |
| Luminous flux |
450 lm |
| Color rendering index Ra |
73.2 |
Dimensions & weight
| Length |
500.0 mm |
| Width |
80.0 mm |
| Height |
10.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
White |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Polycarbonate (PC) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
3 |
| Equipment |
LED |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Surface mounting |
| With on/off switch |
Yes |
| Type of connection |
Plug transformer |
| Accessories |
2x screws / 2x screw caps / Electronic control gear (ECG) |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class III (safety extra-low voltage) |
| Type of protection |
IP20 |
| Protection against ignition and fire |
F, MM |
Country specific categorizations
| Order reference |
40007 |
ECG and EU Plug
Family data sheet
Product family.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology. OSRAM GmbH, 3: All rights reserved,000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch,
Indoor LED luminaires
Ceiling luminaires
QOD DOMINO
QOD DOMINO
Zoom in
Zoom out
Resize
Product benefits
Characteristic stylish design
Extremely low profile: 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED Products technology
Product features
Color temperature: LED Floater Headline
: important data at a glance
SHORT 2X4 W
SHORT 3X4 W
LONG 3X4 W
LONG 5X4 W
Zoom image
QOD DOMINO LONG 3X4 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321975041 |
Folding carton box
1 |
558 mm x 36 mm x 143 mm |
823.00 g |
2.87 dm³ |
| 4008321975058 |
Shipping carton box
4 |
635 mm x 188 mm x 218 mm |
4537.00 g |
26.02 dm³ |
