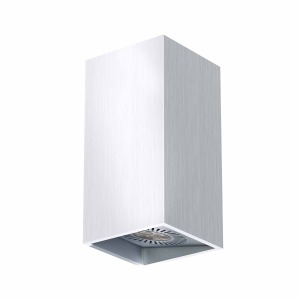

TRESOL Bloc SI – Deco & Living – Indoor LED luminaires
Electrical data
| Nominal wattage |
9.00 W |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Luminous flux |
330 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
170.0 mm |
| Width |
92.0 mm |
| Height |
84.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
Silver |
| Cover material |
Aluminum |
| Reflector material |
Plastic |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
2 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Screws |
| Adjustable |
Yes |
| Dimmable |
No |
| With on/off switch |
No |
| Type of connection |
Fixed (cutting terminal) |
| Accessories |
2x anchors / 2x screws |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
Country specific categorizations
| Order reference |
73233 |
entrances
Product features
High-value aluminum LED wall luminaire
Color temperature.5 W high-power OSRAM Golden Dragon Plus LED
Family data sheet
Product family.
Indoor High Power LED Flood Light luminaires
Deco & Living
TRESOL Bloc
TRESOL Bloc
Zoom in
Zoom out
Resize
Product benefits
High luminous flux
No external electronic control gear required
Areas of application
Decorative effect lighting of walls
Orientation lighting
Wallwasher effect lighting in living rooms,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology: All rights reserved.000 K
Up- and Downlight with adjustable light beams
Equipment / Accessories
Equipped with 2 x 4, OSRAM GmbH: bedrooms, dining rooms, 3, important data at a glance
SI
WT
Zoom image
TRESOL Bloc SI
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: LED Floater Headline
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321985484 |
Folding carton box
1 |
208 mm x 100 mm x 105 mm |
945.38 g |
2.18 dm³ |
| 4008321985521 |
Shipping carton box
4 |
416 mm x 235 mm x 123 mm |
3982.52 g |
12.02 dm³ |
