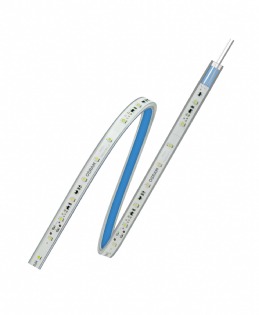

VI05A -W3-730 – LINEARlight FLEX Value IP – Flexible LED modules

VI05A -W3-730 - LINEARlight FLEX Value IP - Flexible LED modules

Electrical data
Nominal wattage 25.0 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 3000 K
Luminous flux 1250 lm
Light color as per EN 12464-1 Warm White
Light color LED white
Color rendering index Ra › 70
Dimensions & weight
Length 6000.0 mm
Length – smallest unit 100.0 mm
Width 11.0 mm
Height 6.0 mm
Cable length 455.0 mm
Temperatures
Temperature range in operation -20…60 °C
Lifespan
Lifespan 25000 h
Additional product data
Number of LEDs per module 300
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Type of protection IP66
Standards acc. to 2004/108/EC
Country specific categorizations
Marketing product family VI05A

important data at a glance

Product video
-W3-760
-W3-730
Zoom image
VI05A -W3-730
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number
4008321643933 7500216
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. All rights reserved. OSRAM GmbH, IP66
Dimmable
Salt mist proof
Family data sheet
Product family:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: LED Floater Headline
:
Modules
Flexible LED modules
LINEARlight FLEX Value IP
LINEARlight FLEX Value IP

Zoom in
Zoom out
Resize
Product benefits
Simple connection thanks to integrated cables on both sides
Low profile
Product features
Flexible G24 LED strip
Type of protection

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321643933 Folding carton box
1
353 mm x 32 mm x 349 mm 938.00 g 3.94 dm³
4008321643940 Shipping carton box
8
366 mm x 366 mm x 286 mm 7890.00 g 38.31 dm³
