COB LED High Bay Lights

COB LED High Bay Lights
COB LED High Bay Lights



Quality COB LED High Bay Light Industrial LED Lighting IP65 60 watt - 300 watt

Power: 60-300W

Voltage: 85-265VAC

Lumens: 4800-30000lm

Color: 3000K/4000K/5000K/6000K

Beam Angle: 45°/90°/120°

Warranty: 60 Months



Product Overview:

COB Bulkhead LED High Bay Lights are a new product to Eneltec. As we are using OSRAM SMD3030 and Bridgelux COB 45mil, MEANWELL LED Driver, 5 years warranty, the cost are much lower. PF>0.95, CRI>80.

Professional design for Heat dissipation module structure, beautiful Appearance and contains the vents, internal & external ventilation, every fin form left to right passthrought convection channel,make 3D three-dimensional heat dissipating, maximum for heat dissipation.

Download the data and know more about our COB LED high bay light.

Eneletec New SMD LED High Bay Lights

SMD LED High Bay Lights

SMD LED High Bay Lights Details

SMD LED High Bay Lights Features

By using the Φ6mm heatpipe, the heat generated by the lighting quickly transfers to the cooling moduleof massive radiation fins, efficiently reduce the temperature of the LED lighting chips and extend thelifespan of the lighting source.

3D Heat Dissipation

Professional heat dissipation structure design. Modular heatsink withperfect structure and inside airflow channels maxim the 3D heatdissipation.

Patented HDT Technology

High efficient heatpipescontact the heat sourcedirectly, maximize theperformance of theheatpipe to reach thecooling effect.

Compressed Fins Technology

Rivet the heatpipe to heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it’s much lighter compared with similar products.

SMD LED High Bay Lights

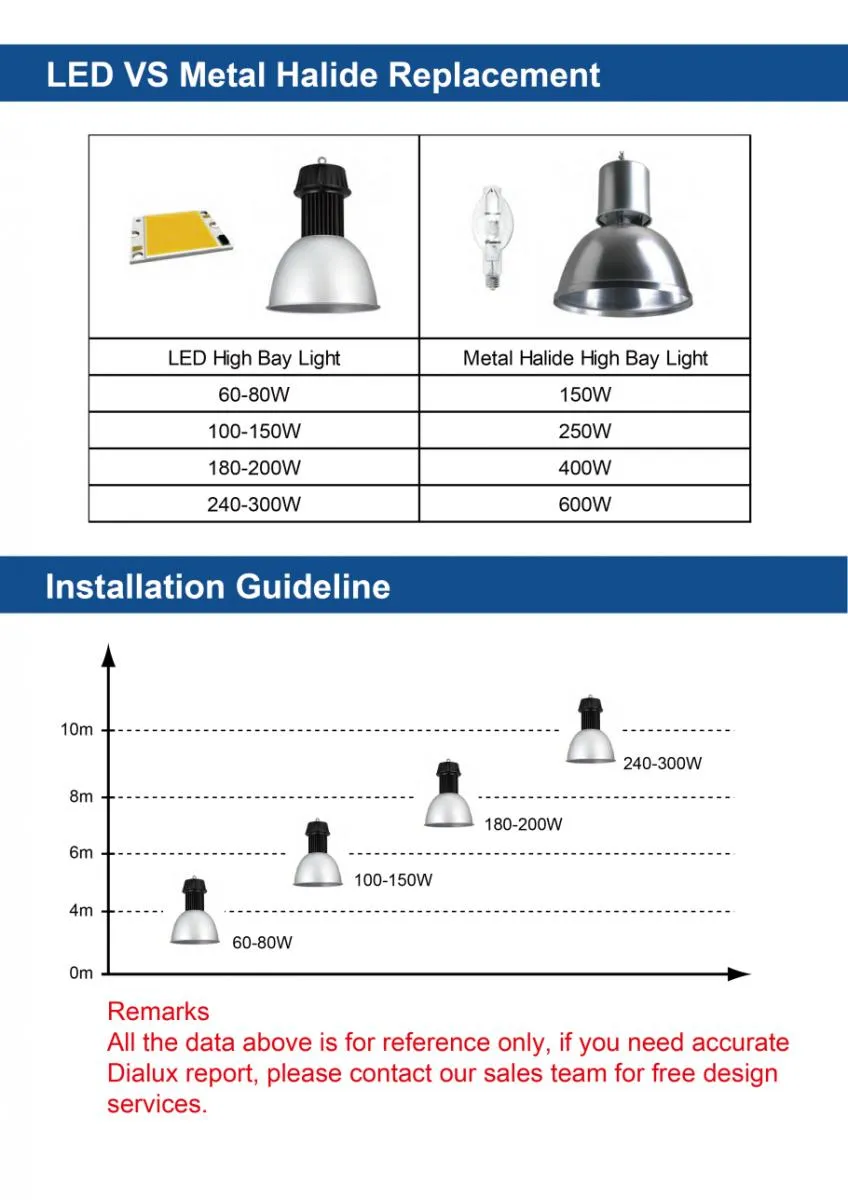

How to install SMD LED High Bay Lights

How to install SMD LED High Bay Lights

Specifications:
No. Pictures Model No. Power
(W)
Lumen
(LM)
Beam
Angle
Input
Voltage
Color
1  COB LED High Bay Lights ENHB-60W-04EC 60 4800 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
2  COB LED High Bay Lights ENHB-60W-04PC 60 6000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
3  COB LED High Bay Lights ENHB-60W-04EM 60 4800 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
4  COB LED High Bay Lights ENHB-60W-04PM 60 6000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
5  COB LED High Bay Lights ENHB-80W-04EC 80 6400 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
6  COB LED High Bay Lights ENHB-80W-04PC 80 8000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
7  COB LED High Bay Lights ENHB-80W-04EM 80 6400 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
8  COB LED High Bay Lights ENHB-80W-04PM 80 8000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
9  COB LED High Bay Lights ENHB-100W-04EC 100 8000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
10  COB LED High Bay Lights ENHB-100W-04PC 100 10000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
11  COB LED High Bay Lights ENHB-100W-04EM 100 8000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
12  COB LED High Bay Lights ENHB-100W-04PM 100 10000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
13  COB LED High Bay Lights ENHB-120W-04EC 120 9600 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
14  COB LED High Bay Lights ENHB-120W-04PC 120 12000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
15  COB LED High Bay Lights ENHB-120W-04EM 120 9600 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
16  COB LED High Bay Lights ENHB-120W-04PM 120 12000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
17  COB LED High Bay Lights ENHB-150W-04EC 150 12000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
18  COB LED High Bay Lights ENHB-150W-04PC 150 15000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
19  COB LED High Bay Lights ENHB-150W-04EM 150 12000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
20  COB LED High Bay Lights ENHB-150W-04PM 150 15000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
21  COB LED High Bay Lights ENHB-180W-04EC 180 14400 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
22  COB LED High Bay Lights ENHB-180W-04PC 180 18000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
23  COB LED High Bay Lights ENHB-180W-04EM 180 14400 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
24  COB LED High Bay Lights ENHB-180W-04PM 180 18000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
25  COB LED High Bay Lights ENHB-200W-04EC 200 16000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
26  COB LED High Bay Lights ENHB-200W-04PC 200 20000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
27  COB LED High Bay Lights ENHB-200W-04EM 200 16000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
28  COB LED High Bay Lights ENHB-200W-04PM 200 20000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
29  COB LED High Bay Lights ENHB-240W-04EC 240 19200 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
30  COB LED High Bay Lights ENHB-240W-04PC 240 24000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
31  COB LED High Bay Lights ENHB-240W-04EM 240 19200 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
32  COB LED High Bay Lights ENHB-240W-04PM 240 24000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
33  COB LED High Bay Lights ENHB-300W-04EC 300 24000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
34  COB LED High Bay Lights ENHB-300W-04PC 300 30000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
35  COB LED High Bay Lights ENHB-300W-04EM 300 24000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
36  COB LED High Bay Lights ENHB-300W-04PM 300 30000 45°/
90°/
120°
85-265VAC 3000K/
4000K/
5000K/
6000K
