Cool white e27 led bulb manufacturer

Cool white e27 led bulb manufacturer

Cool white e27 led bulb manufacturer Specification:

Lamp Power 5W
LED Chipset MCOB
Bean Angle 360 degree
Luminous Flux 500LM
CRI(Ra) Ra>80
CCT 2700-6500K
Work Temperature -20°C to 40 °C
Input voltage: AC85-135V/185-265V
Power Factor >0.80
LED Emitter Life 50,000 hours
LED Lamp Life 35,000 hours
Lamp Base E27/E26/B22
Material Crystal Ceramic+PC
Quality Guarantee 2 Years

Cool white e27 led bulb manufacturer Features:

A. Lifespan: more than 30,000hrs;

B. Indoor use only;

C. Fast lighting bright, no delay and flicker;3W

D. Energy-saving: saving 80% than the traditional lamp;

E. Green and health protection, no pollution, more comfortable for our vision.

F.Higher lumen output, lower wattage consumption.

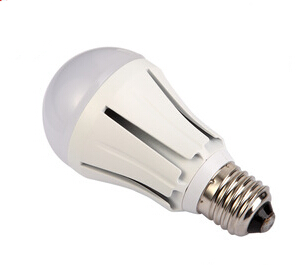

2014 factory price 8w UL led bulb

2014 factory price 8w UL led bulb

2014 factory price 8w UL led bulb Specification:

Input Voltage 90~120V/ 200~240V;50/60Hz
Power 8W
Led Bulb Base E26/E27
Material Aluminus Alloy
LED Chip Epistar
LED QTY 15pcs
CRI 70-90Ra
Beam Angle 160°
Luminous Flux 620~780lm
Color Temperature Warm/Pure/Cool White
Working Temperature -30℃—-50℃
Lifespan 50000h
Warranty 3 years
Dimension(D*H) 60*115mm
8W Led Bulb N.W. 200g
QTY/CTN 50pcs
CTN Size 39*39*31cm

2014 factory price 8w UL led bulb Features:

1) Any interests for the  2014 factory price 8w UL led bulb ,



Your detail inquiry and suggestion will be appreciated ,will reply ASAP



2)For your testing,sample order is available



3)3 years warranty



4)Certifications listed



5)OEM&ODM are available

high lumen 5w Led Lamp e27 Led Bulb

high lumen 5w Led Lamp e27 Led Bulb

high lumen 5w Led Lamp e27 Led Bulb Specification:

Light Source: LED
Item Type: Bulb Lights
LED Light Source: led
Input Voltage(V): AC85-265
Lamp Power(W): 5
Lamp Luminous Flux(lm): 960
Lamp Luminous Efficiency(lm/w): 80
CRI (Ra>): 80
Color Temperature(CCT): Warm White
Working Temperature(℃): -20 – 50
Working Lifetime(Hour): 50000

high lumen 5w Led Lamp e27 Led Bulb Features:

1)long service life: 50000 hours

2)High lighting efficiency,

3).high lumen
4).Certification: CE/ROHS
5).Warranty:2years

Super bright energy saving led bulb

Super bright energy saving led bulb

Super bright energy saving led bulb Specification:

          Lamp Holder                     E27
Material  PC & Aluminum
Usage         home & commercial
Dimension 75*119mm
Working Voltage 180-240V AC
certificates CE
                       Brand Name                GWTEE
Input Voltage AC85-240V
Shape Round
                            CRI                    >75
                 Power Consumption                   10W
Emitting color warm white&cool white
                     Led quantity                  30pcs
Correlated Color Temperature 3000K-6000K
                         Lumens                  620lm

Super bright energy saving led bulb Features:

1.long working lifetime
2.PC & aluminum
4.energy saving
5.high luminous flux

Applications

1. Recessed lighting, shelf lighting, ceiling/wall coves

2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels

Failure COB LED lamps

LED has been globally recognized as a new generation of environmentally friendly high-tech light, its long life, high reliability is to get the majority of consumers. Although from a technical point of view LED chip theoretical life of up 100000H, but because of the package, driving, cooling and other technologies applied to the life of the light source or luminaire for general illumination class can only reach 30000H, there are many on the market even with less than six months the product will be a problem. How to improve the reliability of LED lighting products has also been a business problem to be solved.

Failure COB LED lamps

LED lighting product failure modes can generally be divided into: chip failure, package failure, failure of electrical stress, thermal stress failure, assembly failure. Through the analysis of these phenomena and the failure to improve, we can design and produce high-reliability LED lighting products to help. Based on the COB packaging technology and its application several common reasons for failure are analyzed and described the matter should be paid attention to summarize.

LED lighting products consists of three main components, namely cooling structure, power supply and lighting parts. Illuminated by the light source portion and a secondary optical light components (such as lenses, mirrors, and the diffuser plate) composed of

As LED lighting products in the light part of the core components, is the basis for achieving photovoltaic device performance. The technology is based on a package COB light source, which itself is no longer needed any automatic surface mount process, just to elicit positive and negative welding can be assembled into a simple matrix or lighting. Its important in LED lighting products key components.

These components are, in particular, COB, in most cases, are assembled by hand. This has resulted in the production process is likely to produce more than a potential failure in an automated process.

Based COB LED packaging technology is the multi-chip structure with different string and then wire bonding method to establish an electrical connection between the chip and the substrate, the final package from the use of encapsulants. This structure determines the interior of any single chip COB bad, will result in the remaining surplus chip current load increases, then rising single Vf value, the drive power supply into the output overvoltage condition, the output abnormalities lead flashing until the death of the remaining branches lights. The reason to exclude bad chip itself, in most cases the performance and poor inter-chip key, the key and our conventional single wire bonding into ABCDE five keys, and keys and poor I encountered following in time common reasons.

18w high efficiency Plastic led tube

18w high efficiency Plastic led tube

TUV/ETL/CE/RoHS Approval Top Manufacturer 1200mm 4ft T8 LED Tube  2014 CE TUV 1200mm T8 LED Tube 16W 18W 20W

CE rohs 1200mm t8 led tube  26W 1500MM aluminum t8 led tube lightEpistar SMD3014  factory RoHS CE led tube T8

18w high efficiency Plastic led tube Specifiation:

Length : 60cm / 90cm / 120cm / 150cm as normal standard length.

special customized length is available MOQ 300pcs.

Luminous Flux : 100LM/W ( Milky white cover ) 120-125LM/W ( Clear cover )

Power : 9W-28W available.

Lifetime : 50,000 hours.

Chip : High Brightness,High RA Epistar 2835 chip.

18w high efficiency Plastic led tube Features:

Certification : CE RoHS TUV approved.

Sales volume in 2013 : 500,000pcs

Production ability in 2014 : 60,000pcs per month.

Warranty : 3-5 years,depends on the model you buy.



36W 8 foot LED tubes UL FCC Listed

36W 8 foot LED tubes UL FCC Listed

36W 8 foot LED tubes UL FCC Listed Specification:

Rated Power 30W
Input Voltage 100-277Vac,50-60Hz
LED Quantity 192PCS
Color Temperature 2700k-6500K
Conversion Efficiency 93%
Power Factor 0.98
Beam Angle 120°
Pin Type G13
Dimension 26x2400mm
Diffuser Clear or Frosted PC
Luminous Flux 3300lm±100lm
Illuminance 1m=380lux,2m=135lux,3m=63lux
Operate Temperature -25°C – 55°C
Materials Aluminum alloy & PC
Equal to conventional fluorescent tube 80W+8W (Ballast Power)

36W 8 foot LED tubes UL FCC Listed Features:

1. High Brightness:Taiwan Epistar chip, light efficiency of tube reach to 100lm/w.

2. Super driver:Conversion efficiency above 93% and power factor reach to 98%.

3. Thermal technology:Advanced technology with first class radiator materials.

4. Modular Structure:Modular design,easy assembly and disassembly.

5. Certificate:UL, cUL, CE, FCC, PSE, C Tick approval and RoHS compliant.

6. Warranty: 3 years.

Application:

 Ideal replacement for conventional fluorescent tubes, widely used for office, factory, parking lot, residential, warehouse, signage ,passenger interiors ,supermarket, shop ,vehicle interiors, etc

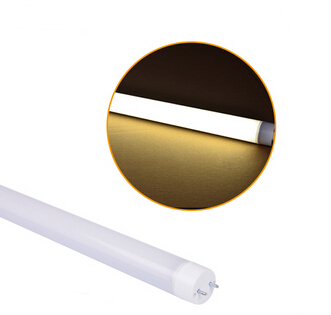

New Technology SMD2835 Epistar TUV LED Tube

New Technology SMD2835 Epistar TUV LED Tube

New Technology SMD2835 Epistar TUV LED Tube Specification:

SIZE(mm) 600/2ft 1200/4ft 1500/5ft
Power(w) 12W 20W 28W
CRI 80 80 80
Efficiency(lm/w) 140 140 140
Lumen(lm) 1650lm 2800lm 3900lm
CCT 2700K-6500K 2700K-6500K 2700K-6500K
LED qty(pcs) 182(SMD2835) 320(SMD2835) 400(SMD2835)
Voltage 200-240VAC 200-240VAC 200-240VAC
Frequency range 47-63HZ 47-63HZ 47-63HZ
Lifespan(Hrs) 50000 50000 50000
Beam angle(°) >130 >130 >130
Dimmension(mm) 26*589 26*1199 26*1498
Material PC cover +Aluminum radiator

New Technology SMD2835 Epistar TUV LED Tube Features:

*  G2.5 is an upgrated version to replace LED tubes,  it has the best configuration of brightness and high luminous efficiency up  to 140lm/W.

*  9 years history of developing LED power supply, make sure a long and safety working time.

*  Clear and milky PC cover for customers.

*  TUV/CE/RoHS approved, meet European standard.

*  We have dimming and non-dimming series for different using environment.

Customers comments about us: “good support, fast response”, “reliable quality, can meet some special requirement…” etc.

Applications:

LED Tubes are widly used in Commercial purposes, Conference&Meeting rooms, Residential Buildings, Home, Office, School, Library, Factory, Supermarkts, Hotels, Casino, Commercial Center, Shopping mall etc.

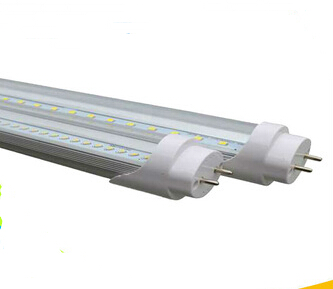

high brightness led tube with 5 years warranty

high brightness led tube with 5 years warranty

high brightness led tube with 5 years warranty Specification:

Consumed power 18W±0.5
Input voltage AC85V-265V,50/64Hz
PF ≥0.93
Efficiency ≥ 90%
LED type 2835
lm/1 LED 26-28lm
LED quantity 96pcs
Lumen 2300lm±100
Luminous efficiency 130 lm/w±10
CCT 2700-3200K, 4000-4500K, 6000-6500K
CRI                                  Ra≥80
Beam angle 160°
lampshade   clear cover,milky cover
Lamp base G13
lifespan ≥ 35,000 hours
Guaranty 3 months exchange guaranteed, 5 years maintenance
Working temperature -35 ~ 55℃
storage temperature -40 ~ 80℃
IP IP44
Certificates CE, & RoHS

high brightness led tube with 5 years warranty Features:

1. SMD2835
2. CE,ROHS,,FCC ,UL
3. 5 years warranty
4. RA>80

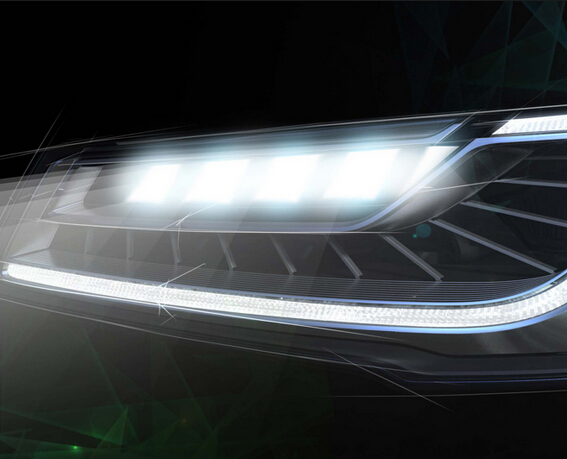

Audi universal LED intelligent headlamps

Then LED headlamps from halogen headlights to xenon headlights, auto headlights also with the application of new technologies constantly updated. Has a “lamp factory,” said the Audi brand, in this regard has been playing a leading pioneer in the trend. Prior to the launch of the new A8L models Audi is the first application of newly developed matrix LED headlamps, a number of intelligent application of technology to become a major highlight of the product. Besides access to information learned after: Audi expected future universal matrix LED headlamps, including A6, A7, TT, R8 and other vehicle models are expected to have facelift.

Audi universal LED intelligent headlamps

Matrix LED headlamps as Audi’s latest technological achievements, has taken the lead on its flagship models equipped A8L, the application of advanced technology, the product has become one of the most major publicity selling point. In addition the technology also will be its first application on a variety of products in the Audi, but because the cost of production and other factors limit the future will be considered, including the Audi A6 / S6, A7 / S7, RS6, RS7, TT, Q5, Q7 and R8 and so on higher-end models use this both the artistic and technological sense matrix LED headlamps will help Audi enhance the market competitiveness of its products.

When driving at night, use high beam irradiation general vehicle in front, while the Audi Matrix LED headlamps can fully dynamic lighting management. Once the light sensor detects the light beam emitted onto or across the front of the vehicle, it will automatically adjust or turn off a few lights LED monomers within the group, so that the front of the vehicle will not be LED lights direct impact highlighted. The user-friendly design can also contribute to vehicle safety.

Audi also increased matrix LED headlamps DynamicdisplaySignal dynamic cornering light technology, the system can control each LED lighting time and monomer sequence. In the new Audi A8L headlights, for example, the yellow LED turn signal composed by multiple groups, when lit from less to more continuous change, lit the interval between each LED is 20 milliseconds, can dynamically display steering direction, both the artistic and technological sense, but also improve the warning effect.

For pedestrian protection, the matrix LED headlamps also sets the number of stars for pedestrians ‘protection’ lamps. When the Night View Assist camera to detect pedestrians in front or animals, “protection” lamps will automatically send three strobe light to warn drivers and pedestrians of potential danger, and reduce the probability of accidents at night. This flashing is very humane, and not the way until the human eye, but can only shine on the place of the head or less.

In order to allow the driver to control the way information is clearly at night, Audi Matrix LED headlamps can use information from the navigation system to achieve at the corners, junctions and other conditions more specific auxiliary lighting. In actual driving conditions, for example, the Audi brand new matrix headlights illuminate traveling in the road, it is also able to automatically detect the roads prompt information such as speed limits, cut the line, cornering and other signs, a separate projection light, to cause the driver watch out.
