50W High Power Waterproof solar LED street light

50W High Power Waterproof solar LED street light

It has 50-300W models, fully capable for most of the street lighting situations. With IP65 protection, 5 years warranty and high quality CREE chip for our LED Lamp, we strongly believe our led street light is providing excellent performance and reliability to the customers it served.

50W High Power Waterproof solar LED street light Specification:

LED Power 50W LED street Light
LED chip CREE
Driver Meanwell
Operating Voltage 90-305V AC
Power Factor(PF) >0.9
Power Supply Efficiency >90%
Luminous 5000-5400LM
Color Rendering Index(CRI) >75
Color Temperature 3000k-6500k
 IP rating IP65
 Warranty 5 years
 Application parking lot light,courtyard light,highway road

Features:

1.50W-300W
2.Cree chips, Meanwel Driver
3. 5 Years Warranty, IP65

50W High Power Waterproof solar LED street light

New Design 200W CREE Street Light

New Design 200W CREE Street Light

New Design 200W CREE Street Light Specification:

Working Voltage AC85-265V
Power 200W
Equivalent 800W High Pressure Sodium Lamp
Lamp Flux 10800lm-12000lm
Driver Brand Meanwell  HLG-240H-42
Power Factor 0.97
Light Source Original CREE LED From American
LED Luminous Efficiency ≥90LM/W
Drive Power Efficiency ≥95%
Luminous Efficiency ≥90%
Housing material Aluminum Alloy and ASA industrial plastic
Light Angle Horizontal Axis:120degree , Vertical Axis:60 dgree
Color Temperature Warm white:2800K-3200K
Pure white:4000K-4500K
Cool white:6000K-6500K
Color-Rendering Index Ra≥80
Working Temperature -20centidgree – +40centidegree
Product Size 693x315x204mm
Suggestion Optimum Height 7-8m
Protection Grade IP65
Using Life >50,000h

Features:

1.led streetlight Adopting aluminum alloy casing, well heat elimination, heat dissipation and impact resistance reliable and novelty structure.

2.Light source adopt high power LED lamp combination modular design,  waterproof, dustproof and equipped with reflective glass by optimization, by which can effectively control the scope of optical, improving the evenness of lighting,

3.Cold light source and excellent color rendering  No harmful and green lamp

4.Flexible and convenient installation, is widely used in  Street , highway other places.

5.Professional packaging technology for safe delivery;

6.Convenient maintenance. Customers can repair and replace fixture by the guidebook based on product specifications;

7.Single powerful LED as the light source; imported high bright semiconductor chips;

8.ensures long life-span of driver and LED;

9. Heat sink made from diecast aluminum alloy for heat dissipation effectively. And it’s specially treated for resistance to ultraviolet and corrosion;

10. No adverse glare or flicker, which eliminates vision fatigue and distraction for good light distribution;

11. No delay start. It can reach its normal light as soon as it is turned on, avoiding the long-time start process of the traditional light;

12. Green and Environmental Protection: no lead, no mercury, no environmental pollution.

110lm per watt CREE LED Street Light

110lm per watt CREE LED Street Light

110lm per watt CREE LED Street Light Specification:

Total Lumen(lm) 8,000 12,000 16,000 18,000
Efficiency(lm/W) 100lm/W 100lm/W 100lm/W 100lm/W
CCT(K) 2700K-6500K
CRI(Ra) >75 >75 >75 >75
Power factor >0.95 >0.95 >0.95 >0.95
Frequency(Hz) 50/60 50/60 50/60 50/60
Bean Angle(degree) 65/145 65/145 65/145 65/145
LED Chips Cree SMD3535 Cree SMD3535 Cree SMD3535 Cree SMD3535
Working Temp(°c) -40-+50 -40-+50 -40-+50 -40-+50
Storage Temp(°c) -50- +80 -50- +80 -50- +80 -50- +80
Certificate CE ,RoHS,SAA CE ,RoHS,SAA CE ,RoHS,SAA CE ,RoHS,SAA
N.W(kg) 5.3kg 7.6kg 9.2kg 11.2kg
G.W(kg) 6.9kg 8.2kg 10.6kg 13kg

Features:

1. Super slim appearance, The heat dissipation are excellent

2. Top brand CREE LED chips from USA

3. High Efficiency, the efficiency is up to 110lm/W

4. Large project experience, our clients from France have purchased more than 10000pcs from us in 2013 years/

5. Good after sale service.

China manufacturer 60W LED street light with 3 years warranty

China manufacturer 60W LED street light with 3 years warranty

China manufacturer 60W LED street light with 3 years warranty Specification:

LED Power

60W

90W

120W

150W

180W

Input Voltage

AC85-265V, DC24V

Output Voltage

12-48V

LED Chip

Bridgelux 50mil leds

Output Current

2.65A

LED luminous efficiency

>120lm/W

Housing Material

Aluminum Alloy

Power Factor

>0.95

Lamp’s Efficiency

>90%

CRI (color rendering index)

>75%

THD

<15%

Guard Level

IP67

Service Lifespan

50,000hrs

Light Distribution Curve/Beam Pattern

Bat Wing / Rectangular Beam

Beam Angle

horizontal 130°, vertical 70°

Color Temperature

3000-4000K (WW);  5000-6500K (CW)

Working Temperature

-30°C ~ +50°C

Application:

1.street lighting
2.park lighting
3.roadway lighting
4.fence lighting
5.pathway lighting
6.campus lighting
7.ramp lighting
8.boat dock lighting
9.sidewalk lighting
10.remote area lighting
11.private road lighting
12.farm & ranch lighting

Research institutes are optimistic about the future global LED lighting market

The global lighting market revenue of 2020 is expected to grow to $ 150 billion (89.1 billion pounds), most of the growth will come from LED lighting, which will rise to 53.5 billion pounds (about 561 billion yuan), LED is expected to account for 60% of market share in 2020 lighting and lighting costs will be in accordance decline in the proportion of 30% per year until 2020.

Research institutes are optimistic about the future global LED lighting market

In addition, the market research firm Transparency Market Research (TMR) released the report, said the smart lighting market in 2020 is expected to be worth 33.23 billion pounds (348.9 billion yuan). And predicted that from 2013 to 2029 LED lighting market growth rate of over 30%. And Europe will lead the world LED market, in 2012 the global LED lighting market, accounting for 33.1% share of Europe is the largest market. TMR put this growth is attributed to strong government measures such as the ban on incandescent many countries, such as Britain, Germany, Denmark and Russia are at the forefront of Europe, there is a strong focus on the deployment of efficient lighting in order to improve the quality of and lower overall operating costs.

TMR said that in 2012 the largest commercial application of LED lighting end-users account for 52.5% of the entire market. TMR is expected throughout the forecast period, due to the application of new business applications to join the Asia-Pacific and the Middle East will maintain its leading position. Construction industry is the second largest application areas, and is expected to continue to grow. Application in the construction of Japan and Europe is the fastest growing region. The report concluded that a wide range of applications in the construction sector benefited from the decorative and functional lighting increases in the landscape, signs, sculptures and use of the column.

2014 hot selling 12w led downlight

2014 hot selling 12w led downlight

2014 hot selling 12w led downlight Specification:

Input Voltage AC85V-265V Life Time 50000h
Lamp Luminous Flux 90-100lm Power 12w
Lamp Luminous Efficiency 80lm/w Frequency 50/60HZ
Color Temperature 2700k-7500k Operating Temperature

-20 to 85°C
WW Ra80 Lens PC
shape round Color milk white
Certification CE&RoHS&UL Warranty 3 years

2014 hot selling 12w led downlight

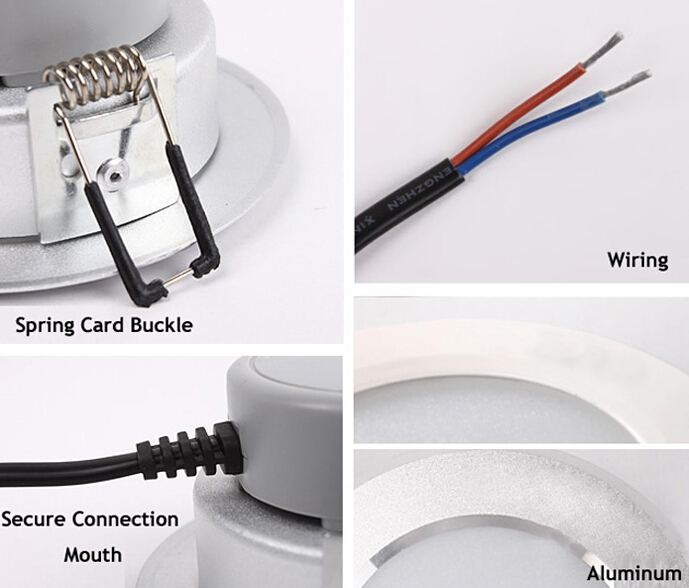

Features:

-High Energy-Efficient:only 80% power consumption of halogenlamp and incandescent lamp.
-Wide voltage design available
-Environmental Friendly;no mercury or other hamrful materials.
-No fickering &RF interference,No buzzing noise,instant soft start,and low heat.
-High shock/vibration resistant.

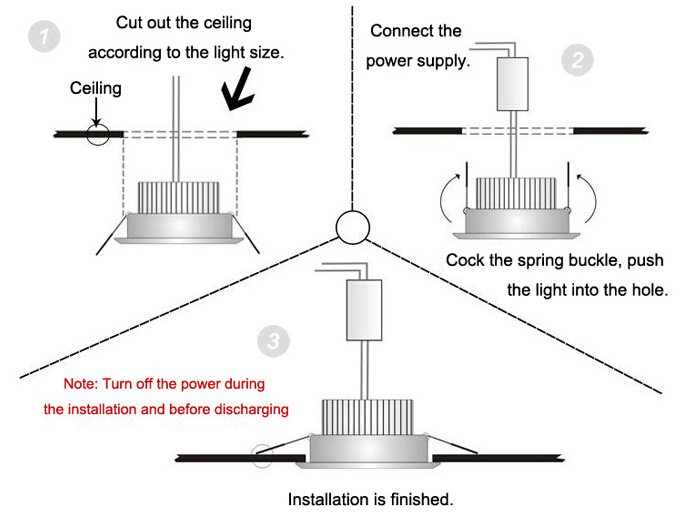

Installation:

2014 hot selling 12w led downlight

Competitive non-dimmable 3W cob LED downlight low price

Competitive non-dimmable 3W cob LED downlight low price

Competitive non-dimmable 3W cob LED downlight low price Specification:

LED Power

3W

LED Quantity

1 pc

Lumens

270lm

Input Voltage

AC85-260V

Color Temperature

3000-6500K

Beam Angle

60 degree

Material

Aluminum

Diameter

90mm

Hole Size

75mm

Lifespan

50,000 hours

CRI

Ra >80

LED Chip

Epileds LED chip

Warranty

2 years

Features:

1. Embedded energy-saving luminaries, power source are attached

2. High-purity aluminum lamp housing, Epileds LED chip

3. Excellent lamp holder and connector, pursue a detail perfect

4. no noise, no flicker; no ultraviolet or infrared light beam, mercury-free

5. Advanced constant current driver, professional thermal management

 Installation Instruction:

Competitive non-dimmable 3W cob LED downlight low price

Home decoration surface mounted 12w smd led downlight

Home decoration surface mounted 12w smd led downlight

Home decoration surface mounted 12w smd led downlight Specification:

Watt 12W
Minimum lighting distance 0.5 meter
Input Voltage AC100-220V
LED Manufacture SMD
Operating Temperature -20-35 degree
LED Lamp Life<Hour> >50,000 hours
Relevant Certificate CE, RoHS,EMC
Warranty 5 years
Light Color White:3000k,4000k,6000k
Beam Angle<Degree> 30 degrees
Color Temperature Warm white 2700-3000K
Neutral White 4000-4300K
Cool White 5700-6000K
Light Type LED recessed downlight
Housing Material Pure aluminum

Home decoration surface mounted 12w smd led downlight

Features:

1. High lumens, High brightness.

2. Longevity service with minimal maintenance

3. Low power consumption, high intensity, low lumen attenuation.

4. Optimized heat sink design to ensure a excellent heat dissipation system.

5. Easy installation and ultra energy efficient, can directly replace incandescent/halogen lamp.

Good quality 5W Aluminum COB square led downlight

Good quality 5W Aluminum COB square led downlight

Good quality 5W Aluminum COB square led downlight Specification:

Item No Voltage(V) Lumen(LM) Color Temp Lamp Size(MM) Life Time(Hrs) PCS/CTN
3W 85-265V 270-300 3000K-6500K 100*65 30000H 100PCS
5W 85-265V 450-480 3000K-6500K 110*45 30000H 100PCS

Features:

1.Strict quality control
2.Long life span ,low cost of maintenance.
3.Quantity of LED can design as per client requirement.
4.High lumen led chip 10-12lm/pcs or 12-14lm/pcs on your option.
5.High power ,high brightness,high quality,high efficiency,up to 80% energy saving.
6.Instant start, no warm up time required, no noise, no flickering, protect your eyes;

 Good quality 5W Aluminum COB square led downlight

Good quality 5W Aluminum COB square led downlight

Looking LED lighting system solutions

If all of the electronic components and applications can be a perfect match, then the development of the semiconductor light source will be unlimited potential. On the Light + Building exhibition in Frankfurt, Germany LED lighting systems and components can provide a complete lighting solution for many applications.

Looking LED lighting system solutions

Continuously improve luminous efficiency, brightness continued to improve, the quality of light is becoming more perfect, these factors make LED lighting to become a professional lighting market choice for harsh. Due to the number and type of applications increased, the LED light source and related systems are increasingly high requirements. Market needs complete and reliable lighting solutions. Optical, electronic and mechanical components must be highly matched, including the cooling system, including the only way to ensure long-term stability of LED lighting solutions provide high-quality light effects.

　　LED modules and drivers combined to meet various needs

LED solutions include: all kinds of LED modules, LED drivers, emergency lighting systems, and lighting control systems. Broad product portfolio to meet the needs of a variety of end-use applications. Just one LED module, choose matching drives and cables can be for you to create a perfect LED light engines. As a core component of all lamps, LED light engine ensures a stable and high-quality optical efficiency throughout its life. More than 80 or even 90 or lower MacAdam 3 standard color tolerance (otherwise MacAdam 2 options) CRI greater value (CRI) and reached the LED module presents a uniform high quality white light.

　　Adjustable white – comfortable soft white

Under normal circumstances, the normal color temperature is 3000K white and 4000K; while for adjustable white (latest LLE module), white light can be flexibly adjusted in the range of 3000-6000K’s. This means that it can simulate natural lighting weather changes, enhance the efficiency of the body’s comfort and employees. This is not only very suitable for offices and schools, but also for hospitals and other health care facilities.

　　High-end custom white

Designed for exhibitions, shows and retail industry developed high-end series LED solutions have multiple versions. With full spectrum technology “ART” version of the drive spotlights and downlights with up to 98 color rendering index, the audience is like viewing artwork in natural light. Garment industry in particular favor with special spectroscopic techniques “FASHION” version. The bright white color to highlight their own clothing, and get rid of the previous emphasis on the yellow color temperature.
