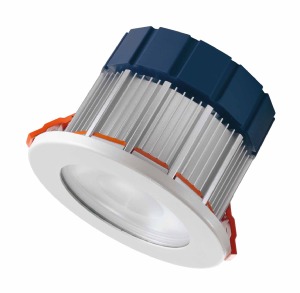

LDV DOWNLIGHT L 840 L60 WT – Recessed luminaires – Indoor LED luminaires

LDV DOWNLIGHT L 840 L60 WT - Recessed luminaires - Indoor LED luminaires
LDV DOWNLIGHT L 840 L60 WT - Recessed luminaires - Indoor LED luminaires



Electrical data
Operating mode Electronic control gear (ECG)
Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50 Hz/60 Hz
Nominal current 0.09 A
Light technical data
Color temperature 4000 K
Beam angle 60 °
Dimensions & weight
Length 140.0 mm
Width 140.0 mm
Diameter 140.0 mm
Height 102.0 mm
Colors & materials
Body material Aluminum
Product color White
Additional product data
Number of lighting outlets 1
Equipment LED OSLON
Capabilities
Type of installation Recessed mounting
Adjustable No
Type of connection Connector
Certificates & standards
Glow Wire Test according to IEC 695-2-1 960 °C
Protection class II
Type of protection IP21

Entrance lighting
Accessories
LEDVANCE DOWNLIGHT
LEDVANCE DOWNLIGHT L

Zoom in
Zoom out
Resize
Product benefits
Sustainable product with an excellent energy balance
Elegant design
Energy-saving recessed luminaire
Compact dimensions and excellent photometric properties
Shallow mounting depth
Areas of application
Compatible with standard suspended ceilings
Replacement for downlight applications of compact fluorescent lamps
Product features
Color temperature.8 MB
pdf
Installation guide
Mounting instructions pdf 780.000 h
Ring colors in white matt or anodized aluminum
Also available in a dimmable version
Equipment / Accessories
Opaque cover for a glare-free illumination
Decorative ring made of anodized aluminum Reduce text
Product benefits
Sustainable product with an excellent energy balance
Elegant design
Energy-saving recessed luminaire
Compact dimensions and excellent photometric properties
Shallow mounting depth
Areas of application
Compatible with standard suspended ceilings
Replacement for downlight applications of compact fluorescent lamps
Product features
Color temperature, 3. important data at a glance
830 L60 WT
830 L100 WT
840 L60 WT
840 L100 WT
930 L60 DALI WT
930 L100 DALI WT
840 L60 DALI WT
840 L100 DALI WT
