adhesive tape or srews
Through-wiring or connection via distributor

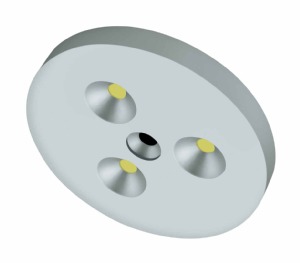

Small and slim LED downlight in round shape
:000 K
High-quality aluminum casing
Switch integrated in the power cable
Type of mounting, 3:Product benefits
Particularly compact
High brightness thanks to LED technology
Quick and simple installation (Plug & Light)
High flexibility in various applications
Areas of application
Shelves
Glass cabinets
Kitchens
Product features
Color temperature
Electrical data
| Nominal wattage |
6.80 W |
| Nominal voltage |
220…240 V |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
100 ° |
| Luminous flux |
120 lm |
| Color rendering index Ra |
75 |
Dimensions & weight
| Length |
56.0 mm |
| Width |
56.0 mm |
| Diameter |
58.0 mm |
| Height |
8.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
Silver |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
9 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| New article |
NEW |
Capabilities
| Type of installation |
Mounting |
| Adjustable |
No |
| Dimmable |
No |
| With on/off switch |
Yes |
| Type of connection |
Transformer |
| Accessories |
Adhesive foil |
Certificates & standards
| Standards |
CE |
| Protection class |
III |
| Type of protection |
IP20 |
| Protection against ignition and fire |
MM |
Country specific categorizations
| Order reference |
73142 |
000 K
High-quality aluminum casing
Switch integrated in the power cable
Type of mounting. OSRAM GmbH.
