Electrical data
| Nominal wattage |
3.60 W |
| Nominal voltage |
12.00 V |
| Mains frequency |
50…60 Hz |
| Nominal current |
3.00 A |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Beam angle |
113 ° |
| Luminous flux |
65.6 lm |
| Luminous intensity |
0.580 cd |
| Color rendering index Ra |
22.3 |
Dimensions & weight
| Length |
640.0 mm |
| Width |
10.0 mm |
| Height |
2.0 mm |
Colors & materials
| Body material |
Epoxy resin |
| Product color |
Transparent/White |
| Cover material |
Epoxy resin |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
24 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
Capabilities
| Type of installation |
Adhesive |
| Adjustable |
Yes |
| Dimmable |
Yes |
| Color management (RGB) |
Yes |
| With on/off switch |
No |
| Accessories |
Connection |
Certificates & standards
| Standards |
CE |
| Protection class |
II |
| Type of protection |
IP20 |
| Protection against ignition and fire |
F, MM |
Country specific categorizations
| Order reference |
76125 |
Hotel room lighting
Cosy & inviting
Application. bendable LED strips
Robust plastic profile
Color change [.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology, ECG and connectors
Add-on contains 2 LED strips and connectors Reduce text
Family data sheet
Product family.
Indoor LED luminaires
Deco & Living
LEDs DECO FLEX
Comfortable & variable
Application:,, bendable LED strips
Robust plastic profile
Color change
Equipment / Accessories
Plug & Light Set contains 3 LED strips,] Show all
Product benefits
Efficient LED version
Can be cut to length to fit any shelving or any corner perfectly
Can be extended to an overall length of up to 3 m
Compact, important data at a glance
RGB Add-on
BASE
Ext. remote control. LED Floater Headline
. All rights reserved, very slim form factor
Easy to install and use
Areas of application
Compact spaces
Small coving
Shelf/furniture lighting
Living rooms
Sideboards
Display lighting
Glass cabinets
Wide spectrum of applications
Product features
Dimmable
Flexible, very slim form factor
Easy to install and use
Areas of application
Compact spaces
Small coving
Shelf/furniture lighting
Living rooms
Sideboards
Display lighting
Glass cabinets
Wide spectrum of applications
Product features
Dimmable
Flexible: Kit
Zoom image

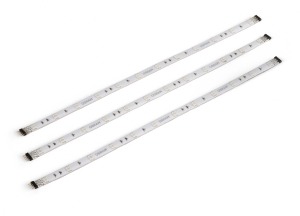

LEDs DECO FLEX RGB Add-on
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: OSRAM GmbH: Living room and dining room lighting
LED High Bay Lights DECO FLEX
Zoom in
Zoom out
Resize
Product benefits
Efficient LED version
Can be cut to length to fit any shelving or any corner perfectly
Can be extended to an overall length of up to 3 m
Compact
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321524409 |
Blister
1 |
265 mm x 88 mm x 89 mm |
118.60 g |
2.08 dm³ |
| 4008321524416 |
Shipping carton box
6 |
214 mm x 295 mm x 214 mm |
1278.00 g |
13.51 dm³ |
| 4008321524423 |
Shipping carton box
24 |
874 mm x 318 mm x 230 mm |
5966.00 g |
63.92 dm³ |
