| Nominal wattage | 72.00 W |
|---|---|
| Type of current | DC |
| Voltage Range | 23…25 V |
| Beam angle | 120 ° |
|---|---|
| Color temperature | 5400 K |
| Luminous flux | 2715 lm |
| Light color as per EN 12464-1 | Daylight |
| Light color LED | white |
| Color rendering index Ra | › 80 |
| Lifespan | 50000 h |
|---|
| Number of LEDs per module | 495 |
|---|
| Dimmable | Yes |
|---|
| Standards | acc. to 2004/108/EC |
|---|
| Marketing product family | LF05A |
|---|
important data at a glance
Product video
-W3F-830
-B3
-W3F-840
-W3F-854
-W3F-827
-W3F-827
-W3F-830
-W3F-840
-W3F-850
-W3F-865
Scroll to left
Scroll to right
Zoom image
LF05A -W3F-854
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel STK number
4008321546586 OSRLF05AW3F854 4031346
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Modules
Flexible LED modules

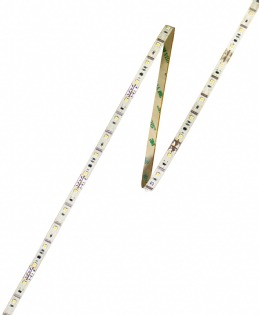

LINEARlight FLEX ADVANCED
LINEARlight FLEX ADVANCED
Zoom in
Zoom out
Resize
Product benefits
Very long for seamless bands of light
Large selection of light colors
Low profile
Product features
Flexible and cuttable LED strip
Module efficacy. LED Floater Headline
, up to 88 lm/W
Dimmable
Fine White
Family data sheet
Product family: All rights reserved: OSRAM GmbH:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – G24 LED technology
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321546586 | Folding carton box 1 |
353 mm x 37 mm x 349 mm | 554.50 g | 4.56 dm³ |
| 4008321546593 | Shipping carton box 8 |
366 mm x 367 mm x 289 mm | 4822.00 g | 38.82 dm³ |
