| Nominal wattage | 58.00 W |
|---|---|
| Reverse Voltage | 25 V |
| Type of current | DC |
| Voltage Range | 23…25 V |
| Beam angle | 120 ° |
|---|---|
| Color temperature | 3000 K |
| Luminous flux | 4680 lm |
| Light color as per EN 12464-1 | Warm White |
| Light color LED | white |
| Color rendering index Ra | › 85 |
| Length | 6000.0 mm |
|---|---|
| Width | 8.0 mm |
| Height | 2.1 mm |
| Length – LED module | 6000.0 mm |
| Lifespan | 50000 h |
|---|
| Number of LEDs per module | 720 |
|---|
| Dimmable | Yes |
|---|
| Marketing product family | LF06S |
|---|
up to 840 lm/m
Module efficacy.
Eye-catchingly attractive
Application.
Modules
Flexible LED modules
LINEARlight FLEX ShortPitch,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology: OSRAM GmbH: up to 88 lm/W
Salt mist proof
Family data sheet
Product family:: All rights reserved. Shop window lighting

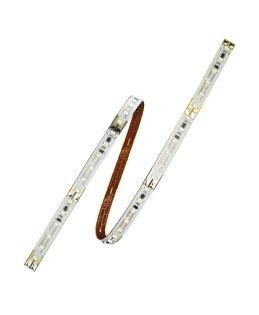

LINEARlight FLEX ShortPitch
Zoom in
Zoom out
Resize
Product benefits
Very small G24 LED spacing
Product features
Flexible LED strip
Luminous flux.. important data at a glance
Product video
-W3F-827
-W3F-830
-W3F-840
-W3F-850
-W3F-865
Zoom image
LF06S -W3F-830
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321973894 7459405 4030064
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: LED Floater Headline
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321973894 | Folding carton box 1 |
184 mm x 31 mm x 184 mm | 166.93 g | 1.05 dm³ |
| 4008321973948 | Shipping carton box 8 |
241 mm x 195 mm x 205 mm | 1697.00 g | 9.63 dm³ |
