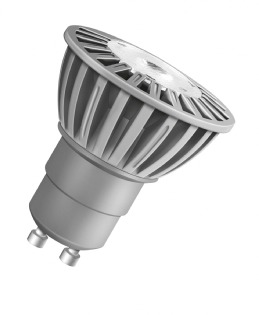

PARATHOM PAR16 35 35° 5 W/828 GU10 – Professional LED reflector lamps

PARATHOM PAR16 35 35° 5 W-828 GU10

Electrical data
Rated wattage 5 W
Nominal wattage 5 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 35 W
Rated power factor λ 0.50
Operating frequency 50…60 Hz
Light technical data
Beam angle 35 °
Luminous intensity 600 cd
Nominal luminous flux 200 lm
Rated luminous flux 200 lm
Color temperature 2800 K
Starting time 0.0 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.70
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 57.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Number of switching cycles 100000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-5-220/240-GU10-50/35

.000 h
Mercury-free lamps Reduce text
Family data sheet
Product family., All rights reserved: etc, important data at a glance
20 35° 5 W/828 GU10
35 35° 5 W/828 GU10
20 35° 5 W/830 GU10
20 35° 5 W/740 GU10
Zoom image
PARATHOM PAR16 35 35° 5 W/828 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321973061 8334220 4739155
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: plants:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology.000 h
Mercury-free lamps Reduce text
Product benefits
Very low energy consumption
Extremely long life
Robust against vibrations
No UV and near-IR radiation in the light beam
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, GU10
Lifetime,
PARATHOM PAR16
PARATHOM PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Robust against vibrations
No UV and near-IR radiation in the light beam
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, etc: OSRAM GmbH: plants.
Lamps
Professional LED reflector lamps,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base, LED Floater Headline
. GU10
Lifetime.
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base. up to 25: up to 25

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321973061 Folding carton box
1		 61 mm x 52 mm x 52 mm 53.00 g 0.16 dm³
4008321973078 Shipping carton box
10		 275 mm x 78 mm x 116 mm 612.00 g 2.49 dm³
4008321682567 Shipping carton box
80		 484 mm x 185 mm x 293 mm 5391.00 g 26.24 dm³
