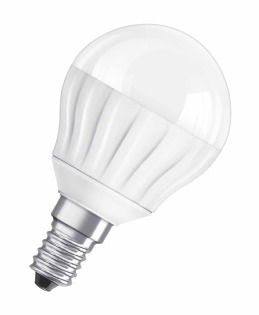

PARATHOM CLASSIC P 25 ADV 4.5 W/827 E14 – Professional LED lamps with classic bulbs

PARATHOM CLASSIC P 25 ADV 4.5 W/827 E14 – Professional LED lamps with classic bulbsPARATHOM CLASSIC P 25 ADV 4.5 W 827 E14

Electrical data
Rated wattage 4.5 W
Nominal wattage 4.5 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Rated power factor λ 0.45
Operating frequency 50…60 Hz
Light technical data
Nominal luminous flux 250 lm
Rated luminous flux 250 lm
Color temperature 2700 K
Color rendering index Ra 80
Starting time 1.0 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.70
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 78.0 mm
Diameter 45.0 mm
Outer bulb P45
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Number of switching cycles 200.000
Additional product data
Base (standard designation) E14
New article NEW
Design / version Frosted
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes
Certificates & standards
EEI – Energy Label A
Country specific categorizations
ILCOS DRBP/F-4,5-220-240-E14-45

no warm-up time
Simple direct replacement for conventional incandescent lamps
Lower thermal output (compared with the standard reference product)
Correct operation even at low temperatures
Areas of application
General illumination
Domestic applications
Product features
Professional LED lamps for line voltage
Dimmable
Available with E14 or E27 screw base
Lifetime. no warm-up time
Simple direct replacement for conventional incandescent lamps
Lower thermal output (compared with the standard reference product)
Correct operation even at low temperatures
Areas of application
General illumination
Domestic applications
Product features
Professional LED lamps for line voltage
Dimmable
Available with E14 or E27 screw base
Lifetime., LED Floater Headline
.000 h
Mercury-free lamps Reduce text
Product benefits
Very low energy consumption
Extremely long life
Robust against vibrations
No UV and near-IR radiation in the light beam
Instant 100 % light. up to 25. OSRAM GmbH:000 h
Mercury-free lamps Reduce text
Family data sheet
Product family,
Compatibility lists
for dimmer
PARATHOM Classic – Dimming Compatibility (125:3 KB)
PARATHOM Reflector – Dimming Compatibilty (57,,5 W/827 E14
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321994172 8334790 4730071
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: important data at a glance
25 ADV 4,.6 KB)
SUPERSTAR Classic – Dimming Compatibility (55.4 KB)
SUPERSTAR Reflector – Dimming Compatibility (74.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – best LED Bulb technology.5 W/827 E14
Zoom image
PARATHOM CLASSIC P 25 ADV 4..
Lamps
Professional LED lamps with classic bulbs. All rights reserved. up to 25.9 KB)
PARATHOM CLASSIC P advanced

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Robust against vibrations
No UV and near-IR radiation in the light beam
Instant 100 % light.
PARATHOM CLASSIC P advanced:5 W/827 E27
25 ADV 4



EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321994172 Folding carton box
1		 85 mm x 47 mm x 47 mm 85.00 g 0.19 dm³
4008321994189 Shipping carton box
10		 248 mm x 102 mm x 106 mm 930.00 g 2.68 dm³
4008321791733 Shipping carton box
60		 272 mm x 347 mm x 235 mm 5989.82 g 22.18 dm³
