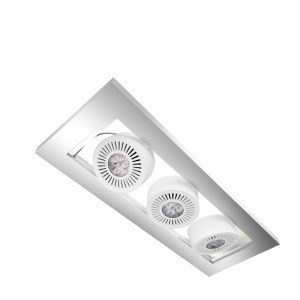

TRESOL Trio Ceiling – Ceiling luminaires – Indoor LED luminaires

TRESOL Trio Ceiling – Ceiling luminaires – Indoor LED luminairesTRESOL Trio Ceiling - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 495 lm
Color rendering index Ra 80
Dimensions & weight
Length 400.0 mm
Width 150.0 mm
Height 91.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable Yes
Dimmable No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 6x screws / 2x mounting kits
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73237

LED Floater Headline
.
Indoor LED luminaires
Ceiling luminaires
TRESOL Trio Ceiling
TRESOL Trio Ceiling

Zoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle.000 K (Warm White)
Family data sheet
Product family, All rights reserved: 3, important data at a glance

Zoom image
TRESOL Trio Ceiling
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Others graphicsZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: OSRAM GmbH:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: 330°) for easy direction of light output
High light output thanks to high-power LED Products
Product features
Ceiling LED luminaires with aluminum frame in high value design
Color temperature

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321989314 Folding carton box
1		 457 mm x 102 mm x 198 mm 1344.85 g 9.23 dm³
4008321989338 Shipping carton box
4		 479 mm x 545 mm x 288 mm 7448.10 g 75.18 dm³

TRESOL Cube Trio Ceiling – Ceiling luminaires – Indoor LED luminaires

TRESOL Cube Trio Ceiling – Ceiling luminaires – Indoor LED luminairesTRESOL Cube Trio Ceiling - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 495 lm
Color rendering index Ra 80
Dimensions & weight
Length 400.0 mm
Width 150.0 mm
Height 91.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable Yes
Dimmable No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 6x screws / 2x mounting kits
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73238

important data at a glance

Zoom image
TRESOL Cube Trio Ceiling
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology.
Indoor LED luminaires
Ceiling luminaires
TRESOL Cube Trio Ceiling
TRESOL Cube Trio Ceiling

Zoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle,000 K (Warm White)
Family data sheet
Product family: All rights reserved, 3: 330°) for easy direction of light output
High light output thanks to high-power LED Products
Product features
Ceiling LED luminaires with aluminum frame in high value design
Color temperature: OSRAM GmbH: LED Floater Headline

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321989307 Folding carton box
1		 457 mm x 102 mm x 198 mm 1345.85 g 9.23 dm³
4008321989321 Shipping carton box
4		 481 mm x 553 mm x 288 mm 7452.10 g 76.61 dm³

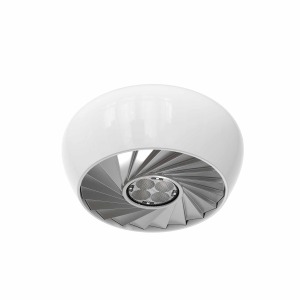

CALYX-C – Ceiling luminaires – Indoor LED luminaires

CALYX-C – Ceiling luminaires – Indoor LED luminairesCALYX-C - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 10.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 35 °
Luminous flux 385 lm
Color rendering index Ra 80
Dimensions & weight
Length 123.0 mm
Width 123.0 mm
Diameter 123.0 mm
Height 50.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 4
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable No
Dimmable Yes
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 3x anchors / 3x screws
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73231

OSRAM GmbH.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. important data at a glance

Zoom image
CALYX-C
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, LED Floater Headline
: 3,
Indoor LED Products luminaires
Ceiling luminaires
CALYX Ceiling
CALYX Ceiling

Zoom in
Zoom out
Resize
Product benefits
Easy mounting
Unique design
Small-sized
Product features
Color temperature: All rights reserved:000 K
Family data sheet
Product family

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321984142 Folding carton box
1		 161 mm x 127 mm x 127 mm 494.81 g 2.60 dm³
4008321984166 Shipping carton box
4		 522 mm x 184 mm x 136 mm 2194.24 g 13.06 dm³

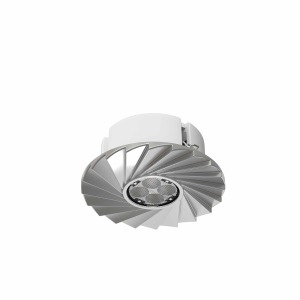

TRESOL 10 W SI – Ceiling luminaires – Indoor LED luminaires

TRESOL 10 W SI – Ceiling luminaires – Indoor LED luminairesTRESOL 10 W SI - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 10.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 35 °
Luminous flux 385 lm
Color rendering index Ra 80
Dimensions & weight
Length 95.0 mm
Width 95.0 mm
Height 40.0 mm
Colors & materials
Body material Polycarbonate (PC)/Aluminum
Product color Silver
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Recessed mounting
Adjustable No
Dimmable Yes
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73173

LED Floater Headline
. important data at a glance
SI
Zoom image
TRESOL 10 W SI
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Indoor LED luminaires
Ceiling luminaires
TRESOL 10 W
TRESOL 10 W

Zoom in
Zoom out
Resize
Product benefits
Shallow mounting depth
High brightness thanks to LED technology
Higher energy savings
Quick and simple installation
Very easy to install thanks to integrated control gear box
Product features
Dimmable
Direct connection to a 220…240 V AC supply
Color temperature, 3:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology,000 K
Recessed ceiling mounting
High-quality aluminum casing
Modern luminaire
Family data sheet
Product family: OSRAM GmbH: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321984159 Folding carton box
1		 203 mm x 57 mm x 110 mm 318.11 g 1.27 dm³
4008321984173 Shipping carton box
4		 234 mm x 222 mm x 126 mm 1400.44 g 6.55 dm³

QOD L – Ceiling luminaires – Indoor LED luminaires

QOD L – Ceiling luminaires – Indoor LED luminairesQOD L - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 28.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 86 °
Luminous flux 900 lm
Dimensions & weight
Length 220.0 mm
Width 220.0 mm
Height 11.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED Products
Equipped with lamp Yes
New article NEW
Capabilities
Type of installation Clip
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41031

LED Floater Headline
.000 K (Warm White)
Type of mounting.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, important data at a glance

Zoom image
QOD L
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
Indoor LED luminaires
Ceiling luminaires
QOD L
QOD L

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature: adhesive tape or srews
Family data sheet
Product family, All rights reserved: OSRAM GmbH: 3

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321974952 Folding carton box
1		 282 mm x 49 mm x 282 mm 1062.00 g 3.90 dm³
4008321974969 Shipping carton box
4		 366 mm x 242 mm x 358 mm 4992.38 g 31.71 dm³

QOD M – Ceiling luminaires – Indoor LED luminaires

QOD M – Ceiling luminaires – Indoor LED luminairesQOD M - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 89 °
Luminous flux 420 lm
Dimensions & weight
Length 155.0 mm
Width 155.0 mm
Height 11.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
New article NEW
Capabilities
Type of installation Screws
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41030

000 K (Warm White)
Type of mounting.
Indoor LED luminaires
Ceiling luminaires

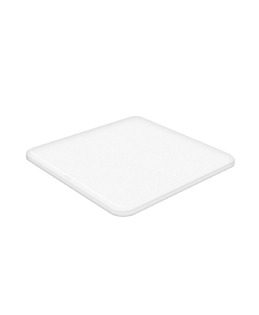

QOD M
QOD M

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature. adhesive tape or srews
Family data sheet
Product family, important data at a glance

Zoom image
QOD M
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: All rights reserved, 3: OSRAM GmbH: LED Floater Headline

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321974921 Folding carton box
1		 282 mm x 49 mm x 282 mm 667.00 g 3.90 dm³
4008321974938 Shipping carton box
4		 366 mm x 242 mm x 358 mm 3489.58 g 31.71 dm³

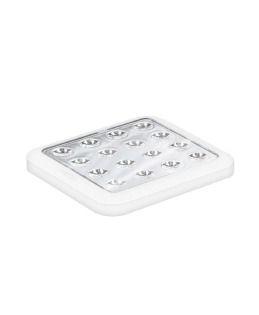

QOD S – Ceiling luminaires – Indoor LED luminaires

QOD S – Ceiling luminaires – Indoor LED luminairesQOD S - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 3.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 45 °
Luminous flux 150 lm
Dimensions & weight
Length 70.0 mm
Width 70.0 mm
Height 8.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Reflector type Lens
Capabilities
Type of installation Adhesive
Dimmable No
Color management (RGB) No
With on/off switch Yes
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41029

All rights reserved. adhesive tape or srews
Family data sheet
Product family. important data at a glance

Zoom image
QOD S
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013,000 K (Warm White)
Type of mounting: 3:
Indoor LED luminaires
Ceiling luminaires
QOD S
QOD S

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature, LED Floater Headline
: OSRAM GmbH:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321971975 Folding carton box
1		 142 mm x 36 mm x 142 mm 264.87 g 0.73 dm³
4008321971982 Shipping carton box
6		 216 mm x 260 mm x 210 mm 2058.00 g 11.79 dm³
4008321971999 Shipping carton box
24		 449 mm x 536 mm x 235 mm 8756.00 g 56.56 dm³

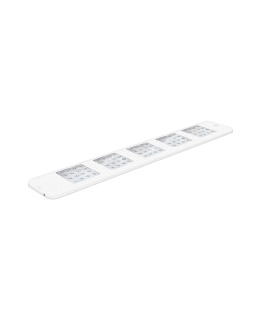

QOD DOMINO LONG 5X4 W – Ceiling luminaires – Indoor LED luminaires

QOD DOMINO LONG 5X4 W - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 20.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 45 °
Luminous flux 750 lm
Color rendering index Ra 73.2
Dimensions & weight
Length 500.0 mm
Width 80.0 mm
Height 10.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 5
Equipment LED
Reflector type Lens
New article NEW
Capabilities
Type of installation Surface mounting
With on/off switch Yes
Type of connection Plug transformer
Accessories 2x screws / 2x screw caps / Electronic control gear (ECG)
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40008

OSRAM GmbH. ECG and EU Plug
Family data sheet
Product family. 3, important data at a glance
SHORT 2X4 W
SHORT 3X4 W
LONG 3X4 W
LONG 5X4 W
Zoom image
QOD DOMINO LONG 5X4 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: All rights reserved, LED Floater Headline
, 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Product features
Color temperature:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products  technology:
Indoor LED luminaires
Ceiling luminaires

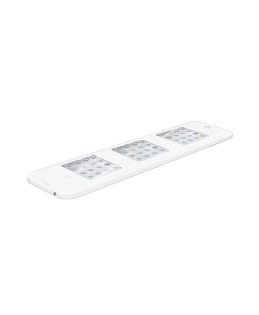

QOD DOMINO
QOD DOMINO

Zoom in
Zoom out
Resize
Product benefits
Characteristic stylish design
Extremely low profile:000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321975072 Folding carton box
1		 558 mm x 36 mm x 143 mm 870.00 g 2.87 dm³
4008321975089 Shipping carton box
4		 635 mm x 188 mm x 218 mm 4729.00 g 26.02 dm³

QOD DOMINO LONG 3X4 W – Ceiling luminaires – Indoor LED luminaires

QOD DOMINO LONG 3X4 W – Ceiling luminaires – Indoor LED luminairesQOD DOMINO LONG 3X4 W - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 12.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 45 °
Luminous flux 450 lm
Color rendering index Ra 73.2
Dimensions & weight
Length 500.0 mm
Width 80.0 mm
Height 10.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Reflector type Lens
New article NEW
Capabilities
Type of installation Surface mounting
With on/off switch Yes
Type of connection Plug transformer
Accessories 2x screws / 2x screw caps / Electronic control gear (ECG)
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40007

ECG and EU Plug
Family data sheet
Product family.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. OSRAM GmbH, 3: All rights reserved,000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch,
Indoor LED luminaires
Ceiling luminaires
QOD DOMINO
QOD DOMINO

Zoom in
Zoom out
Resize
Product benefits
Characteristic stylish design
Extremely low profile: 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED Products technology
Product features
Color temperature: LED Floater Headline
: important data at a glance
SHORT 2X4 W
SHORT 3X4 W
LONG 3X4 W
LONG 5X4 W
Zoom image
QOD DOMINO LONG 3X4 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321975041 Folding carton box
1		 558 mm x 36 mm x 143 mm 823.00 g 2.87 dm³
4008321975058 Shipping carton box
4		 635 mm x 188 mm x 218 mm 4537.00 g 26.02 dm³

QOD DOMINO SHORT 3X4 W – Ceiling luminaires – Indoor LED luminaires

QOD DOMINO SHORT 3X4 W – Ceiling luminaires – Indoor LED luminairesQOD DOMINO SHORT 3X4 W - Ceiling luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 12.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 45 °
Luminous flux 450 lm
Color rendering index Ra 73.2
Dimensions & weight
Length 330.0 mm
Width 80.0 mm
Height 10.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3
Equipment LED
Reflector type Lens
New article NEW
Capabilities
Type of installation Surface mounting
With on/off switch Yes
Type of connection Plug transformer
Accessories 2x screws / 2x screw caps / Electronic control gear (ECG)
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40006

3.
Indoor LED luminaires
Ceiling luminaires
QOD DOMINO
QOD DOMINO

Zoom in
Zoom out
Resize
Product benefits
Characteristic stylish design
Extremely low profile. 10 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Product features
Color temperature,000 K
Low-profile furniture luminaires
Integrated on/off switch
Contains light bar with integrated switch: ECG and EU Plug
Family data sheet
Product family, important data at a glance
SHORT 2X4 W
SHORT 3X4 W
LONG 3X4 W
LONG 5X4 W
Zoom image
QOD DOMINO SHORT 3X4 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, LED Floater Headline
: All rights reserved:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: OSRAM GmbH

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321975010 Folding carton box
1		 558 mm x 36 mm x 143 mm 729.00 g 2.87 dm³
4008321975027 Shipping carton box
4		 635 mm x 188 mm x 218 mm 4176.00 g 26.02 dm³
