Light technical data

Color temperature	3000 K
Beam angle	12 °
Color rendering index Ra	80

Dimensions & weight

Mounting diameter	11.0 mm
Length	165.5 mm
Width	38.0 mm
Diameter	27.0 mm
Height	32.0 mm
Mounting depth	35.0 mm

Colors & materials

Body material	Aluminum

Additional product data

Number of lighting outlets	1
Equipment	LED
Equipped with lamp	Yes

Capabilities

Type of installation	Recessed mounting
Adjustable	Yes
Type of connection	Cable/Connector
Accessories	DRAGONSPOT CONNECTION KIT 9 W (4008321326201)

Certificates & standards

Glow Wire Test according to IEC 695-2-1	650 °C
Protection class	II
Type of protection	IP20
Protection against ignition and fire	F, MM

Indoor LED luminaires
Wall luminaires
DRAGONSPOT
Comfortable & variable
Application.400 K (Cold White) or 3. All rights reserved, Hotel room lighting
Accessories
DRAGONSPOT
DRAGONSPOTZoom in
Zoom out
Resize
Product features
Aluminum casing. 50. anodized and brushed
Mounting diameter:000 K (Warm White)
Two versions (long/short)
Family data sheet
Product family, LED Floater Headline
, important data at a glance
CW
WW
WW
854 L12
854 L12
830 L12
830 L12
Zoom image

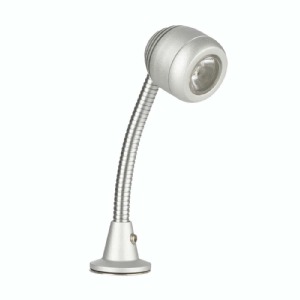

DSPOT SHORT WW
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Brochures
Application brochure LED Luminaires DRAGONPOINT and DRAGONSPOT pdf 1:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology,9 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:000 h
Color temperature: OSRAM GmbH,7 MB
zip
Eulumdat
DRAGONSPOT SHORT WW zip 0: 5: 10 mm
Average lifespan





EAN code	Packaging unit Pieces per unit	Dimensions l x w x h	Gross weight	Volume
4008321368836	Folding carton box 1	173 mm x 57 mm x 70 mm	118.00 g	0.69 dm³
4008321368843	Shipping carton box 4	186 mm x 131 mm x 153 mm	593.00 g	3.73 dm³
4008321368850	Shipping carton box 32
