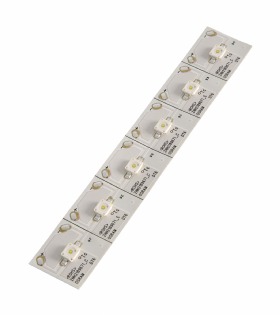

DT6 -W3F-827 – DRAGONtape – Flexible LED modules

DT6 -W3F-827 - DRAGONtape - Flexible LED modules

Electrical data
Nominal wattage 7.20 W
Type of current DC
Light technical data
Beam angle 120 °
Color temperature 2700 K
Luminous flux 275 lm
Light color as per EN 12464-1 Warm White
Light color LED white
Dimensions & weight
Length 152.0 mm
Width 25.0 mm
Height 2.6 mm
Length – LED module 152.0 mm
Temperatures
Temperature range in operation -30…65 °C
Additional product data
Number of LEDs per module 6
Footnote used only for product Modules perfectly matched to 350 mA OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2
Country specific categorizations
Marketing product family DT6
Modules
Flexible LED modules
DRAGONtape
DRAGONtape

Zoom in
Zoom out
Resize
Product benefits
Self-adhesive backing for simple installation
Can be divided into units of 1…6 LEDs
Optics are positioned over the LED and screwed in place
Contact is made by soldering two wires on the selected unit
Dimmable by pulse width modulation (PWM)
Family data sheet
Product family.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – G24 LED technology.3 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, All rights reserved. important data at a glance
-W3F-827
-W4F-854
Zoom image
DT6 -W3F-827
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
DRAGONtape DT6 pdf 228. LED Floater Headline
:2 KB
zip
Eulumdat
DT6 W3F 827 zip 1: OSRAM GmbH



EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321368461 Sleeves
1
195 mm x 12 mm x 45 mm 14.50 g 0.11 dm³
4008321368478 Shipping carton box
25
325 mm x 58 mm x 220 mm 503.00 g 4.15 dm³
