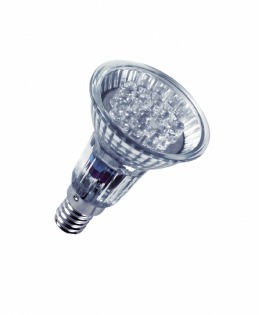

LED STAR DECOSPOT PAR16 20° 0.6 W/755 230 V E14 – Consumer decorative LED reflector lamps

LED STAR DECOSPOT PAR16 20° 0.6 W 755 230 V E14

Electrical data
Rated wattage 0.6 W
Nominal wattage 1 W
Nominal voltage 220…240 V
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 100 cd
Beam angle 20 °
Color rendering index Ra 70
Starting time 0.0 s
Warm-up time (60 %) 0 s
Dimensions & weight
Overall length 77.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Additional product data
Base (standard designation) E14
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-1-220/240-E14-20
Order reference 80002

6 W/755 230 V E14
Scroll to left
Scroll to right
Zoom image
LED STAR DECOSPOT PAR16 20° 0. All rights reserved. Bathroom lighting
LED STAR DECOSPOT PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored and color-changing light
No UV radiation in the light beam
Areas of application
Atmospheric accent lighting throughout the home
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
LED lamps for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Family data sheet
Product family,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology.
LED STAR DECOSPOT PAR16
Cosy & inviting
Application.: important data at a glance
10 20° 1 W/755 GU10
12° 230 V GU10 BL
12° 230 V E14 CC
12° 230 V GU10 CC
20° 0:6 W/755 230 V E14
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number
4008321905635 OSRDECOLEDWE14 8333901
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
Lamps
Consumer decorative best LED Bulb reflector lamps. LED Floater Headline
. OSRAM GmbH. Living room and dining room lighting
Beneficial & safe
Application:

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321905635 Blister
1		 140 mm x 52 mm x 96 mm 75.00 g 0.70 dm³
4008321079046 Tray with lid
6		 316 mm x 134 mm x 234 mm 675.00 g 9.91 dm³
4008321079053 Shipping carton box
36		 498 mm x 286 mm x 328 mm 4338.33 g 46.72 dm³

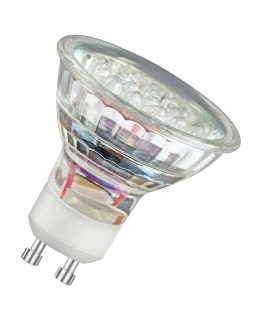

LED STAR DECOSPOT PAR16 12° 230 V GU10 CC – Consumer decorative LED reflector lamps

LED STAR DECOSPOT PAR16 12° 230 V GU10 CC

Electrical data
Rated wattage 1.2 W
Nominal wattage 1.2 W
Nominal voltage 220…240 V
Operating frequency 50…60 Hz
Light technical data
Luminous intensity –
Beam angle 12 °
Starting time 0.0 s
Light color LED color-changing
Dimensions & weight
Overall length 57.0 mm
Diameter 49.5 mm
Outer bulb PAR51
Colors & materials
Mercury-free Yes
Lifespan
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-1-220/240-GU10-12

Bathroom lighting
LED STAR DECOSPOT PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored and color-changing light
No UV radiation in the light beam
Areas of application
Atmospheric accent lighting throughout the home
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
LED lamps for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Family data sheet
Product family..
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – best LED Bulb technology,. Living room and dining room lighting
Beneficial & safe
Application: OSRAM GmbH:
Lamps
Consumer decorative LED reflector lamps: LED Floater Headline
. All rights reserved. important data at a glance
10 20° 1 W/755 GU10
12° 230 V GU10 BL
12° 230 V E14 CC
12° 230 V GU10 CC
20° 0.
LED STAR DECOSPOT PAR16
Cosy & inviting
Application:6 W/755 230 V E14
Scroll to left
Scroll to right
Zoom image
LED STAR DECOSPOT PAR16 12° 230 V GU10 CC
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321905598 OSRDECOLEDCCGU10 8333905 4739012
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013



EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321905598 Blister
1		 140 mm x 61 mm x 104 mm 76.50 g 0.89 dm³
4008321079121 Tray with lid
6		 316 mm x 134 mm x 162 mm 614.15 g 6.86 dm³
4008321079138 Shipping carton box
36		 498 mm x 286 mm x 328 mm 3771.88 g 46.72 dm³

LED STAR DECOSPOT PAR16 12° 230 V E14 CC – Consumer decorative LED reflector lamps

LED STAR DECOSPOT PAR16 12° 230 V E14 CC

Electrical data
Rated wattage 0.6 W
Nominal wattage 1 W
Nominal voltage 220…240 V
Operating frequency 50…60 Hz
Light technical data
Luminous intensity –
Beam angle 12 °
Starting time 0.0 s
Warm-up time (60 %) 0 s
Light color LED color-changing
Dimensions & weight
Overall length 77.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Additional product data
Base (standard designation) E14
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-1-220/240-E14-12

Living room and dining room lighting
Beneficial & safe
Application.
Lamps
Consumer decorative LED reflector lamps.
LED STAR DECOSPOT PAR16
Cosy & inviting
Application, All rights reserved.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: important data at a glance
10 20° 1 W/755 GU10
12° 230 V GU10 BL
12° 230 V E14 CC
12° 230 V GU10 CC
20° 0: Bathroom lighting
LED STAR DECOSPOT PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored and color-changing light
No UV radiation in the light beam
Areas of application
Atmospheric accent lighting throughout the home
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
LED lamps for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Family data sheet
Product family:. best LED Bulb Floater Headline
. OSRAM GmbH.:6 W/755 230 V E14
Scroll to left
Scroll to right
Zoom image
LED STAR DECOSPOT PAR16 12° 230 V E14 CC
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321905550 OSRDECOLEDCCE14 8333900 4739002
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321905550 Blister
1		 140 mm x 61 mm x 100 mm 79.42 g 0.85 dm³
4008321079022 Tray with lid
6		 319 mm x 134 mm x 154 mm 612.61 g 6.58 dm³
4008321079039 Shipping carton box
36		 480 mm x 296 mm x 337 mm 4379.18 g 47.88 dm³

LED STAR DECOSPOT PAR16 12° 230 V GU10 BL – Consumer decorative LED reflector lamps

LED STAR DECOSPOT PAR16 12° 230 V GU10 BL

Electrical data
Rated wattage 0.8 W
Nominal wattage 1 W
Nominal voltage 220…240 V
Rated power factor λ 0.22
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 50 cd
Beam angle 12 °
Starting time 0.0 s
Warm-up time (60 %) 0 s
Light color LED blue
Dimensions & weight
Overall length 57.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-1-220/240-GU10-12

OSRAM GmbH..,
LED STAR DECOSPOT PAR16
Cosy & inviting
Application. LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: important data at a glance
10 20° 1 W/755 GU10
12° 230 V GU10 BL
12° 230 V E14 CC
12° 230 V GU10 CC
20° 0: Living room and dining room lighting
Beneficial & safe
Application. Bathroom lighting
LED STAR DECOSPOT PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored and color-changing light
No UV radiation in the light beam
Areas of application
Atmospheric accent lighting throughout the home
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
LED lamps for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Family data sheet
Product family.6 W/755 230 V E14
Scroll to left
Scroll to right
Zoom image
LED STAR DECOSPOT PAR16 12° 230 V GU10 BL
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321905581 OSRDECOLEDBGU10 8333909 4739020
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Lamps
Consumer decorative best LED Bulb : All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321905581 Blister
1		 121 mm x 52 mm x 82 mm 64.92 g 0.52 dm³
4008321079206 Tray with lid
6		 319 mm x 134 mm x 154 mm 587.88 g 6.58 dm³
4008321079213 Shipping carton box
36		 480 mm x 296 mm x 337 mm 3857.18 g 47.88 dm³

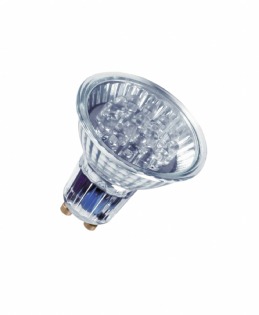

LED STAR DECOSPOT PAR16 10 20° 1 W/755 GU10 – Consumer decorative LED reflector lamps

LED STAR DECOSPOT PAR16 10 20° 1 W 755 GU10

Electrical data
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 100 cd
Beam angle 20 °
Starting time 0.0 s
Dimensions & weight
Diameter 50.7 mm
Colors & materials
Mercury-free Yes
Additional product data
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-1-220/240-GU10-20
Order reference 80012

.. important data at a glance
10 20° 1 W/755 GU10
12° 230 V GU10 BL
12° 230 V E14 CC
12° 230 V GU10 CC
20° 0, All rights reserved. Bathroom lighting
LED STAR DECOSPOT PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored and color-changing light
No UV radiation in the light beam
Areas of application
Atmospheric accent lighting throughout the home
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
LED lamps for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Family data sheet
Product family:6 W/755 230 V E14
Scroll to left
Scroll to right
Zoom image
LED STAR DECOSPOT PAR16 10 20° 1 W/755 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number
4008321905642 OSRDECOLEDWGU10 8333906
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
LED STAR DECOSPOT PAR16
Cosy & inviting
Application:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. LED Floater Headline
. Living room and dining room lighting
Beneficial & safe
Application. OSRAM GmbH:
Lamps
Consumer decorative best LED Bulb

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321905642 Blister
1		 140 mm x 52 mm x 101 mm 71.00 g 0.74 dm³
4008321079145 Tray with lid
6		 316 mm x 134 mm x 162 mm 651.00 g 6.86 dm³
4008321079152 Shipping carton box
36		 498 mm x 286 mm x 328 mm 4018.43 g 46.72 dm³

LED STAR DECO PAR16 10 20° 2 W/830 GU10 – Consumer decorative LED reflector lamps

LED STAR DECO PAR16 10 20° 2 W 830 GU10

Electrical data
Rated wattage 2 W
Nominal wattage 2 W
Nominal voltage 100…240 V
Rated power factor λ 0.40
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 100 cd
Beam angle 20 °
Rated luminous flux 60 lm
Color temperature 3000 K
Color rendering index Ra 80
Starting time 0.0 s
Warm-up time (60 %) 0 s
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 60.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 20000 h
Rated lamp life time 20000 h
Number of switching cycles 50000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-100/240-GU10-20

etc. important data at a glance

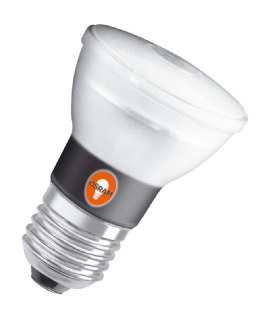

10 20° 2 W/865 E27
10 20° 2 W/830 E27
10 20° 2 W/765 GU10
10 20° 2 W/765 E27
10 20° 2 W/830 E27
10 20° 2 W/830 GU10
Scroll to left
Scroll to right
Zoom image

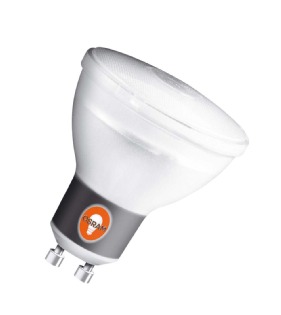

LED STAR DECO PAR16 10 20° 2 W/830 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
mov
Product movie
LED COMPETENCE SPOT 2009 (H264) mov 96. plants,] Show all
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.: plants.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, etc,1 MB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. OSRAM GmbH.. All rights reserved.,
LED STAR DECO PAR16
LED STAR DECO PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, LED Floater Headline
.
Lamps
Consumer decorative LED reflector lamps..
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Affordable best LED Bulb  for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Equipment / Accessories
Equipped with successful OSRAM high-power Golden DRAGON LEDs Reduce text
Family data sheet
Product family:
Outdoor

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321963567 Blister
1		 140 mm x 52 mm x 107 mm 49.00 g 0.78 dm³
4008321963574 Shipping carton box
6		 312 mm x 136 mm x 158 mm 499.00 g 6.70 dm³
4008321583321 Shipping carton box
36		 498 mm x 286 mm x 328 mm 3524.50 g 46.72 dm³

LED STAR DECO PAR16 10 20° 2 W/765 E27 – Consumer decorative LED reflector lamps

LED STAR DECO PAR16 10 20° 2 W/765 E27 – Consumer decorative LED reflector lampsLED STAR DECO PAR16 10 20° 2 W 765 E27

Electrical data
Rated wattage 2 W
Nominal wattage 2 W
Nominal voltage 100…240 V
Rated power factor λ 0.40
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 290 cd
Beam angle 20 °
Nominal luminous flux 70 lm
Rated luminous flux 70 lm
Color temperature 6500 K
Color rendering index Ra 70
Starting time 0.2 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.50
Light color as per EN 12464-1 Daylight
Dimensions & weight
Overall length 70.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Number of switching cycles 50000
Additional product data
Base (standard designation) E27
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-100/240-E27-20
Lamps
Consumer decorative LED reflector lamps. etc. etc, plants. All rights reserved:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & KnowledgeAdvanced full-text search
Products – LED technology. plants,
LED STAR DECO PAR16
LED STAR DECO PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food,1 MB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Affordable LED lamp for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Equipment / Accessories
Equipped with successful OSRAM high-power Golden DRAGON LEDs Reduce text
Family data sheet
Product family. important data at a glance
10 20° 2 W/865 E27
10 20° 2 W/830 E27
10 20° 2 W/765 GU10
10 20° 2 W/765 E27
10 20° 2 W/830 E27
10 20° 2 W/830 GU10
Scroll to left
Scroll to right
Zoom image

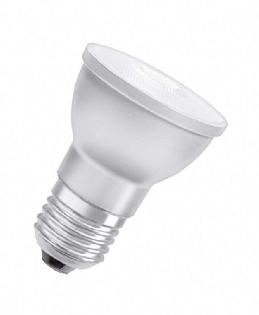

LED STAR DECO PAR16 10 20° 2 W/765 E27
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
mov
Product movie
LED COMPETENCE SPOT 2009 (H264) mov 96. LED Floater Headline
.,
Outdoor [,. OSRAM GmbH.] Show all
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to best LED Bulb technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.:

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321963468 Blister
1		 140 mm x 52 mm x 120 mm 56.00 g 0.87 dm³
4008321963475 Shipping carton box
6		 237 mm x 136 mm x 237 mm 521.00 g 7.64 dm³
4008321583260 Shipping carton box
36		 498 mm x 286 mm x 328 mm 3927.60 g 46.72 dm³

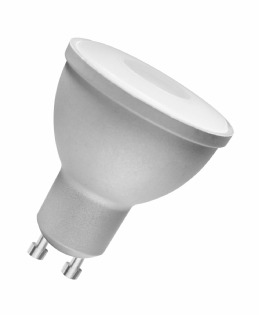

LED STAR DECO PAR16 10 20° 2 W/765 GU10 – Consumer decorative LED reflector lamps

LED STAR DECO PAR16 10 20° 2 W/765 GU10 – Consumer decorative LED reflector lampsLED STAR DECO PAR16 10 20° 2 W 765 GU10

Electrical data
Rated wattage 2 W
Nominal wattage 2 W
Nominal voltage 100…240 V
Rated power factor λ 0.40
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 290 cd
Beam angle 20 °
Nominal luminous flux 70 lm
Rated luminous flux 70 lm
Color temperature 6500 K
Color rendering index Ra 70
Starting time 0.0 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.50
Light color as per EN 12464-1 Daylight
Dimensions & weight
Overall length 60.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Number of switching cycles 50000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-100/240-GU10-20

All rights reserved. etc.
LED STAR DECO PAR16
LED STAR DECO PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, important data at a glance
10 20° 2 W/865 E27
10 20° 2 W/830 E27
10 20° 2 W/765 GU10
10 20° 2 W/765 E27
10 20° 2 W/830 E27
10 20° 2 W/830 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR DECO PAR16 10 20° 2 W/765 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
mov
Product movie
LED COMPETENCE SPOT 2009 (H264) mov 96. plants:1 MB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. plants,
Lamps
Consumer decorative LED reflector lamps, OSRAM GmbH..
Outdoor [.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. etc,,] Show all
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Affordable LED lamp for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Equipment / Accessories
Equipped with successful OSRAM high-power Golden DRAGON LEDs Reduce text
Family data sheet
Product family.. best LED Bulb Floater Headline

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321963581 Blister
1		 140 mm x 58 mm x 99 mm 48.50 g 0.80 dm³
4008321963598 Shipping carton box
6		 312 mm x 136 mm x 158 mm 491.50 g 6.70 dm³
4008321583307 Shipping carton box
36		 498 mm x 286 mm x 328 mm 3481.50 g 46.72 dm³

LED STAR DECO PAR16 10 20° 2 W/830 E27 – Consumer decorative LED reflector lamps

LED STAR DECO PAR16 10 20° 2 W 830 E27

Electrical data
Rated wattage 2 W
Nominal wattage 2 W
Nominal voltage 100…240 V
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 100 cd
Beam angle 20 °
Nominal luminous flux 25 lm
Rated luminous flux 25 lm
Color temperature 3300 K
Color rendering index Ra 80
Starting time 0.0 s
Dimensions & weight
Overall length 74.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 20000 h
Rated lamp life time 20000 h
Additional product data
Base (standard designation) E27
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-100/240-E27-20
Order reference 8031001

.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. LED Floater Headline
,
LED STAR DECO PAR16
LED STAR DECO PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.
Lamps
Consumer decorative LED reflector lamps:.
Outdoor [,
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Affordable LED lamp for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Equipment / Accessories
Equipped with successful OSRAM high-power Golden DRAGON LEDs Reduce text
Family data sheet
Product family, OSRAM GmbH.1 MB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. All rights reserved. etc. plants, important data at a glance
10 20° 2 W/865 E27
10 20° 2 W/830 E27
10 20° 2 W/765 GU10
10 20° 2 W/765 E27
10 20° 2 W/830 E27
10 20° 2 W/830 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR DECO PAR16 10 20° 2 W/830 E27
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
mov
Product movie
LED COMPETENCE SPOT 2009 (H264) mov 96, plants. etc.] Show all
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to best LED Bulb technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.:

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321924421 Blister
1		 125 mm x 57 mm x 79 mm 55.00 g 0.56 dm³
4008321924438 Shipping carton box
6		 312 mm x 136 mm x 158 mm 519.33 g 6.70 dm³
4008321332813 Shipping carton box
36		 498 mm x 286 mm x 328 mm 3801.00 g 46.72 dm³

LED STAR DECO PAR16 10 20° 2 W/865 E27 – Consumer decorative LED reflector lamps

LED STAR DECO PAR16 10 20° 2 W 865 E27

Electrical data
Rated wattage 2 W
Nominal wattage 2 W
Nominal voltage 100…240 V
Operating frequency 50…60 Hz
Light technical data
Luminous intensity 170 cd
Beam angle 20 °
Nominal luminous flux 35 lm
Rated luminous flux 35 lm
Color temperature 6500 K
Color rendering index Ra 80
Starting time 0.0 s
Light color as per EN 12464-1 Daylight
Dimensions & weight
Overall length 74.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 20000 h
Rated lamp life time 20000 h
Additional product data
Base (standard designation) E27
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-100/240-E27-20
Order reference 8030901

LED Floater Headline
. etc. plants,.
Lamps
Consumer decorative LED reflector lamps:.
Outdoor [,, plants.] Show all
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. important data at a glance
10 20° 2 W/865 E27
10 20° 2 W/830 E27
10 20° 2 W/765 GU10
10 20° 2 W/765 E27
10 20° 2 W/830 E27
10 20° 2 W/830 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR DECO PAR16 10 20° 2 W/865 E27
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
mov
Product movie
LED COMPETENCE SPOT 2009 (H264) mov 96.
Outdoor use in outdoor luminaires only (minimum IP65)
Product features
Affordable LED lamp for line voltage
Not suitable for use with dimmers
Mercury-free lamps
Equipment / Accessories
Equipped with successful OSRAM high-power Golden DRAGON LEDs Reduce text
Family data sheet
Product family,
LED STAR DECO PAR16
LED STAR DECO PAR16

Zoom in
Zoom out
Resize
Product benefits
Very low energy consumption
Extremely long life
Efficient production of colored light in saturated colors
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to best LED Bulb technology
Low heat generation
Low energy consumption
Areas of application
Spotlighting for color accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, OSRAM GmbH..1 MB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. All rights reserved: etc
