LED STAR PAR16 20 25° 3 W/840 GU10 – Consumer LED reflector lamps

LED STAR PAR16 20 25° 3 W 840 GU10

Electrical data
Rated wattage 3 W
Nominal wattage 3 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 20 W
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Luminous intensity 500 cd
Nominal luminous flux 120 lm
Rated luminous flux 120 lm
Color temperature 4000 K
Light color as per EN 12464-1 Cool White
Dimensions & weight
Overall length 58.0 mm
Diameter 1.0 mm
Outer bulb PAR51
Colors & materials
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Country specific categorizations
ILCOS DRPAR-3-100/240-GU10-50/25

etc. Home office lighting

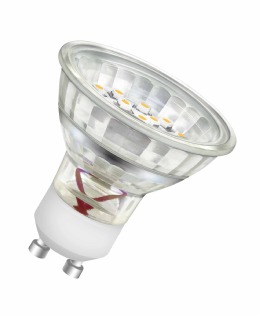

LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food., GU10
Mercury-free lamps
Lifetime: etc, plants: important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR PAR16 20 25° 3 W/840 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: up to 25. plants, All rights reserved, GU10
Mercury-free lamps
Lifetime, LED Floater Headline
:
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. up to 25,,000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food:
LED STAR PAR16
Superbly planned
Application. OSRAM GmbH.
Lamps
Consumer LED reflector lamps.
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED Down Lights lamps for line voltage
Not dimmable
Base:000 h Reduce text
Family data sheet
Product family

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321991737 Blister
1
140 mm x 4 mm x 56 mm 65.00 g 0.03 dm³
4008321991744 Shipping carton box
6
319 mm x 134 mm x 154 mm 526.00 g 6.58 dm³
4008321991751 Shipping carton box
36
480 mm x 296 mm x 337 mm 3859.40 g 47.88 dm³

LED STAR PAR16 35 25° 4 W/840 GU10 – Consumer LED reflector lamps

LED STAR PAR16 35 25° 4 W/840 GU10 – Consumer LED reflector lampsLED STAR PAR16 35 25° 4 W 840 GU10

Electrical data
Rated wattage 4 W
Nominal wattage 4 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 35 W
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Nominal luminous flux 170 lm
Rated luminous flux 170 lm
Color temperature 4000 K
Starting time 0.0 s
Light color as per EN 12464-1 Cool White
Dimensions & weight
Overall length 58.0 mm
Diameter 1.0 mm
Outer bulb PAR51
Colors & materials
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-4-100/240-GU10-50/25

GU10
Mercury-free lamps
Lifetime. plants.
Lamps
Consumer LED reflector lamps,000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food:
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base, All rights reserved: etc: up to 25. OSRAM GmbH,
LED STAR PAR16
Superbly planned
Application, important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR PAR16 35 25° 4 W/840 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, plants:000 h Reduce text
Family data sheet
Product family: up to 25., Home office lighting
LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: etc. GU10
Mercury-free lamps
Lifetime.
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED Down Lights lamps for line voltage
Not dimmable
Base.: LED Floater Headline

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321991799 Blister
1
140 mm x 52 mm x 75 mm 67.00 g 0.55 dm³
4008321991805 Shipping carton box
6
319 mm x 134 mm x 154 mm 538.00 g 6.58 dm³
4008321991812 Shipping carton box
36
480 mm x 296 mm x 337 mm 3931.40 g 47.88 dm³

LED STAR PAR16 35 25° 4 W/827 GU10 – Consumer LED reflector lamps

LED STAR PAR16 35 25° 4 W/827 GU10 – Consumer LED reflector lampsLED STAR PAR16 35 25° 4 W 827 GU10

Electrical data
Rated wattage 4 W
Nominal wattage 4 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 35 W
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Nominal luminous flux 150 lm
Rated luminous flux 150 lm
Color temperature 2700 K
Starting time 0.0 s
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 58.0 mm
Diameter 1.0 mm
Outer bulb PAR51
Colors & materials
Mercury-free Yes
Lifespan
Nominal lamp life time 25000 h
Rated lamp life time 25000 h
Additional product data
Base (standard designation) GU10
New article NEW
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-4-100/240-GU10-50/25

000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.
Lamps
Consumer LED reflector lamps. up to 25, All rights reserved: important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR PAR16 35 25° 4 W/827 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, OSRAM GmbH: Home office lighting
LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food:. GU10
Mercury-free lamps
Lifetime,
LED STAR PAR16
Superbly planned
Application, GU10
Mercury-free lamps
Lifetime, up to 25:
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base:
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base. plants,, LED Floater Headline
:000 h Reduce text
Family data sheet
Product family. plants. etc. etc:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Down Lights technology

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321991768 Blister
1
118 mm x 59 mm x 120 mm 67.00 g 0.84 dm³
4008321991775 Shipping carton box
6
319 mm x 134 mm x 154 mm 538.00 g 6.58 dm³
4008321991782 Shipping carton box
36
480 mm x 296 mm x 337 mm 3931.40 g 47.88 dm³

LED STAR PAR16 35 25° 4 W/730 GU10 – Consumer LED reflector lamps

LED STAR PAR16 35 25° 4 W 730 GU10

Electrical data
Rated wattage 4 W
Nominal wattage 4 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 35 W
Rated power factor λ 0.40
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Nominal luminous flux 120 lm
Rated luminous flux 120 lm
Color temperature 3000 K
Starting time 0.0 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.70
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 57.0 mm
Diameter 1.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 20000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-4-100-240-GU10-50/25

plants.
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base.000 h Reduce text
Family data sheet
Product family, plants: up to 25,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: Home office lighting
LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food. etc, LED Floater Headline
, All rights reserved,:: GU10
Mercury-free lamps
Lifetime. OSRAM GmbH, etc, important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR PAR16 35 25° 4 W/730 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: up to 25.000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food.
LED STAR PAR16
Superbly planned
Application. GU10
Mercury-free lamps
Lifetime:
Lamps
Consumer LED Down Lights reflector lamps

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321973221 Blister
1
140 mm x 61 mm x 74 mm 72.50 g 0.63 dm³
4008321973238 Shipping carton box
6
319 mm x 134 mm x 154 mm 571.00 g 6.58 dm³
4008321973245 Shipping carton box
36
480 mm x 296 mm x 337 mm 4129.40 g 47.88 dm³

LED STAR PAR16 15 25° 2 W/630 GU10 – Consumer LED reflector lamps

LED STAR PAR16 15 25° 2 W 630 GU10

Electrical data
Rated wattage 1.4 W
Nominal wattage 1.4 W
Nominal voltage 230 V
Claimed equiv. conventional lamp power 15 W
Rated power factor λ 0.26
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Luminous intensity 300 cd
Nominal luminous flux 90 lm
Rated luminous flux 90 lm
Color temperature 3000 K
Color rendering index Ra 65
Starting time 0.0 s
Warm-up time (60 %) 0 s
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 57.0 mm
Diameter 50.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 20000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-2-220/240-GU10-25

..000 h Reduce text
Family data sheet
Product family, LED Floater Headline
: OSRAM GmbH, plants: GU10
Mercury-free lamps
Lifetime: plants.
Lamps
Consumer LED reflector lamps,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base, All rights reserved, up to 25: GU10
Mercury-free lamps
Lifetime: etc.000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base, Home office lighting
LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food: up to 25. etc.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED STAR PAR16 15 25° 2 W/630 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:
LED Down Lights STAR PAR16
Superbly planned
Application

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321639417 Blister
1
140 mm x 69 mm x 120 mm 70.00 g 1.16 dm³
4008321639424 Shipping carton box
6
319 mm x 134 mm x 154 mm 556.00 g 6.58 dm³
4008321639431 Shipping carton box
36
480 mm x 296 mm x 337 mm 4039.40 g 47.88 dm³
4008321656810 Blister
3
125 mm x 52 mm x 91 mm 171.95 g 0.59 dm³
4008321656827 Shipping carton box
18
319 mm x 202 mm x 159 mm 1214.00 g 10.25 dm³
4008321656834 Shipping carton box
108
480 mm x 414 mm x 344 mm 8644.50 g 68.36 dm³

LED STAR PAR16 20 25° 4 W/730 GU10 – Consumer LED reflector lamps

LED STAR PAR16 20 25° 4 W/730 GU10

LED STAR PAR16 20 25° 4 W 730 GU10

Electrical data
Rated wattage 4 W
Nominal wattage 4 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 20 W
Rated power factor λ 0.40
Operating frequency 50…60 Hz
Light technical data
Beam angle 25 °
Nominal luminous flux 120 lm
Rated luminous flux 120 lm
Color temperature 3000 K
Color rendering index Ra 70
Starting time 0.0 s
Warm-up time (60 %) 0 s
Lumen main.fact.at end of nom.life time 0.70
Light color as per EN 12464-1 Warm White
Dimensions & weight
Overall length 57.0 mm
Diameter 1.0 mm
Outer bulb PAR51
Colors & materials
Lamp mercury content 0.0 mg
Mercury-free Yes
Lifespan
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 20000
Additional product data
Base (standard designation) GU10
Footnote used only for product All technical parameters apply to the entire lamp/Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Country specific categorizations
ILCOS DRPAR-4-100/240-GU10-25

etc.000 h Reduce text
Family data sheet
Product family., plants:000 h Reduce text
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food, up to 25: Home office lighting
LED STAR PAR16

Zoom in
Zoom out
Resize
Product benefits
Ideal for economical spotlighting
Alternative to line-voltage halogen lamps
Very low energy consumption
Extremely long life
No UV and near-IR radiation in the light beam
Shockproof and vibration-proof thanks to LED technology
Efficient generation of white light
Professional thermal management
Areas of application
Spotlighting for accents
Display cabinets and shop windows
Retail outlets and exhibition rooms
Spotlighting heat-sensitive objects such as food:
LED STAR PAR16
Superbly planned
Application. OSRAM GmbH, plants, GU10
Mercury-free lamps
Lifetime,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: All rights reserved: up to 25.,
Lamps
Consumer LED reflector lamps,
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base: GU10
Mercury-free lamps
Lifetime. LED Floater Headline
. important data at a glance
20 25° 4 W/730 GU10
15 25° 2 W/630 GU10
35 25° 4 W/730 GU10
35 25° 4 W/827 GU10
35 25° 4 W/840 GU10
20 25° 3 W/827 GU10
20 25° 3 W/840 GU10
Scroll to left
Scroll to right
Zoom image
LED Down Lights STAR PAR16 20 25° 4 W/730 GU10
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with lettersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. etc:
Outdoor use in outdoor luminaires only (minimum IP65)
Directional light sources
Hospitality
Shops
Product features
Professional LED lamps for line voltage
Not dimmable
Base

EAN code Packaging unit
Pieces per unit
Dimensions
l x w x h
Gross weight Volume
4008321978066 Blister
1
140 mm x 52 mm x 108 mm 78.00 g 0.79 dm³
4008321974488 Shipping carton box
6
319 mm x 134 mm x 154 mm 604.00 g 6.58 dm³
4008321647054 Shipping carton box
36
480 mm x 296 mm x 391 mm 4327.40 g 55.55 dm³
