LF06P -W4F-827-P – LINEARlight POWER Flex Protect – Flexible LED modules

LF06P -W4F-827-P – LINEARlight POWER Flex Protect – Flexible LED modulesLF06P -W4F-827-P - LINEARlight POWER Flex Protect - Flexible LED modules

Electrical data
Nominal wattage 72.0 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 2700 K
Luminous flux 2880 lm
Light color as per EN 12464-1 Warm White
Light color LED white
Color rendering index Ra › 80
Dimensions & weight
Length 3000.0 mm
Length – smallest unit 150.0 mm
Width 11.0 mm
Height 4.5 mm
Cable length 500.0 mm
Temperatures
Temperature range in operation -20…85 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 120
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Type of protection IP67
Standards acc. to EN 60598-1
Country specific categorizations
Marketing product family LF06P-P

. OSRAM GmbH.
Modules
Flexible LED modules
LINEARlight POWER Flex Protect,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: LED Floater Headline
, important data at a glance

Product video
-W4F-830-P
-W4F-840-P
-W4F-876-P
-W4F-827-P
-W4F-830-P
-W4F-840-P
-W4F-854-P
Scroll to left
Scroll to right
Zoom image

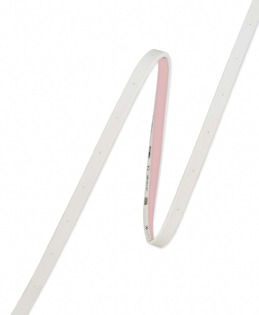

LF06P -W4F-827-P
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321621894 OSRLF06PW4F827P 8334158 4030003
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: All rights reserved: IP67
Luminous flux.. up to 1.200 lm/m
Dimmable
Fine White
Salt mist proof
Highly UV-resistant
Family data sheet
Product family:
LINEARlight POWER Flex Protect

Zoom in
Zoom out
Resize
Product benefits
High-performance silicon for extremely long life and flexibility
Simple mounting and connection
Stylish design
Product features
Flexible g24 LED strip
Type of protection

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321621894 Folding carton box
1		 353 mm x 40 mm x 349 mm 711.50 g 4.93 dm³
4008321621900 Shipping carton box
8		 366 mm x 343 mm x 290 mm 5397.92 g 36.41 dm³
