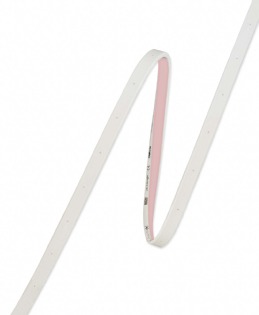

LF06P -W4F-840-P – LINEARlight POWER Flex Protect – Flexible LED modules

LF06P -W4F-840-P – LINEARlight POWER Flex Protect – Flexible LED modulesLF06P -W4F-840-P - LINEARlight POWER Flex Protect - Flexible LED modules

Electrical data
Nominal wattage 72.0 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 4000 K
Luminous flux 3650 lm
Light color as per EN 12464-1 Cool White
Light color LED white
Color rendering index Ra › 80
Dimensions & weight
Length 3000.0 mm
Length – smallest unit 150.0 mm
Width 11.0 mm
Height 4.5 mm
Cable length 500.0 mm
Temperatures
Temperature range in operation -20…85 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 120
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Type of protection IP67
Standards acc. to EN 60598-1
Country specific categorizations
Marketing product family LF06P-P
