| Nominal wattage | 58.00 W |
|---|---|
| Reverse Voltage | 25 V |
| Type of current | DC |
| Voltage Range | 23…25 V |
| Beam angle | 120 ° |
|---|---|
| Color temperature | 4000 K |
| Luminous flux | 5076 lm |
| Light color as per EN 12464-1 | Cool White |
| Light color LED | white |
| Color rendering index Ra | › 85 |
| Length | 6000.0 mm |
|---|---|
| Width | 8.0 mm |
| Height | 2.1 mm |
| Length – LED module | 6000.0 mm |
| Lifespan | 50000 h |
|---|
| Number of LEDs per module | 720 |
|---|
| Dimmable | Yes |
|---|
| Marketing product family | LF06S |
|---|
All rights reserved.. up to 840 lm/m
Module efficacy, OSRAM GmbH: LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology:
Eye-catchingly attractive
Application:. Shop window lighting

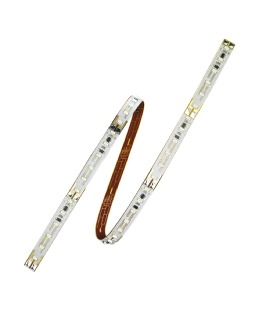

LINEARlight FLEX ShortPitch
Zoom in
Zoom out
Resize
Product benefits
Very small LED spacing
Product features
Flexible LED strip
Luminous flux. important data at a glance
Product video
-W3F-827
-W3F-830
-W3F-840
-W3F-850
-W3F-865
Zoom image
LF06S -W3F-840
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321973900 7459404 4030065
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. up to 88 lm/W
Salt mist proof
Family data sheet
Product family:
Modules
Flexible G24 LED modules
LINEARlight FLEX ShortPitch
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321973900 | Folding carton box 1 |
184 mm x 30 mm x 184 mm | 170.33 g | 1.02 dm³ |
| 4008321973955 | Shipping carton box 8 |
241 mm x 195 mm x 205 mm | 1672.00 g | 9.63 dm³ |
