Electrical data
| Nominal wattage |
2.30 W |
| Reverse Voltage |
25 V |
| Type of current |
DC |
| Voltage Range |
23…25 V |
Light technical data
| Beam angle |
120 ° |
| Color temperature |
3000 K |
| Luminous flux |
200 lm |
| Light color as per EN 12464-1 |
Warm White |
| Light color LED |
white |
| Luminous efficacy |
87 lm/W |
| Color rendering index Ra |
85 |
Dimensions & weight
| Length |
280.0 mm |
| Width |
20.0 mm |
| Height |
2.0 mm |
Colors & materials
| Cover material |
Plastic |
| Body material |
Anodised aluminum |
Temperatures
| Temperature range in operation |
-30…65 °C |
Lifespan
| Lifespan |
50000 h |
Additional product data
| Number of LEDs per module |
14 |
Capabilities
| Dimmable |
Yes |
Certificates & standards
| Standards |
acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc. to ENEC 61347-2-13 / acc.to IEC/EN 62384 |
Country specific categorizations
| Marketing product family |
LR14E |
All rights reserved.5 KB
pdf
Certificates
CB Test Certificate DE1-49856 for LINEARlight 24 V pdf 2. OSRAM GmbH,
Modules
Rigid LED modules
LINEARlight ECO
LINEARlight ECO
Zoom in
Zoom out
Resize
Product benefits
Modules can be easily joined together to make seamless strip lighting
Low maintenance costs thanks to a lifetime of up to 50.6 KB
zip
Eulumdat
LINEARLIGHT RIGID LR14E-W2F-830 zip 0. 700 lm/m
Integrated SMD 4-pin plug connector (male/female) on both sides of the PCB
Color rendering index Ra.2 MB
pdf
Installation guide
Installation instruction T5 LINEARlight pdf 1.3 MB
pdf
Declarations of conformity
DECLARATION OF COMFORMIT 2012 ZCI2808342 LR_LINEARlight (GB) pdf 1. 85
Dimmable
Module efficacy.9 KB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. important data at a glance
-W2F-830
-W2F-840
Zoom image

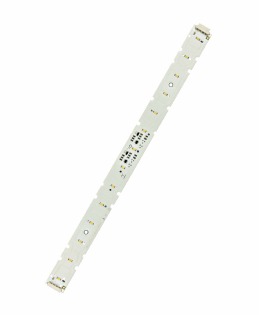

LR14E -W2F-830
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Family Datasheet
LINEARlight Eco – LR14E (GB) pdf 83: up to 96 lm/W
Compatible with LINEARlight LR21P and LR14A
Family data sheet
Product family: LED Floater Headline
:7 MB
pdf
CAD data
LINEARlight Eco – Drawing pdf 164:7 MB
pdf
Installation guide
Installation instruction T5 LINEARlight (GB) pdf 1,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology:000 h
Simple fixing thanks to mounting holes
Product features
Metal core board equipped with 14 LED Replacement Lamps
Luminous flux
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321971555 |
Unpacked
1 |
283 mm x 9 mm x 19 mm |
20.00 g |
0.05 dm³ |
| 4008321971562 |
Shipping carton box
8 |
317 mm x 265 mm x 46 mm |
266.00 g |
3.86 dm³ |
