Electrical data
| Nominal wattage |
8.00 W |
| Reverse Voltage |
25 V |
| Type of current |
DC |
| Voltage Range |
23…25 V |
Light technical data
| Beam angle |
120 ° |
| Color temperature |
4000 K |
| Luminous flux |
630 lm |
| Light color as per EN 12464-1 |
Cool White |
| Light color LED |
white |
| Luminous efficacy |
80 lm/W |
| Color rendering index Ra |
85 |
Dimensions & weight
| Length |
280.0 mm |
| Width |
20.0 mm |
| Height |
2.0 mm |
Colors & materials
| Cover material |
Plastic |
| Body material |
Anodised aluminum |
Temperatures
| Temperature range in operation |
-30…65 °C |
Lifespan
| Lifespan |
50000 h |
Additional product data
| Number of LEDs per module |
21 |
| New article |
NEW |
Capabilities
| Dimmable |
Yes |
Certificates & standards
| Standards |
acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc. to ENEC 61347-2-13 / acc.to IEC/EN 62384 |
Country specific categorizations
| Marketing product family |
LR21P |
important data at a glance
-W2F-840
-W2F-830
Zoom image

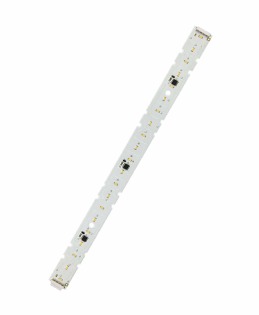

LR21P -W2F-840
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Family Datasheet
LINEARlight Power – LR21P (GB) pdf 189.7 MB
pdf
CAD data
LINEARlight Power – Drawing pdf 170. up to 2,6 KB
pdf
Certificates
CB Test Certificate DE1-49856 for LINEARlight 24 V pdf 2.3 KB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. All rights reserved.250 lm/m
Integrated SMD plug connector (male/female) on both sides of the PCB
Color rendering index Ra.7 MB
pdf
Installation guide
Installation instruction T5 LINEARlight (GB) pdf 1. OSRAM GmbH.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology.2 MB
pdf
Installation guide
Installation instruction T5 LINEARlight pdf 1::
Modules
Rigid LED modules
LINEARlight POWER
LINEARlight POWER
Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 50,000 h
Unified geometry (independent from luminous flux of module)
Simple fixing thanks to mounting holes
Modules can be easily joined together to make seamless strip lighting
Product features
Metal core board equipped with 21 LEDs
Luminous flux comparable with that of T5 HE fluorescent lamps
Luminous flux:000 h
Unified geometry (independent from luminous flux of module)
Simple fixing thanks to mounting holes
Modules can be easily joined together to make seamless strip lighting
Product features
Metal core board equipped with 21 LED Replacement Lamps
Luminous flux comparable with that of T5 HE fluorescent lamps
Luminous flux, up to 2.250 lm/m
Integrated SMD plug connector (male/female) on both sides of [.] Show all
Product benefits
Low maintenance costs thanks to a lifetime of up to 50.0 KB
zip
Eulumdat
LINEARLIGHT RIGID LR21P-W2F-840 zip 0,3 MB
pdf
Declarations of conformity
DECLARATION OF COMFORMIT 2012 ZCI2808342 LR_LINEARlight (GB) pdf 1: LED Floater Headline
, 85
Dimmable
Up to six modules can be operated in series on one control gear Reduce text
Family data sheet
Product family
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321971494 |
Unpacked
1 |
282 mm x 5 mm x 19 mm |
21.50 g |
0.03 dm³ |
| 4008321971500 |
Shipping carton box
8 |
317 mm x 46 mm x 265 mm |
362.00 g |
3.86 dm³ |
