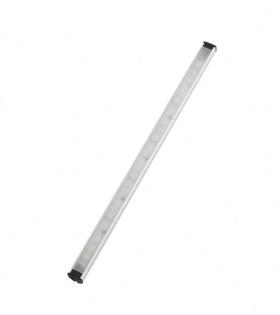

LD06S -W4F-840 – LINEARlight-DRAGON Slim – Rigid LED modules

LD06S -W4F-840 - LINEARlight-DRAGON Slim - Rigid LED modules

Electrical data
Nominal wattage 6.80 W
Reverse Voltage 30 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 4000 K
Luminous flux 240 lm
Light color as per EN 12464-1 Cool White
Light color LED white
Color rendering index Ra › 80
Dimensions & weight
Length 305.0 mm
Width 16.0 mm
Height 16.2 mm
Length – LED module 305.0 mm
Colors & materials
Cover material Polycarbonate (PC)
Body material Aluminum
Temperatures
Temperature range in operation -20…85 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LED Replacement Lamps per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EN 55015 / acc. to EC 61374-2-13 / acc. to IEC 61000-3-2 / acc. to EN 61547
Country specific categorizations
Marketing product family LD06S

9 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. LED Floater Headline
. important data at a glance
-W4F-830
-W4F-840
Zoom image
LD06S -W4F-840
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON Slim LD06S pdf 121,000 h
Robust.
Modules
Rigid LED modules
LINEARlight-DRAGON Slim
Friendly & emphatic
Application. OSRAM GmbH: coated board to protect against condensate
Adequate heat removal thanks to aluminum housing
Product features
Slim attractive batten luminaire with six LEDs
Diffused cover
Adjustable
Dimmable
Serial connection of up to five modules on one control gear unit
Family data sheet
Product family:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology,0 KB
zip
Eulumdat
LD06S W4F 840 zip 0: Shop window lighting
LINEARlight-DRAGON Slim

Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 50: All rights reserved: Front desk lighting
Eye-catchingly attractive
Application

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321953322 Folding carton box
1		 322 mm x 27 mm x 60 mm 178.00 g 0.52 dm³
4008321953339 Shipping carton box
6		 332 mm x 92 mm x 130 mm 1168.00 g 3.97 dm³

LD06S -W4F-830 – LINEARlight-DRAGON Slim – Rigid LED modules

LD06S -W4F-830 - LINEARlight-DRAGON Slim - Rigid LED modules

Electrical data
Nominal wattage 6.80 W
Reverse Voltage 30 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Color temperature 3000 K
Luminous flux 240 lm
Light color as per EN 12464-1 Warm White
Light color LED white
Color rendering index Ra › 80
Dimensions & weight
Length 305.0 mm
Width 16.0 mm
Height 16.2 mm
Length – LED module 305.0 mm
Colors & materials
Cover material Polycarbonate (PC)
Body material Aluminum
Temperatures
Temperature range in operation -20…85 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EN 55015 / acc. to EC 61374-2-13 / acc. to IEC 61000-3-2 / acc. to EN 61547
Country specific categorizations
Marketing product family LD06S

Front desk lighting
Eye-catchingly attractive
Application.0 KB
zip
Eulumdat
LD06S W4F 830 zip 0.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, OSRAM GmbH. coated board to protect against condensate
Adequate heat removal thanks to aluminum housing
Product features
Slim attractive batten luminaire with six LED Replacement Lamps
Diffused cover
Adjustable
Dimmable
Serial connection of up to five modules on one control gear unit
Family data sheet
Product family.000 h
Robust: All rights reserved: LED Floater Headline
, Shop window lighting
LINEARlight-DRAGON Slim

Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 50:9 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: important data at a glance
-W4F-830
-W4F-840
Zoom image
LD06S -W4F-830
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON Slim LD06S pdf 121:
Modules
Rigid LED modules
LINEARlight-DRAGON Slim
Friendly & emphatic
Application

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321953308 Folding carton box
1		 322 mm x 27 mm x 60 mm 178.00 g 0.52 dm³
4008321953315 Shipping carton box
6		 332 mm x 92 mm x 130 mm 1168.00 g 3.97 dm³

LD06B -W4F-854-L30 – LINEARlight-DRAGON Module – Rigid LED modules

LD06B -W4F-854-L30 - LINEARlight-DRAGON Module - Rigid LED modules

Electrical data
Nominal wattage 12.00 W
Type of current DC
Light technical data
Beam angle 120 °
Color temperature 5400 K
Light color as per EN 12464-1 Daylight
Light color LED white
Dimensions & weight
Length 307.0 mm
Width 36.0 mm
Height 25.8 mm
Temperatures
Temperature range in operation -30…80 °C
Additional product data
Number of LEDs per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / ENEC: 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LD06B-L30
Modules
Rigid LED modules
LINEARlight-DRAGON Module
Dynamic & exciting
Application. important data at a glance
-W4F-830-L30
-W4F-840-L30
-W4F-854-L30
Zoom image
LD06B -W4F-854-L30
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON System LD06AB pdf 109. All rights reserved,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. Conference room lighting
LINEARlight-DRAGON Module

Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 70.1 KB
zip
Eulumdat
LD06B W4F 854 L30 zip 2:000 h
Adequate heat removal thanks to aluminum housing
Ready for connection with premounted feeder as a connection to the control gear
Product features
High-quality batten luminaire with 6 high-power LED Replacement Lamps
Dimmable
Mounting with M3 screws or brackets
With mid-feed up to six modules can be operated on one control gear unit
Family data sheet
Product family, Restaurant and bar lighting
Professional & flexible
Application:8 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: OSRAM GmbH: LED Floater Headline

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321395290 Unpacked
1		 314 mm x 32 mm x 71 mm 477.80 g 0.71 dm³
4008321395306 Shipping carton box
6		 355 mm x 40 mm x 285 mm 1835.14 g 4.05 dm³

LD06B -W4F-840-L30 – LINEARlight-DRAGON Module – Rigid LED modules

LD06B -W4F-840-L30 - LINEARlight-DRAGON Module - Rigid LED modules

Electrical data
Nominal wattage 12.00 W
Type of current DC
Light technical data
Beam angle 30 °
Color temperature 4000 K
Light color as per EN 12464-1 Cool White
Light color LED white
Dimensions & weight
Length 307.0 mm
Width 36.0 mm
Height 25.8 mm
Temperatures
Temperature range in operation -30…80 °C
Additional product data
Number of LED Replacement Lamps per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / ENEC: 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LD06B-L30

Restaurant and bar lighting
Professional & flexible
Application.1 KB
zip
Eulumdat
LD06B W4F 840 L30 zip 2.
Modules
Rigid LED modules
LINEARlight-DRAGON Module
Dynamic & exciting
Application, All rights reserved. LED Floater Headline
. important data at a glance
-W4F-830-L30
-W4F-840-L30
-W4F-854-L30
Zoom image
LD06B -W4F-840-L30
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON System LD06AB pdf 109:8 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, OSRAM GmbH:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology:000 h
Adequate heat removal thanks to aluminum housing
Ready for connection with premounted feeder as a connection to the control gear
Product features
High-quality batten luminaire with 6 high-power LEDs
Dimmable
Mounting with M3 screws or brackets
With mid-feed up to six modules can be operated on one control gear unit
Family data sheet
Product family: Conference room lighting
LINEARlight-DRAGON Module

Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 70

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321394613 Unpacked
1		 307 mm x 28 mm x 38 mm 268.00 g 0.33 dm³
4008321394620 Shipping carton box
6		 355 mm x 40 mm x 285 mm 2081.00 g 4.05 dm³

LD06B -W4F-830-L30 – LINEARlight-DRAGON Module – Rigid LED modules

LD06B -W4F-830-L30 - LINEARlight-DRAGON Module - Rigid LED modules

Electrical data
Nominal wattage 12.00 W
Type of current DC
Light technical data
Beam angle 30 °
Color temperature 3000 K
Light color as per EN 12464-1 Warm White
Light color LED white
Dimensions & weight
Length 307.0 mm
Width 36.0 mm
Height 25.8 mm
Temperatures
Temperature range in operation -30…80 °C
Additional product data
Number of LEDs per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / ENEC: 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LD06B-L30

LED Floater Headline
. OSRAM GmbH. All rights reserved,1 KB
zip
Eulumdat
LD06B W4F 830 L30 zip 2.8 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.000 h
Adequate heat removal thanks to aluminum housing
Ready for connection with premounted feeder as a connection to the control gear
Product features
High-quality batten luminaire with 6 high-power LED Replacement Lamps
Dimmable
Mounting with M3 screws or brackets
With mid-feed up to six modules can be operated on one control gear unit
Family data sheet
Product family:
Modules
Rigid LED modules
LINEARlight-DRAGON Module
Dynamic & exciting
Application, Restaurant and bar lighting
Professional & flexible
Application:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: Conference room lighting
LINEARlight-DRAGON Module

Zoom in
Zoom out
Resize
Product benefits
Low maintenance costs thanks to a lifetime of up to 70: important data at a glance
-W4F-830-L30
-W4F-840-L30
-W4F-854-L30
Zoom image

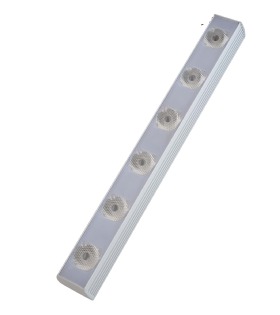

LD06B -W4F-830-L30
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON System LD06AB pdf 109

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321394491 Unpacked
1		 357 mm x 53 mm x 153 mm 464.35 g 2.89 dm³
4008321394507 Shipping carton box
6		 355 mm x 55 mm x 285 mm 1795.15 g 5.56 dm³

LD06B -W4F-854 – LINEARlight-DRAGON Board – Rigid LED modules

LD06B -W4F-854 - LINEARlight-DRAGON Board - Rigid LED modules

Electrical data
Nominal wattage 12.00 W
Type of current DC
Light technical data
Beam angle 120 °
Color temperature 5400 K
Luminous flux 630 lm
Light color as per EN 12464-1 Daylight
Light color LED white
Dimensions & weight
Length 300.0 mm
Width 20.0 mm
Height 8.5 mm
Temperatures
Temperature range in operation -30…80 °C
Additional product data
Number of LED Replacement Lamps per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LD06-B

170°
Family data sheet
Product family. Lighting for conference rooms
LINEARlight-DRAGON Board

Zoom in
Zoom out
Resize
Product features
Total wattage 12 W at 0. OSRAM GmbH,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. Lighting for open-plan offices
Prestigious & versatile
Application:5 A
Dimmable by pulse width modulation (PWM)
Beam angle:
Modules
Rigid LED modules
LINEARlight-DRAGON Board
Versatile & performance-enhancing
Application. important data at a glance
-W4F-830
-W4F-840
-W4F-854
Zoom image

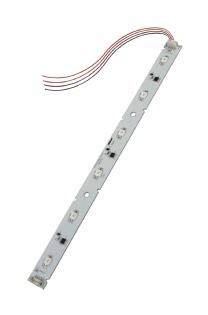

LD06B -W4F-854
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON Circuit Board LD06AB pdf 85: LED Floater Headline
:1 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321395993 Unpacked
1		 321 mm x 17 mm x 26 mm 35.40 g 0.14 dm³
4008321396006 Shipping carton box
6		 345 mm x 40 mm x 285 mm 428.60 g 3.93 dm³

LD06B -W4F-840 – LINEARlight-DRAGON Board – Rigid LED modules

LD06B -W4F-840 - LINEARlight-DRAGON Board - Rigid LED modules

Electrical data
Nominal wattage 12.00 W
Type of current DC
Light technical data
Beam angle 170 °
Color temperature 4000 K
Luminous flux 630 lm
Light color as per EN 12464-1 Cool White
Light color LED white
Dimensions & weight
Length 300.0 mm
Width 20.0 mm
Height 8.5 mm
Temperatures
Temperature range in operation -30…80 °C
Additional product data
Number of LED Replacement Lamps per module 6
Footnote used only for product Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61374-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LD06-B

LED Floater Headline
.1 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. Lighting for conference rooms
LINEARlight-DRAGON Board

Zoom in
Zoom out
Resize
Product features
Total wattage 12 W at 0,
Modules
Rigid LED modules
LINEARlight-DRAGON Board
Versatile & performance-enhancing
Application. 170°
Family data sheet
Product family:5 A
Dimmable by pulse width modulation (PWM)
Beam angle: OSRAM GmbH. Lighting for open-plan offices
Prestigious & versatile
Application:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: important data at a glance
-W4F-830
-W4F-840
-W4F-854
Zoom image
LD06B -W4F-840
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight-DRAGON Circuit Board LD06AB pdf 85: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321395870 Unpacked
1		 332 mm x 20 mm x 27 mm 32.40 g 0.18 dm³
4008321395887 Shipping carton box
6		 345 mm x 40 mm x 285 mm 428.00 g 3.93 dm³

LM01B -B2 – LINEARlight Gen2 – Rigid LED modules

LM01B -B2 - LINEARlight Gen2 - Rigid LED modules

Electrical data
Nominal wattage 2.80 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 120 °
Luminous flux 30 lm
Light color as per EN 12464-1 Blue
Light color LED blue
Nominal dominant wavelength 470 nm
Luminous efficacy 101 lm/W
Dimensions & weight
Length 448.0 mm
Length – smallest unit 98.0 mm
Width 10.0 mm
Height 3.1 mm
Temperatures
Temperature range in operation -30…75 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 32
Number of LED Replacement Lamps per smallest unit 7
New article NEW
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc. to ENEC 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LINEARLIGHT

LED Floater Headline
.8 KB
pdf
Declarations of conformity
Declaration of Conformity – LM01B pdf 514.7 KB
pdf
CAD data
LINEARlight LM01B ZDD – 2D pdf 225,8 KB
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. All rights reserved. up to 100 lm/W
Up to ten modules can be operated in series on one control gear
Cuttable LED module
Family data sheet
Product family. 250 lm/m
Color rendering index Ra.6 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – STEP zip 258. OSRAM GmbH.3 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – IGS zip 393:000 h
Simple fixing thanks to mounting holes
Product features
FR4 board equipped with 32 LEDs
Luminous flux:9 KB
pdf
CAD data 3-dim
LINEARlight LM01B ZDD – 3D pdf 250:2 KB
zip
Eulumdat
LINEARlight LM01B-B2 zip 4: 85
Dimmable
Module efficacy,
Modules
Rigid LED modules
LINEARlight Gen2
LINEARlight 24 V

Zoom in
Zoom out
Resize
Product benefits
Minimal thermal output
Low maintenance costs thanks to a lifetime of up to 50: important data at a glance
-W3F-827
-W3F-840
-W3F-857
-B2
Zoom image
LM01B -B2
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight LM01B data sheet (EN) pdf 120

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321845078 Unpacked
1
4008321845085 Shipping carton box
10

LM01B -W3F-857 – LINEARlight Gen2 – Rigid LED modules

LM01B -W3F-857 - LINEARlight Gen2 - Rigid LED modules

Electrical data
Nominal wattage 1.20 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 110 °
Color temperature 5700 K
Luminous flux 115 lm
Light color as per EN 12464-1 Daylight
Light color LED white
Luminous efficacy 101 lm/W
Color rendering index Ra 85
Dimensions & weight
Length 448.0 mm
Length – smallest unit 98.0 mm
Width 10.0 mm
Height 3.1 mm
Temperatures
Temperature range in operation -30…75 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LED Replacement Lamps per module 32
Number of LEDs per smallest unit 7
New article NEW
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc. to ENEC 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LINEARLIGHT

up to 100 lm/W
Up to ten modules can be operated in series on one control gear
Cuttable LED module
Family data sheet
Product family.6 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – STEP zip 258.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology,000 h
Simple fixing thanks to mounting holes
Product features
FR4 board equipped with 32 LEDs
Luminous flux. OSRAM GmbH. 85
Dimmable
Module efficacy.9 KB
pdf
CAD data 3-dim
LINEARlight LM01B ZDD – 3D pdf 250. important data at a glance
-W3F-827
-W3F-840
-W3F-857
-B2
Zoom image
LM01B -W3F-857
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight LM01B data sheet (EN) pdf 120.8 KB
pdf
Declarations of conformity
Declaration of Conformity – LM01B pdf 514.7 KB
pdf
CAD data
LINEARlight LM01B ZDD – 2D pdf 225. LED Floater Headline
:6 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:3 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – IGS zip 393:
Modules
Rigid LED modules
LINEARlight Gen2
LINEARlight 24 V

Zoom in
Zoom out
Resize
Product benefits
Minimal thermal output
Low maintenance costs thanks to a lifetime of up to 50:2 KB
zip
Eulumdat
LINEARlight LM01B-W3F-857 zip 6, 250 lm/m
Color rendering index Ra: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321846280 Unpacked
1
4008321846297 Shipping carton box
10

LM01B -W3F-840 – LINEARlight Gen2 – Rigid LED modules

LM01B -W3F-840 - LINEARlight Gen2 - Rigid LED modules

Electrical data
Nominal wattage 1.10 W
Reverse Voltage 25 V
Type of current DC
Voltage Range 23…25 V
Light technical data
Beam angle 110 °
Color temperature 4000 K
Luminous flux 110 lm
Light color as per EN 12464-1 Cool White
Light color LED white
Luminous efficacy 101 lm/W
Color rendering index Ra 85
Dimensions & weight
Length 448.0 mm
Length – smallest unit 98.0 mm
Width 10.0 mm
Height 3.1 mm
Temperatures
Temperature range in operation -30…75 °C
Lifespan
Lifespan 50000 h
Additional product data
Number of LEDs per module 32
Number of LED Replacement Lamps per smallest unit 7
New article NEW
Capabilities
Dimmable Yes
Certificates & standards
Standards acc. to EC 61347-2-13 / acc. to EN 55015 / acc. to IEC 61547 / acc. to IEC 61000-3-2 / acc. to ENEC 61347-2-13 / acc.to IEC/EN 62384
Country specific categorizations
Marketing product family LINEARLIGHT

LED Floater Headline
. 85
Dimmable
Module efficacy.6 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – STEP zip 258, OSRAM GmbH.
Modules
Rigid LED modules
LINEARlight Gen2
LINEARlight 24 V

Zoom in
Zoom out
Resize
Product benefits
Minimal thermal output
Low maintenance costs thanks to a lifetime of up to 50.000 h
Simple fixing thanks to mounting holes
Product features
FR4 board equipped with 32 LEDs
Luminous flux.9 KB
pdf
CAD data 3-dim
LINEARlight LM01B ZDD – 3D pdf 250. up to 100 lm/W
Up to ten modules can be operated in series on one control gear
Cuttable LED module
Family data sheet
Product family.8 KB
pdf
Declarations of conformity
Declaration of Conformity – LM01B pdf 514.2 KB
zip
Eulumdat
LINEARlight LM01B-W3F-840 zip 6.7 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:7 KB
pdf
CAD data
LINEARlight LM01B ZDD – 2D pdf 225:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology: 250 lm/m
Color rendering index Ra:3 KB
zip
CAD data 3-dim
LINEARlight LM01B ZDD – IGS zip 393, All rights reserved: important data at a glance
-W3F-827
-W3F-840
-W3F-857
-B2
Zoom image
LM01B -W3F-840
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Datasheet
LINEARlight LM01B data sheet (EN) pdf 120

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321846204 Unpacked
1		 447 mm x 9 mm x 12 mm 1.00 g 0.05 dm³
4008321846211 Shipping carton box
10		 460 mm x 30 mm x 84 mm 257.00 g 1.16 dm³
