Shelves
Glass cabinets
Kitchens
,Product benefits,
Extremely low profile
High value appearance and durability
High brightness thanks to LED technology
Quick and simple installation (Plug & Light)
Areas of application
| Nominal wattage | 20.00 W |
|---|---|
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 0.82 A |
| Operating mode | Electronic control gear (ECG) |
| Color temperature | 3000 K |
|---|---|
| Beam angle | 115 ° |
| Luminous flux | 630 lm |
| Color rendering index Ra | 75 |
| Length | 400.0 mm |
|---|---|
| Width | 54.0 mm |
| Height | 13.0 mm |
| Body material | Aluminum |
|---|---|
| Product color | Silver |
| Cover material | Polymethyl methacrylate (PMMA) |
| Ambient temperature range | …+25 °C |
|---|
| Number of lighting outlets | 10 |
|---|---|
| Equipment | LED |
| Equipped with lamp | Yes |
| New article | NEW |
| Type of installation | Screws |
|---|---|
| Adjustable | No |
| Dimmable | No |
| With on/off switch | Yes |
| Type of connection | Plug transformer |
| Accessories | 2x clips / 4x screws |
| Standards | CE |
|---|---|
| Protection class | III |
| Type of protection | IP20 |
| Protection against ignition and fire | MM |
| Order reference | 40019 |
|---|
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321974501 | Blister 1 |
506 mm x 39 mm x 103 mm | 536.81 g | 2.03 dm³ |
| 4008321974518 | Shipping carton box 4 |
518 mm x 123 mm x 147 mm | 2347.24 g | 9.37 dm³ |
| 4008321981219 | Shipping carton box 24 |
532 mm x 389 mm x 321 mm | 14760.79 g | 66.43 dm³ |
5 m cable on each side
Family data sheet
Product family. All rights reserved. >115°
Equipment / Accessories
External driver with 1,
Indoor LED luminaires
Under cabinet lights
SLIMSHAPE
Superbly planned
Application: important data at a glance
8 W
13 W
8 W SENSOR
13 W SENSOR
Zoom image

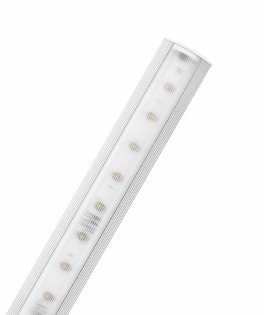

SLIMSHAPE 13 W
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. OSRAM GmbH: LED Floater Headline
: Home office lighting
SLIMSHAPE
Zoom in
Zoom out
Resize
Product benefits
Extremely low profile
High value appearance and durability
High brightness thanks to LED technology
Quick and simple installation (Plug & Light)
Areas of application
Shelves
Glass cabinets
Kitchens
Product features
Available with on/off switch or sensor
Optics to cover LED and distribute light
Smart batten luminaire
Wide beam angle:
