Product features ,
Available with on/off switch or sensor,
Optics to cover LED and distribute light
Kitchens
High value appearance and durability
High brightness thanks to LED technology
Areas of application
Shelves
Glass cabinets
Quick and simple installation (Plug & Light),Product benefits
Extremely low profile
Electrical data
| Nominal wattage |
20.00 W |
| Nominal voltage |
220…240 V |
| Mains frequency |
50…60 Hz |
| Nominal current |
0.41 A |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
111 ° |
| Luminous flux |
680 lm |
| Color rendering index Ra |
75 |
Dimensions & weight
| Length |
400.0 mm |
| Width |
52.0 mm |
| Height |
14.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
Silver |
| Cover material |
Polymethyl methacrylate (PMMA) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
10 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| New article |
NEW |
Capabilities
| Type of installation |
Screws |
| Adjustable |
No |
| Dimmable |
No |
| With on/off switch |
Yes |
| Type of connection |
Plug transformer |
| Accessories |
2x clips / 4x screws |
Certificates & standards
| Standards |
CE |
| Protection class |
III |
| Type of protection |
IP20 |
| Protection against ignition and fire |
MM |
Country specific categorizations
| Order reference |
40021 |
>115°
Equipment / Accessories
External driver with 1.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology.
Indoor LED luminaires
Under cabinet lights
SLIMSHAPE
Superbly planned
Application, Home office lighting
SLIMSHAPE
Zoom in
Zoom out
Resize
Product benefits
Extremely low profile
High value appearance and durability
High brightness thanks to High Power LED Flood Light technology
Quick and simple installation (Plug & Light)
Areas of application
Shelves
Glass cabinets
Kitchens
Product features
Available with on/off switch or sensor
Optics to cover LED and distribute light
Smart batten luminaire
Wide beam angle: LED Floater Headline
. important data at a glance
8 W
13 W
8 W SENSOR
13 W SENSOR
Zoom image

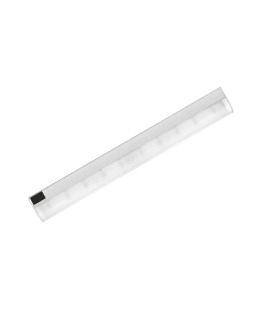

SLIMSHAPE 13 W SENSOR
