>115°
:Product benefits
Extremely low profile
High value appearance and durability
High brightness thanks to LED technology
Quick and simple installation (Plug & Light)
Areas of application
Shelves
Glass cabinets
Kitchens
Product features
Available with on/off switch or sensor
Optics to cover LED and distribute light
Smart batten luminaire
Wide beam angle
Electrical data
| Nominal wattage |
12.00 W |
| Nominal voltage |
220…240 V |
| Mains frequency |
50…60 Hz |
| Nominal current |
0.04 A |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
111 ° |
| Luminous flux |
510 lm |
| Color rendering index Ra |
75 |
Dimensions & weight
| Length |
350.0 mm |
| Width |
52.0 mm |
| Height |
14.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
Silver |
| Cover material |
Polymethyl methacrylate (PMMA) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
6 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| New article |
NEW |
Capabilities
| Type of installation |
Screws |
| Adjustable |
No |
| Dimmable |
No |
| With on/off switch |
Yes |
| Type of connection |
Plug transformer |
| Accessories |
2x clips / 4x screws |
Certificates & standards
| Standards |
CE |
| Protection class |
III |
| Type of protection |
IP20 |
| Protection against ignition and fire |
MM |
Country specific categorizations
| Order reference |
40020 |
LED Floater Headline
. Home office lighting
SLIMSHAPE
Zoom in
Zoom out
Resize
Product benefits
Extremely low profile
High value appearance and durability
High brightness thanks to LED technology
Quick and simple installation (Plug & Light)
Areas of application
Shelves
Glass cabinets
Kitchens
Product features
Available with on/off switch or sensor
Optics to cover LED and distribute light
Smart batten luminaire
Wide beam angle.
Indoor LED luminaires
Under cabinet lights
SLIMSHAPE
Superbly planned
Application, OSRAM GmbH: >115°
Equipment / Accessories
External driver with 1.5 m cable on each side
Family data sheet
Product family: important data at a glance
8 W
13 W
8 W SENSOR
13 W SENSOR
Zoom image

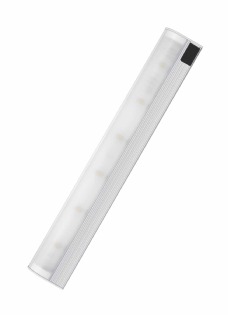

SLIMSHAPE 8 W SENSOR
