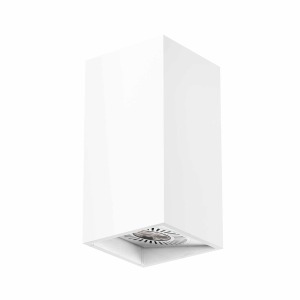

TRESOL Bloc WT – Deco & Living – Indoor LED luminaires
Electrical data
| Nominal wattage |
9.00 W |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Luminous flux |
330 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
170.0 mm |
| Width |
92.0 mm |
| Height |
84.0 mm |
Colors & materials
| Body material |
Polycarbonate (PC) |
| Product color |
White |
| Cover material |
Aluminum |
| Reflector material |
Plastic |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
2 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Lens |
| New article |
NEW |
Capabilities
| Type of installation |
Screws |
| Adjustable |
Yes |
| Dimmable |
No |
| With on/off switch |
No |
| Type of connection |
Fixed (cutting terminal) |
| Accessories |
2x anchors / 2x screws |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
Country specific categorizations
| Order reference |
73239 |
000 K
Up- and Downlight with adjustable light beams
Equipment / Accessories
Equipped with 2 x 4.
Indoor LED luminaires
Deco & Living
TRESOL Bloc
TRESOL Bloc
Zoom in
Zoom out
Resize
Product benefits
High luminous flux
No external electronic control gear required
Areas of application
Decorative effect lighting of walls
Orientation lighting
Wallwasher effect lighting in living rooms.
