TRESOL Cube SI – Wall luminaires – Indoor LED luminaires
Electrical data
| Nominal wattage |
4.50 W |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
30 ° |
| Luminous flux |
165 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
100.0 mm |
| Width |
90.0 mm |
| Height |
123.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
Silver |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Polycarbonate (PC) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
1 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Integrated |
Capabilities
| Type of installation |
Screws |
| Adjustable |
No |
| Dimmable |
No |
| Color management (RGB) |
No |
| With on/off switch |
No |
| Type of connection |
Fixed (cutting terminal) |
| Accessories |
2x anchors / 2x screws / 2x washers |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
Country specific categorizations
| Order reference |
73234 |
important data at a glance
SI
WT
Zoom image

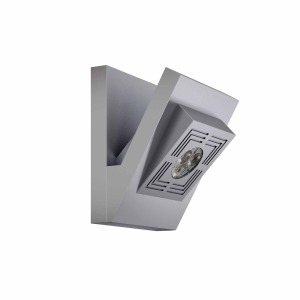

TRESOL Cube SI
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.000 K
High-value aluminum LED wall luminaire
Family data sheet
Product family. All rights reserved, LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology, OSRAM GmbH:
Indoor LED Products luminaires
Wall luminaires
TRESOL Cube
TRESOL Cube
Zoom in
Zoom out
Resize
Product benefits
Compact design
Easy mounting
Product features
Color temperature: 3
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321985507 |
Folding carton box
1 |
208 mm x 100 mm x 105 mm |
504.38 g |
2.18 dm³ |
| 4008321985545 |
Shipping carton box
4 |
416 mm x 235 mm x 123 mm |
2218.52 g |
12.02 dm³ |
