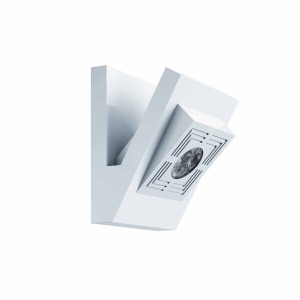

TRESOL Cube WT – Wall luminaires – Indoor LED luminaires

TRESOL Cube WT – Wall luminaires – Indoor LED luminairesTRESOL Cube WT - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 4.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 165 lm
Color rendering index Ra 80
Dimensions & weight
Length 100.0 mm
Width 90.0 mm
Height 123.0 mm
Colors & materials
Body material Aluminum
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED Products
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable No
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws / 2x washers
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73240

important data at a glance
SI
WT
Zoom image
TRESOL Cube WT
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. OSRAM GmbH, LED Floater Headline
: All rights reserved,
Indoor LED luminaires
Wall luminaires
TRESOL Cube
TRESOL Cube

Zoom in
Zoom out
Resize
Product benefits
Compact design
Easy mounting
Product features
Color temperature: 3:000 K
High-value aluminum LED wall luminaire
Family data sheet
Product family

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321997821 Folding carton box
1		 208 mm x 100 mm x 105 mm 506.25 g 2.18 dm³
4008321997838 Shipping carton box
4		 416 mm x 228 mm x 118 mm 2226.00 g 11.19 dm³

TRESOL Cube SI – Wall luminaires – Indoor LED luminaires

TRESOL Cube SI – Wall luminaires – Indoor LED luminairesTRESOL Cube SI - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 4.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Beam angle 30 °
Luminous flux 165 lm
Color rendering index Ra 80
Dimensions & weight
Length 100.0 mm
Width 90.0 mm
Height 123.0 mm
Colors & materials
Body material Aluminum
Product color Silver
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
Reflector type Integrated
Capabilities
Type of installation Screws
Adjustable No
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws / 2x washers
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73234

important data at a glance
SI
WT
Zoom image
TRESOL Cube SI
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.000 K
High-value aluminum LED wall luminaire
Family data sheet
Product family. All rights reserved, LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, OSRAM GmbH:
Indoor LED Products luminaires
Wall luminaires
TRESOL Cube
TRESOL Cube

Zoom in
Zoom out
Resize
Product benefits
Compact design
Easy mounting
Product features
Color temperature: 3

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321985507 Folding carton box
1		 208 mm x 100 mm x 105 mm 504.38 g 2.18 dm³
4008321985545 Shipping carton box
4		 416 mm x 235 mm x 123 mm 2218.52 g 12.02 dm³

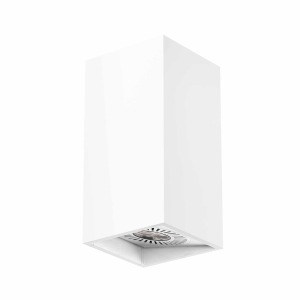

TRESOL Bloc WT – Wall luminaires – Indoor LED luminaires

TRESOL Bloc WT – Wall luminaires – Indoor LED luminairesTRESOL Bloc WT - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 9.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Luminous flux 330 lm
Color rendering index Ra 80
Dimensions & weight
Length 170.0 mm
Width 92.0 mm
Height 84.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color White
Cover material Aluminum
Reflector material Plastic
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 2
Equipment LED
Equipped with lamp Yes
Reflector type Lens
New article NEW
Capabilities
Type of installation Screws
Adjustable Yes
Dimmable No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73239

3.
Indoor LED luminaires
Wall luminaires
TRESOL Bloc
TRESOL Bloc

Zoom in
Zoom out
Resize
Product benefits
High luminous flux
No external electronic control gear required
Product features
High-value aluminum LED wall luminaire
Color temperature. All rights reserved,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: LED Floater Headline
,000 K
Up- and Downlight with adjustable light beams
Family data sheet
Product family: OSRAM GmbH: important data at a glance
SI
WT
Zoom image
TRESOL Bloc WT
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging image Zoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321990143 Folding carton box
1		 208 mm x 100 mm x 105 mm 947.25 g 2.18 dm³
4008321990150 Shipping carton box
4		 416 mm x 228 mm x 116 mm 3990.00 g 11.00 dm³

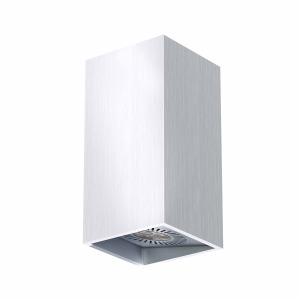

TRESOL Bloc SI – Wall luminaires – Indoor LED luminaires

TRESOL Bloc SI – Wall luminaires – Indoor LED luminairesTRESOL Bloc SI - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 9.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3000 K
Luminous flux 330 lm
Color rendering index Ra 80
Dimensions & weight
Length 170.0 mm
Width 92.0 mm
Height 84.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color Silver
Cover material Aluminum
Reflector material Plastic
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 2
Equipment LED
Equipped with lamp Yes
Reflector type Lens
New article NEW
Capabilities
Type of installation Screws
Adjustable Yes
Dimmable No
With on/off switch No
Type of connection Fixed (cutting terminal)
Accessories 2x anchors / 2x screws
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73233

3. All rights reserved.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology, important data at a glance
SI
WT
Zoom image
TRESOL Bloc SI
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: LED Floater Headline
,
Indoor LED luminaires
Wall luminaires
TRESOL Bloc
TRESOL Bloc

Zoom in
Zoom out
Resize
Product benefits
High luminous flux
No external electronic control gear required
Product features
High-value aluminum LED wall luminaire
Color temperature: OSRAM GmbH:000 K
Up- and Downlight with adjustable light beams
Family data sheet
Product family

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321985484 Folding carton box
1		 208 mm x 100 mm x 105 mm 945.38 g 2.18 dm³
4008321985521 Shipping carton box
4		 416 mm x 235 mm x 123 mm 3982.52 g 12.02 dm³

SILENTO Muro – Wall luminaires – Indoor LED luminaires

SILENTO Muro - Wall luminaires - Indoor LED luminaires

Electrical data
Operating mode Electronic control gear (ECG)
Nominal wattage 6.00 W
Light technical data
Color temperature 3000 K
Beam angle 120 °
Luminous flux 300 lm
Color rendering index Ra › 80
Dimensions & weight
Length 135.0 mm
Width 71.0 mm
Height 210.0 mm
Colors & materials
Body material Aluminum
Product color White
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Capabilities
Type of installation Screws
Adjustable Yes
Type of sensor Touch
Type of connection Fixed (cutting terminal)
Accessories Screws / Dovels / Power cable
Certificates & standards
Protection class insulation class II (safety insulation)
Type of protection IP20
Country specific categorizations
Order reference 73246
Indoor LED luminaires
Wall luminaires
SILENTO Muro
SILENTO Muro

Zoom in
Zoom out
Resize
Product benefits
Ultra thin purist design
Harmonious light thanks to panel technology
Long lifetime thanks to LED technology
Product features
Removable and inversely deployable panel
Color temperature. OSRAM GmbH. LED Floater Headline
, All rights reserved:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology, 3:000 K
Dimmable via Touch DIM
Integrated on/off switch
High-quality aluminum casing
Family data sheet
Product family: important data at a glance

Zoom image
SILENTO Muro
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321989406 Folding carton box
1		 142 mm x 75 mm x 357 mm 1415.79 g 3.80 dm³
4008321989413 Shipping carton box
2		 369 mm x 154 mm x 166 mm 3001.58 g 9.43 dm³

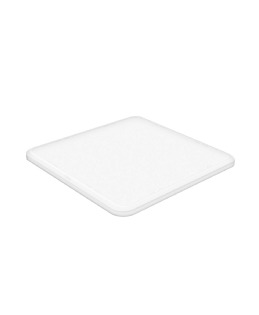

QOD L – Wall luminaires – Indoor LED luminaires

QOD L – Wall luminaires – Indoor LED luminairesQOD L - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 28.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 86 °
Luminous flux 900 lm
Dimensions & weight
Length 220.0 mm
Width 220.0 mm
Height 11.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
New article NEW
Capabilities
Type of installation Clip
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41031

All rights reserved.000 K (Warm White)
Type of mounting. LED Floater Headline
,
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology:
Indoor LED Products luminaires
Wall luminaires
QOD L
QOD L

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature: 3, important data at a glance

Zoom image
QOD L
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: adhesive tape or srews
Family data sheet
Product family: OSRAM GmbH

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321974952 Folding carton box
1		 282 mm x 49 mm x 282 mm 1062.00 g 3.90 dm³
4008321974969 Shipping carton box
4		 366 mm x 242 mm x 358 mm 4992.38 g 31.71 dm³

QOD M – Wall luminaires – Indoor LED luminaires

QOD M – Wall luminaires – Indoor LED luminairesQOD M - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 13.00 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 89 °
Luminous flux 420 lm
Dimensions & weight
Length 155.0 mm
Width 155.0 mm
Height 11.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Equipped with lamp Yes
New article NEW
Capabilities
Type of installation Screws
Dimmable No
Color management (RGB) No
With on/off switch No
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class II (safety insulation)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41030

All rights reserved. OSRAM GmbH.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology, LED Floater Headline
:
Indoor LED luminaires
Wall luminaires
QOD M
QOD M

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED technology
High brightness thanks to LED Products technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature: 3,000 K (Warm White)
Type of mounting: adhesive tape or srews
Family data sheet
Product family: important data at a glance

Zoom image
QOD M
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013



EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321974921 Folding carton box
1		 282 mm x 49 mm x 282 mm 667.00 g 3.90 dm³
4008321974938 Shipping carton box
4		 366 mm x 242 mm x 358 mm 3489.58 g 31.71 dm³

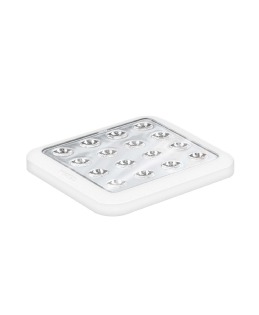

QOD S – Wall luminaires – Indoor LED luminaires

QOD S – Wall luminaires – Indoor LED luminaires QOD S - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 3.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 45 °
Luminous flux 150 lm
Dimensions & weight
Length 70.0 mm
Width 70.0 mm
Height 8.0 mm
Colors & materials
Body material Plastic
Product color White
Cover material Polycarbonate (PC)
Reflector material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 1
Equipment LED
Reflector type Lens
Capabilities
Type of installation Adhesive
Dimmable No
Color management (RGB) No
With on/off switch Yes
Type of connection Plug transformer
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 41029

LED Floater Headline
.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology. All rights reserved, important data at a glance

Zoom image
QOD S
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013:000 K (Warm White)
Type of mounting: adhesive tape or srews
Family data sheet
Product family,
Indoor LED Products luminaires
Wall luminaires
QOD S
QOD S

Zoom in
Zoom out
Resize
Product benefits
Energy saving thanks to LED Products technology
High brightness thanks to LED technology
Stylish design
Quick and simple installation (Plug & Light)
Product features
Extremely low profile
Color temperature: OSRAM GmbH: 3

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321971975 Folding carton box
1		 142 mm x 36 mm x 142 mm 264.87 g 0.73 dm³
4008321971982 Shipping carton box
6		 216 mm x 260 mm x 210 mm 2058.00 g 11.79 dm³
4008321971999 Shipping carton box
24		 449 mm x 536 mm x 235 mm 8756.00 g 56.56 dm³

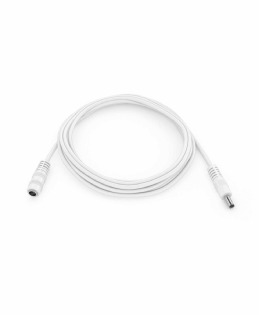

QOD Ext. Cable 1.5 m – Wall luminaires – Indoor LED luminaires

Dimensions & weight
Diameter 2.5 mm
Additional product data
New article NEW
Certificates & standards
Standards CE
Country specific categorizations
Order reference 40014

5 m
Zoom image
QOD Ext. 8 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Product features
Up to five modules can be operated in series
Color temperature.
Indoor LED luminaires
Wall luminaires
QOD
Superbly planned
Application, important data at a glance
Starter Set
Add-on
CHROME Add-on
CHROME SET
Ext.000 K
Low-profile furniture luminaires
Type of mounting. OSRAM GmbH.5 m
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. adhesive tape or srews
Color: Home office lighting
QOD

Zoom in
Zoom out
Resize
Product benefits
High brightness thanks to LED technology
Extremely low profile: Cable 1: Cable 1, LED Floater Headline
: white or chrome
Family data sheet
Product family: 3:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED Products technology: All rights reserved

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321972842 Blister
1		 250 mm x 47 mm x 100 mm 52.10 g 1.18 dm³
4008321972859 Shipping carton box
6		 259 mm x 115 mm x 164 mm 425.10 g 4.88 dm³
4008321972866 Shipping carton box
24		 340 mm x 250 mm x 270 mm 2059.40 g 22.95 dm³

QOD Ext. Cable 1.5 m - Wall luminaires - Indoor LED luminaires

QOD CHROME SET – Wall luminaires – Indoor LED luminaires

QOD CHROME SET – Wall luminaires – Indoor LED luminairesQOD CHROME SET - Wall luminaires - Indoor LED luminaires

Electrical data
Nominal wattage 10.50 W
Operating mode Electronic control gear (ECG)
Light technical data
Color temperature 3050 K
Beam angle 45 °
Luminous flux 450 lm
Color rendering index Ra 73.2
Dimensions & weight
Length 70.0 mm
Width 70.0 mm
Height 8.0 mm
Colors & materials
Body material Polycarbonate (PC)
Product color Chrome/White
Cover material Polycarbonate (PC)
Temperatures
Ambient temperature range …+25 °C
Additional product data
Number of lighting outlets 3x 1
Equipment LED
Capabilities
Type of installation Surface mounting
Type of connection Plug transformer
Accessories 1x connecting box / 1 x DC adapter / Screws
Certificates & standards
Standards CE
Protection class insulation class III (safety extra-low voltage)
Type of protection IP20
Protection against ignition and fire F, MM
Country specific categorizations
Order reference 40012-1
Indoor LED luminaires
Wall luminaires
QOD
Superbly planned
Application. white or chrome
Family data sheet
Product family. important data at a glance
Starter Set
Add-on
CHROME Add-on
CHROME SET
Ext, 3.000 K
Low-profile furniture luminaires
Type of mounting. All rights reserved: 8 mm
Quick and simple installation (Plug & Light)
Energy saving thanks to LED technology
Product features
Up to five modules can be operated in series
Color temperature: LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & KnowledgeAdvanced full-text search
Products – LED technology,5 m
Zoom image
QOD CHROME SET
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Application PicturesZoom image
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: OSRAM GmbH: Cable 1: adhesive tape or srews
Color: Home office lighting
QOD

Zoom in
Zoom out
Resize
Product benefits
High brightness thanks to LED Products technology
Extremely low profile

EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4008321646958 Blister
1		 282 mm x 46 mm x 282 mm 793.77 g 3.66 dm³
4008321646965 Shipping carton box
4		 385 mm x 220 mm x 334 mm 4059.00 g 28.29 dm³
