TRESOL Cube WT – Deco & Living – Indoor LED luminaires
Electrical data
| Nominal wattage |
4.50 W |
| Mains frequency |
50…60 Hz |
| Operating mode |
Electronic control gear (ECG) |
Light technical data
| Color temperature |
3000 K |
| Beam angle |
30 ° |
| Luminous flux |
165 lm |
| Color rendering index Ra |
80 |
Dimensions & weight
| Length |
100.0 mm |
| Width |
90.0 mm |
| Height |
123.0 mm |
Colors & materials
| Body material |
Aluminum |
| Product color |
White |
| Cover material |
Polycarbonate (PC) |
| Reflector material |
Polycarbonate (PC) |
Temperatures
| Ambient temperature range |
…+25 °C |
Additional product data
| Number of lighting outlets |
1 |
| Equipment |
LED |
| Equipped with lamp |
Yes |
| Reflector type |
Integrated |
Capabilities
| Type of installation |
Screws |
| Adjustable |
No |
| Dimmable |
No |
| Color management (RGB) |
No |
| With on/off switch |
No |
| Type of connection |
Fixed (cutting terminal) |
| Accessories |
2x anchors / 2x screws / 2x washers |
Certificates & standards
| Standards |
CE |
| Protection class |
insulation class II (safety insulation) |
| Type of protection |
IP20 |
Country specific categorizations
| Order reference |
73240 |
5 W high-power OSRAM Golden Dragon Plus LED
Family data sheet
Product family. OSRAM GmbH. 3, All rights reserved: important data at a glance
SI
WT
Zoom image

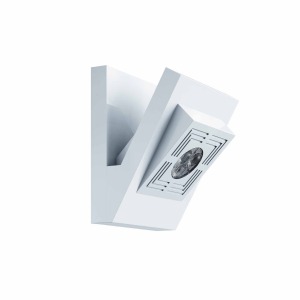

TRESOL Cube WT
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – High Power LED Flood Light technology,
Indoor LED luminaires
Deco & Living
TRESOL Cube
TRESOL Cube
Zoom in
Zoom out
Resize
Product benefits
Compact design
Easy mounting
Areas of application
Living rooms
Corridors
Entrance lighting
Product features
Color temperature:000 K
High-value aluminum LED wall luminaire
Equipment / Accessories
Equipped with 2 x 4: LED Floater Headline
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321997821 |
Folding carton box
1 |
208 mm x 100 mm x 105 mm |
506.25 g |
2.18 dm³ |
| 4008321997838 |
Shipping carton box
4 |
416 mm x 228 mm x 118 mm |
2226.00 g |
11.19 dm³ |
