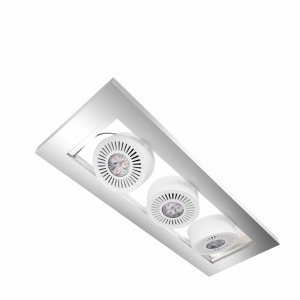

TRESOL Trio Ceiling – Deco & Living – Indoor LED luminaires
| Nominal wattage | 13.50 W |
|---|---|
| Mains frequency | 50…60 Hz |
| Operating mode | Electronic control gear (ECG) |
| Color temperature | 3000 K |
|---|---|
| Beam angle | 30 ° |
| Luminous flux | 495 lm |
| Color rendering index Ra | 80 |
| Length | 400.0 mm |
|---|---|
| Width | 150.0 mm |
| Height | 91.0 mm |
| Body material | Polycarbonate (PC)/Aluminum |
|---|---|
| Product color | White |
| Cover material | Polycarbonate (PC) |
| Reflector material | Polycarbonate (PC) |
| Ambient temperature range | …+25 °C |
|---|
| Number of lighting outlets | 3 |
|---|---|
| Equipment | LED |
| Equipped with lamp | Yes |
| Reflector type | Integrated |
| Type of installation | Screws |
|---|---|
| Adjustable | Yes |
| Dimmable | No |
| With on/off switch | No |
| Type of connection | Fixed (cutting terminal) |
| Accessories | 2x anchors / 6x screws / 2x mounting kits |
| Standards | CE |
|---|---|
| Protection class | insulation class II (safety insulation) |
| Type of protection | IP20 |
| Order reference | 73237 |
|---|
Deco & Living
TRESOL Trio Ceiling
TRESOL Trio CeilingZoom in
Zoom out
Resize
Product benefits
Adjustable modules (rotation angle.000 K (Warm White)
Family data sheet
Product family.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology, LED Floater Headline
: 330°) for easy direction of light output
High light output thanks to high-power LED
Areas of application
Living rooms
Corridors
Product features
Ceiling LED luminaires with aluminum frame in high value design
Color temperature, All rights reserved: 3: OSRAM GmbH: important data at a glance
Zoom image
TRESOL Trio Ceiling
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Product line drawing with numbersZoom image
Others graphicsZoom image
Packaging imageZoom image
Application PicturesZoom image
Packaging information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321989314 | Folding carton box 1 |
457 mm x 102 mm x 198 mm | 1344.85 g | 9.23 dm³ |
| 4008321989338 | Shipping carton box 4 |
479 mm x 545 mm x 288 mm | 7448.10 g | 75.18 dm³ |
