| Nominal wattage | 58.00 W |
|---|---|
| Reverse Voltage | 25 V |
| Type of current | DC |
| Voltage Range | 23…25 V |
| Beam angle | 120 ° |
|---|---|
| Color temperature | 6500 K |
| Luminous flux | 5076 lm |
| Light color as per EN 12464-1 | Daylight |
| Light color LED | white |
| Color rendering index Ra | › 85 |
| Length | 6000.0 mm |
|---|---|
| Width | 8.0 mm |
| Height | 2.1 mm |
| Length – LED module | 6000.0 mm |
| Lifespan | 50000 h |
|---|
| Number of LEDs per module | 720 |
|---|
| Dimmable | Yes |
|---|
| Marketing product family | LF06S |
|---|
important data at a glance
Product video
-W3F-827
-W3F-830
-W3F-840
-W3F-850
-W3F-865
Zoom image

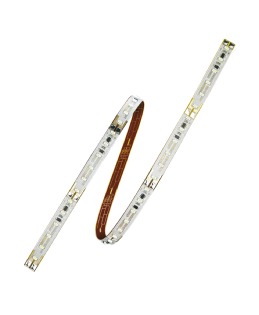

LF06S -W3F-865
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321973924 7459402 4030067
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013. up to 840 lm/m
Module efficacy.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology,
Eye-catchingly attractive
Application:: up to 88 lm/W
Salt mist proof
Family data sheet
Product family:: All rights reserved. LED Floater Headline
. Shop window lighting
LINEARlight FLEX ShortPitch
Zoom in
Zoom out
Resize
Product benefits
Very small LED spacing
Product features
Flexible LED strip
Luminous flux. OSRAM GmbH:
Modules
Flexible G24 LED modules
LINEARlight FLEX ShortPitch
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321973924 | Folding carton box 1 |
184 mm x 31 mm x 184 mm | 172.50 g | 1.05 dm³ |
| 4008321973979 | Shipping carton box 8 |
241 mm x 136 mm x 205 mm | 972.00 g | 6.72 dm³ |
