70W High-power LED Tunnel Light IP66

70W High-power LED Tunnel Light IP66

70W High-power LED Tunnel Light IP66

70W High-power LED Tunnel Light IP66 Specification:

  • Input voltage: 120 to 277V, 50/60Hz
  • Power: 70W
  • Input power: 70W
  • CRI: >75Ra
  • Luminance efficiency: 90 to 105lm/W
  • Power efficiency: 0.9
  • THD: <15%
  • Power factor: grater than 0.95%
  • Lamp luminous flux: 6,300 to 7,350lm
  • Temperature of working condition: -20 to +50 degrees Celsius
  • Humidity of working condition: 10 to 90%
  • Average illumination: 68 Lux
  • Product size: 535 x 348 x 145mm
  • IP grade: IP65
  • Lifespan: 30,000 hours

Features:

  • Main material: aluminum alloy + tempered glass2
  • High pressure die casting housing, anti-static powder painting
  • Silicon rubber gasket
  • Tempered glass lens
  • Cree, Lumenmax, Osram or Taiwan chips

Application:

  • Tunnel, freeway, highway, parking lots, off-street areas and more

50W LED Track Lights 150W Comparable to HID

50W LED Track Lights 150W Comparable to HID



50W LED Track Lights 150W Comparable to HID Specification:

  • LED chip brand: Cree XT-E
  • LED chip type: 1-5W single chip
  • LED chip quantity: 24pcs
  • Color temperature: 4,500-5,500K (2,500-5,500K optional)
  • Fixture efficiency: ≥90%
  • Light efficiency (ies): ≥82lm/W
  • Luminous flux (ies): 4,200-4,600lm
  • CRI: ≥70Ra
  • Beam angle: 120 degrees
  • Electrical parameters:
    • Input voltage: 100-277V AC
    • Power frequency: 47-63Hz
    • Output voltage: 30-40V DC
    • Output current: 1.3A (constant current)
    • Total power consumption: 52W±5W
    • LED power consumption: 47W±5W
    • Power efficiency: ≥93%
    • Power factor: ≥0.95
    • Total harmonic distortion: ≤15%
  • Others:
    • HID replacement: 150W
    • Lifespan: ≥50,000hrs
    • Fixture material: aluminum alloy
    • IP rating: IP65/IP67
    • Heatsink surface temperature: 65°C
    • Luminaire base temperature: 70°C
    • Working temperature: -30-60°C
    • Working humidity: 15-90%RH
    • Storing temperature: -40-70°C
    • Net weight: 8.8kg±0.3kg
    • Outer dimensions: 200 x 200 x 175mm
    • Packaging dimensions: 310 x 280 x 320mm
  • Features:
    • Individual high-performance LED light engine with Cree XT-E LED delivering 100lm/W
    • Patented thermal management allows -30 to 60°C ambient working temperature
    • Easiest installation and maintenance experience guaranteed
    • Easiest one-man operating
    • Hinged LED light engine holder
    • Quick connector between LED light engine and driver
    • 2 available mounting options
    • Up to 50,000 hours long lifespan
    • Dimmable and motion sensor control compatible
    • Certificate pending: UL wet location, TUV, design lights consortium, lighting facts

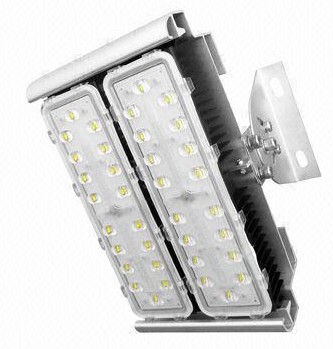

90 to 305V AC Voltage 100W LED Tunnel Light

90 to 305V AC Voltage 100W LED Tunnel Light

90 to 305V AC Voltage 100W LED Tunnel Light

90 to 305V AC Voltage 100W LED Tunnel Light Specification:

  • System power supply: 100W
  • Light source: Philips luminous LED’s
  • LED quantity: 18 pieces x 2
  • Operating voltage: 90 to 305V AC
  • Power efficiency: 91%
  • Power factor: ≥0.95
  • LED luminous flux efficiency: 85lm/W
  • Junction temperature: <70°C
  • Lighting distribution curve: batwing
  • Peak lighting angle: 125°
  • Color temperature: 2700 to 6000K
  • Color rendering index: 70 ±5Ra
  • Temperature:
    • Working: -40 to 50°C
    • Storage: -40 to 50°C
  • Humidity: 10 to 90%
  • Protection for break: 10kV
  • Protection grades:
    • LED module: IP68
    • Power supply: IP67
  • LED service lifespan: ≥50,000 hours
  • Body and shell material: aluminum alloy

Features:

  • Modular pluggable technology and tool-free onsite maintenance
  • Honeycomb and whole structure cooling technology, highly-efficient heat dissipation
  • Ultra-robust module technology, single unit damage does not affect other unit current
  • Intelligent constant current driving technology
  • Breakthrough bottle neck of battery life
  • Ergonomic light distribution to achieve even illuminating effect
  • Free modular serialization and full power range solution

Primary Competitive Advantages:

  • Brand-name Parts
  • Form A
  • Packaging
  • Quality Approvals
  • Country of Origin
  • Green Product
  • Price
  • Reputation
  • Distributorships Offered
  • Guarantee/Warranty
  • Product Features
  • Service
  • Electronic Link
  • International Approvals
  • Product Performance
  • Small Orders Accepted
  • Experienced Staff
  • Military Specifications
  • Prompt Delivery

200W Tunnel Light with Bridgelux Chips

200W Tunnel Light with Bridgelux Chips

200W Tunnel Light with Bridgelux Chips

200W Tunnel Light with Bridgelux Chips Specification:

  • Light body material: aluminum die-casting, not ZhongShan quality, IP65 for the whole lamp
  • Lamp color: black
  • LED chips: US Bridgelux/Taiwan Epistar/Taiwan Qili different chips, for different customers’ choices
  • Brightness: 90 to 100lm/W
  • Beam angle: 45 degrees
  • Dimensions: 968mm (diameter x 285mm)
  • LED color: white/warm white/red/blue/green
  • Chip power: 200W
  • Luminous flux: 18,000 to 20,000lm
  • Lifespan: 50,000 hours
  • Replace metal halide power: 400W
  • Input voltage: 85 to 265V AC
  • IP degree: IP65
  • Warranty: 3 years

Primary Competitive Advantages:

  • Country of Origin
  • Experienced Staff
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Packaging
  • Price
  • Product Features
  • Product Performance
  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • 3-year Warranty

Main Export Markets:

Eastern Europe

North America

Mid East/Africa

Central/South America

Asia

Western Europe

Australasia

LED downlights most suitable for indoor lighting

LED downlights do not occupy the interior space, install LED downlights in the room, because the lamps privacy, do not use the feeling of oppression, the contrary will produce a warm effect. Therefore, you can choose to install multiple lights decoration downlights, reducing space pressure. And usually in hotels, more families, cafes, shopping malls LED downlights use.

LED downlights most suitable for indoor lighting

The applicability of LED downlights are strong in indoor lighting, and also have many other advantages characteristics.

1, LED downlights make the decoration more beautiful. Down to help maintain the overall unity and perfect interior, chandeliers and other lighting does not destroy the settings, the light source hidden in the interior decoration, not exposed, no glare, LED light gives the visual effect is more gentle, evenly.

2, LED energy efficiency help families reduce electricity costs: the same brightness as ordinary energy-saving lamp power consumption is 1/4, a LED downlights for a household electricity savings of tens of dollars a month.

3, LED downlights are unbreakable, recyclable, environmentally friendly and strong: no mercury and other harmful substances, environmental pollution. And its power efficiency, the equivalent of reducing carbon emissions. Conform to promote family “energy saving” life philosophy.

4, The longevity of LED downlight: LED lamp life is about 50,000 hours, six hours a day, life expectancy is 20 years. This can be for a family to purchase a substantial amount of lighting to reduce costs.

50W Warm White Waterproof LED Flood Light

50W Warm White Waterproof LED Flood Light

50W Warm White Waterproof LED Flood Light

50W Warm White Waterproof LED Flood Light Specification:

Type Flood Light
Waterproof IP65
Light Color Warm White
Color Temperature (K) 3000-3500
Material Die-cast Aluminum
Wattage (W) 50
Voltage (V)    110-220 AC / 50-60HZ
Luminous Flux (lm) 4500
Beam Angle   120°
Dimension (mm) 299 x 235 x 135mm
Package Included 1 Flood Light

Kindly Reminder:
1. Please confirm the voltage first. If the voltage of a product is 12V-24V, then you must use a professional LED voltage converter.
2. Please check the specifications of the product carefully before ordering to insure a proper fit.
3. Do not disassemble any bulbs by yourself.
4. Be sure to cut the power off before beginning installation to avoid personal injury.

50W Warm White Waterproof LED Flood Light

White 800LM Outdoor Flood Lamp

White 800LM Outdoor Flood Lamp

White 800LM Outdoor Flood Lamp

White 800LM Outdoor Flood Lamp Specifications

Type Flood Light
Material Aluminium, Glass, Plastic
Light Color Warm White
Color Temperature (K) 3000-3500
Working Temperature    -20°C to 50°C
Wattage (W) 10
Voltage (V) 85-265 AC
Light Source LED
LED Quantity 1
Luminous Flux (lm) 800
Beam Angle    120°
Package Included 1 LED Flood Light

Features:
Smart motion senso — Detect any movement 10 meters and swich on automatically.
Aluminum housing — Waterproof aluminum house, IP65.
Long life span — LED last more than 50,000 hours.

Adjustable
(1) Sensitivity from 0-12M;
(2)Lighting time from 5sec. to 8 minutes;
(3) Lux environment from night to day light.
Low power consumption — usually a 50W LED flood equal to a 400-500W halogen bulb, save up to 80% electricity bill.
Easy installation — come with steel stand for insallation, the sensor is rotationable to adjust detective angle.

White 800LM Outdoor Flood Lamp

10W Color Changing Outdoor LED Flood Light

10W Color Changing Outdoor LED Flood Light

10W Color Changing Outdoor LED Flood Light

Specifications

Type Flood Light
Light Color   RGB
LED Color 4 Main Colors(Green,Red,White,Blue)
Modes Smooth/Flash/Fade/On/Off
Shell Material High Strength Aluminum
Cover Material 5mm High Strength Glasses
Wattage (W) 10
Voltage (V) AC85-265
Light Source LED
LED Quantity 9
Luminous Flux (lm) About 900
Beam Angle 120°
Dimension (mm) 113 x  85 x 85 x 75 (approx)
Net Weight (g) 551 (approx)
Package Included 1 x Flood Light,1 x Remote Controller

Features:
4 Main Colors(Green,Red,White,Blue),16 Colors in total
Waterproff design for outdoor use (but can not be put in the water)
Application: Play Grounds, Front or Back Yards, Advertisement Billboard, Building, Garden, Landscape, Marketplace
Ingress Protection Rating: IP65 (waterproff design, but can not be put in the water)

Shipping from your local warehouse is significantly faster. Some charges may apply.

In addition, the transit time depends on where you’re located and where your package comes from. If you want to know more information, please contact the customer service. We will settle your problem as soon as possible. Enjoy shopping!

Bridgelux COB 500w LED Flood Light

Bridgelux COB 500w LED Flood Light Bridgelux COB 500w LED Flood Light Bridgelux COB 500w LED Flood Light Specification:

 CE,ROHS

 85-305VAC

 500

 6000-6500k

 49000-50000

 Aluminum alloy

 Meanwell

 1

 80

 120

 65

 50 000

 3

 90-100lm/w

 0.9

 380*350*334

Features:

  • Use toughened glass and the light transmittance is about 93%.
  • With heatpioes to ensure better heat dissipation. LED driver contact with the heatsink directly and the heat dissipation is much stronger.
  • With casette structure, it is easy to install LED lighting , efficient for mass production.
  • Widely used in the lighting of government project,business area,airport,metro station,flyover,signboard and so on.



Strengthen road LED lighting industry standard

How to strengthen the standardization of LED industry, the industry generally has become a topic of concern. Highway lighting system is not uniform, which is not conducive to guarantee the quality of LED road lighting products. For the purchase, installation, maintenance and service will bring a lot of problems and issues. In this regard, the Department of Transportation Highway Research Institute Associate Professor Jiang Haifeng detailed interpreted the “road LED lighting” standard and three ministries tunnel LED lighting demonstration project tracking test results, for the development of the industry indicate a new direction.

Strengthen road LED lighting industry standard

China LED tunnel lighting demonstration project involving 15 highway tunnel LED lighting demonstration project, spanning 14 provinces and cities. Through rigorous experimental measurements and ultimately obtained the conclusions that high pressure sodium lamp LED lamps: 24h daylight saving an average of approximately 73.1%, 72.6%, and 61.4 %; refinement dimmer than the stepped dimming: 48h average saving of about 32.07%.

Dalian Road Tunnel energy-saving LED lighting system renovation project also gave participants a deep impression. Compared with traditional lamps, LED lighting with energy saving, long life, good display, targeted and easy-to-dimming advantages.

By comparison, it shows to indicators that LED illumination maintains a value higher than the original fluorescent lighting solutions, and the overall environmental performance of the light is well. Based on price 0.93 yuan / kWh, after the transformation, the power consumption of LED lamp is only 40% of the original charge, an annual energy savings of 587,000 degrees, saving electricity cost of 546,000 yuan.
