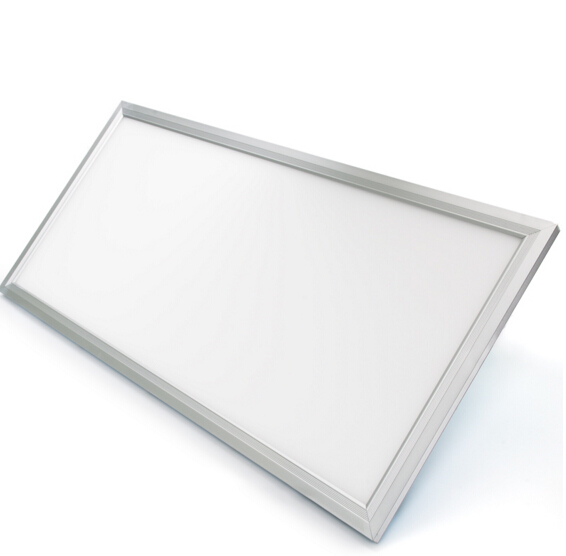

36 Watt LED Panel Light Fixture with 88 x 5630SMD LEDs. Natural White – 4500K at 2400 lumen. 100-277 VAC operation with included LED driver. 1′ x 2′ aluminum alloy 6063 frame and diffused PMMA optical lens. 160 degree beam angle. Designed for residential and commercial conventional suspended grid ceilings for new construction applications or replacing existing fluorescent troffer light fixtures. Includes UL Recognized constant current driver.
36W LED Panel Light Fixture 2ft Specification:
| Beam Angle | 160 degree | Comparable Wattage | 240 Watts |
|---|---|---|---|
| Connection Type | Pigtail | Current Draw | 300mA |
| Dimensions | 1ft x 2ft | Dimmable | No |
| LED Color | Natural White | LED Quantity | 88 LEDs |
| LED Type | 5630 SMD | Intensity | 2400 Lumen |
| Standards And Certifications | RoHS Compliant/UL Recognized | Total Power Consumption | 38 Watts |
| Type | Panel | Operating Voltage Range | 100~277V AC |
36W LED Panel Light Fixture 2ft Features:
- 88 x 5630SMD LEDs
- 300mm (1ft) x 600mm (2ft)
- Aluminum alloy 6063 frame
- Includes UL Recognized constant current driver
36W LED Panel Light Fixture 2ft Application:
- Residential & commercial suspended grid ceilings
- Schools/Hospitals/Gymnasiums/Hotels
- New Construction
- Retrofitting existing fluorescent troffer light fixtures
