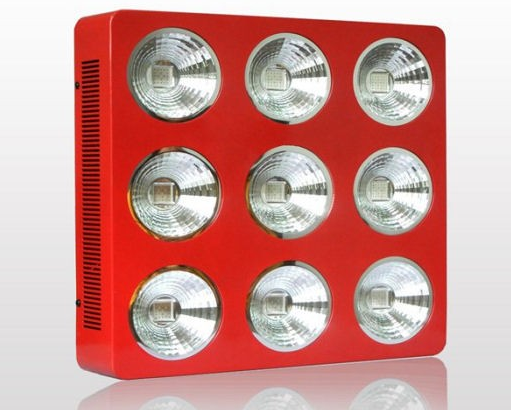

This Light has 9 Modules with Mixed Array LED’s, each Array has 25 High Quality/Output 3W LED’s
Dimensions : 42 cm Wide x 42 cm Deep x 7.5cm Deep LED grow light
Weight : 8Kg
Area Covered: 5 Feet x 5 Feet (24 Inches) 6ft x 6ft at (36 Inches)
Comparison: Tested PAR output & Penetration matches that of a 1000W HPS
INTEGRATED LED’S
Integrated LED’s are functionally the same as their traditional counterparts, but rather than individually cased LED’s they are miniaturized and combined into single, multiple-spectrum arrays. This brings considerable advantages in thermal dissipation, creating a positive effect on lifetime; reliability and allowing us produce lamps that enter the next power-factor.
The High Powered 3 Watt LED’s are carefully selected from LED Manufacturers such as Bridgelux, Cree and Epistar and thoroughly quality checked before leaving the factory.
The spectrums we use are 440nm, 460nm, 610nm, 630nm and 660nm & IR. Even though this spectrum is the currently the best we are always looking for new discoveries in fine tuning wavelengths and spectrums which could mean more newer spectrums may be available in the future. These units are fully upgradeable as well.
Features:
-
Free Hanging Kit & Power Lead
-
5 Years Total Peace of mind Warranty
-
5 years Technical / after sales support
-
90 days money back guarantee
-
From a UK based Company – no long waits for units/parts or repairs
-
Instant Communication at all times.
HEAT MANAGEMENT
Whilst being hugely more efficient than other methods of turning energy into light, 100% efficiency is impossible. Therefore LED’s do generate some heat output and this needs to be adequately dispersed away from the LED chips themselves. Note also that LED’s spectral output is affected by the chip running temperature. The bottom line is : the better the heatsinking and thermal management, the better the long term stability and reliability of the LED grow light.
Each Helios module has the mixed array LED hand soldered onto a metal core printed circuit board [PCB], These are the best component boards you can get for LED’s, specifically designed and produced by our own team of engineers.
Mounted On top of these are dual core, double plated heat sinks for superior cooling.
The efficient heat transfer paste is also carefully selected and tested thoroughly for its best heat dissipation from the LED diode to Heatsink
The whole internal components & Heat sinks are kept cool by high speed quiet ball bearing fans.
The only slightly warm air that comes from this unit is generated from exhaust from inside the unit from the heat sinks which are designed to transfer heat away from the rear of the LED diodes themselves. The fronts of the lights are slightly warm to the touch. So heat generation is almost Zero. This also helps the
Residual Humidity inside the area.
From Germination to Flowering, this LED is very capable of creating BIG yields, Big dense flowers and fruit and has been proven over and over again.
