Electrical data
Operating mode |
Electronic control gear (ECG) |
Nominal wattage |
6.00 W |
Lamp wattage |
6 W |
Nominal voltage |
220…240 V |
Mains frequency |
50 Hz/60 Hz |
Nominal current |
0.04 A |
Light technical data
Color temperature |
5400 K |
Beam angle |
80 ° |
Luminous flux |
350 lm |
Luminous intensity |
170 cd |
Color rendering index Ra |
› 80 |
Color rendering group |
1B |
Luminaire efficiency |
0.85 |
Dimensions & weight
Length |
250.0 mm |
Width |
40.0 mm |
Height |
26.0 mm |
Colors & materials
Body material |
Aluminum |
Product color |
Anodized |
Cover material |
Polycarbonate (PC) |
Temperatures
Ambient temperature range |
0…+45 °C |
Additional product data
Number of lighting outlets |
1 |
Equipment |
LED OSLON |
Capabilities
Type of installation |
Mounting |
Application |
Furniture lighting |
Adjustable |
Yes |
Dimmable |
No |
Type of connection |
Connector |
Accessories |
Power cable 2 m EU (4008321626493) / Power cable 2 m UK (4008321626516) / 250 MM (4008321626530) / 500 MM (4008321626530) / 1000 MM (4008321626530) / Swiveling base (4008321626400) |
Certificates & standards
Protection class |
II |
Type of protection |
IP20 |
Protection against ignition and fire |
F, MM |
500 mm and 750 mm
Average lifespan.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology. 250 mm, Shelf lighting
Accessories
LEDVANCE POLYBAR
LEDVANCE POLYBAR
Zoom in
Zoom out
Resize
Product benefits
Simple connection thanks to integrated connector system
Areas of application
Cove lighting
Shelf/furniture lighting
Workbenches
Product features
Available in 3 different lengths.000 h
Modular system for flexible configuration
Surface mounting with included brackets or available swivel base (± 20°)
Direct connection to AC power supply
Equipment / Accessories
Equipped with control gear
Equipped with OSLON LED Reduce text
Family data sheet
Product family. LED Floater Headline
.3 KB
zip
Eulumdat
LEDVANCE POLYBAR S 854 L80 zip 0. Hotel room lighting
Attractive down to the finest detail
Application:000 h
Modular system for flexible configuration
Surface mounting with included brackets or available swivel base (± 20°)
Direct connection to AC power supply
Equipment / Accessories
Equipped with control gear
Equipped with OSLON LED Reduce text
Product benefits
Simple connection thanks to integrated connector system
Areas of application
Cove lighting
Shelf/furniture lighting
Workbenches
Product features
Available in 3 different lengths, All rights reserved: 50, 250 mm: 500 mm and 750 mm
Average lifespan, important data at a glance
827 L80
830 L80
840 L80
850 L80
827 L80
830 L80
840 L80
850 L80
830 L80
840 L80
850 L80
827 L80
Scroll to left
Scroll to right
Zoom image

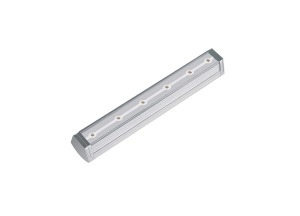

LDV POLYBAR S 850 L80
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Product Family Datasheet
Technical data sheet pdf 322: 50,7 KB
pdf
Installation guide
Mounting instruction pdf 896:8 KB
pdf
Declarations of conformity
CE declaration of conformity pdf 84:
Indoor LED High Bay Lights luminaires
Batten luminaires
LEDVANCE POLYBAR
Comfortable & variable
Application: OSRAM GmbH:6 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013
EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
4008321962423 |
Folding carton box
1 |
307 mm x 34 mm x 47 mm |
330.00 g |
0.49 dm³ |
4008321620194 |
Shipping carton box
4 |
318 mm x 80 mm x 164 mm |
1660.00 g |
4.17 dm³ |
4008321620200 |
Shipping carton box
16 |
360 mm x 166 mm x 330 mm |
7040.00 g |
19.72 dm³ |
