LF06P -W4F-830-P – LINEARlight POWER Flex Protect – Flexible LED modules
Electrical data
| Nominal wattage |
72.0 W |
| Reverse Voltage |
25 V |
| Type of current |
DC |
| Voltage Range |
23…25 V |
Light technical data
| Beam angle |
120 ° |
| Color temperature |
3000 K |
| Luminous flux |
2880 lm |
| Light color as per EN 12464-1 |
Warm White |
| Light color LED |
white |
| Color rendering index Ra |
› 80 |
Dimensions & weight
| Length |
3000.0 mm |
| Length – smallest unit |
150.0 mm |
| Width |
11.0 mm |
| Height |
4.5 mm |
| Cable length |
500.0 mm |
Temperatures
| Temperature range in operation |
-20…85 °C |
Lifespan
| Lifespan |
50000 h |
Additional product data
| Number of LEDs per module |
120 |
| Footnote used only for product |
Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see /All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values |
Capabilities
| Dimmable |
Yes |
Certificates & standards
| Type of protection |
IP67 |
| Standards |
acc. to EN 60598-1 |
Country specific categorizations
| Marketing product family |
LF06P-P |
200 lm/m
Dimmable
Fine White
Salt mist proof
Highly UV-resistant
Family data sheet
Product family.. OSRAM GmbH, up to 1: IP67
Luminous flux,
Modules
Flexible LED modules
LINEARlight POWER Flex Protect: g24 LED Floater Headline
:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology. important data at a glance
Product video
-W4F-830-P
-W4F-840-P
-W4F-876-P
-W4F-827-P
-W4F-830-P
-W4F-840-P
-W4F-854-P
Scroll to left
Scroll to right
Zoom image

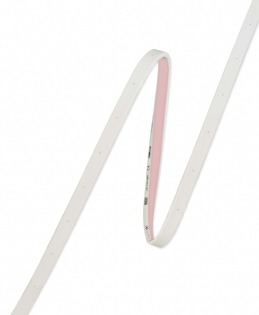

LF06P -W4F-830-P
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code Codice Metel SEG number STK number
4008321621870 OSRLF06PW4F830P 8334157 4031370
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013..
LINEARlight POWER Flex Protect
Zoom in
Zoom out
Resize
Product benefits
High-performance silicon for extremely long life and flexibility
Simple mounting and connection
Stylish design
Product features
Flexible LED strip
Type of protection: All rights reserved
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321621870 |
Folding carton box
1 |
353 mm x 38 mm x 349 mm |
711.50 g |
4.68 dm³ |
| 4008321621887 |
Shipping carton box
8 |
366 mm x 368 mm x 286 mm |
6078.00 g |
38.52 dm³ |
