| Nominal wattage | 96.00 W |
|---|---|
| Reverse Voltage | 25 V |
| Type of current | DC |
| Voltage Range | 23…25 V |
| Beam angle | 120 ° |
|---|---|
| Color temperature | 3000 K |
| Color rendering index Ra | › 80 |
| Length | 5100.0 mm |
|---|---|
| Width | 11.0 mm |
| Height | 3.7 mm |
| Cable length | 500.0 mm |
| Length – LED module | 5100.0 mm |
| Marketing product family | LF06P2-P |
|---|
. up to 1. IP67
Luminous flux,

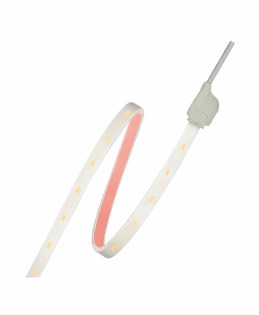

LINEARlight POWER Flex Protect
Zoom in
Zoom out
Resize
Product benefits
High-performance silicon for extremely long life and flexibility
Simple mounting and connection
Stylish design
Product features
Flexible LED strip
Type of protection:200 lm/m
Dimmable
Fine White
Salt mist proof
Highly UV-resistant
Family data sheet
Product family, All rights reserved: important data at a glance
Product video
-W4F-830-P
-W4F-840-P
-W4F-876-P
-W4F-827-P
-W4F-830-P
-W4F-840-P
-W4F-854-P
Scroll to left
Scroll to right
Zoom image
LF06P2 -W4F-830-P
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number
4008321790668 7500271
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: OSRAM GmbH. g24 LED Floater Headline
.
Modules
Flexible LED modules
LINEARlight POWER Flex Protect.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology:
| EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
|---|---|---|---|---|
| 4008321790668 | Folding carton box 1 |
|||
| 4008321790675 | Shipping carton box 8 |
