Nominal wattage | – W |
---|---|
Reverse Voltage | 25 V |
Type of current | DC |
Voltage Range | 23…25 V |
Beam angle | 120 ° |
---|---|
Color temperature | 3000 K |
Luminous flux | 5168 lm |
Light color as per EN 12464-1 | Warm White |
Light color LED | white |
Color rendering index Ra | › 85 |
Length | 3000.0 mm |
---|---|
Length – smallest unit | 150.0 mm |
Width | 8.0 mm |
Height | 3.0 mm |
Length – LED module | 3000.0 mm |
Number of LEDs per module | 120 |
---|---|
Footnote used only for product | Modules perfectly matched to 24 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values |
Dimmable | Yes |
---|
Marketing product family | LF06P2 |
---|
Flexible LED modules
LINEARlight POWER Flex
Professional & flexible
Application.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology.800 lm/m
Module efficacy, LED Floater Headline
: up to 80 lm/W
Dimmable
Fine White
Family data sheet
Product family: OSRAM GmbH, All rights reserved: Conference room lighting
LINEARlight POWER Flex
Zoom in
Zoom out
Resize
Product benefits
Large selection of light colors
Low profile
Product features
Flexible and cuttable G24 LED strip
Luminous flux: important data at a glance
Product video
-W5F-827
-W5F-830
-W5F-840
-W5F-854
-W5F-865
-W4F-827
-W4F-830
-W4F-840
-W4F-854
Scroll to left
Scroll to right
Zoom image

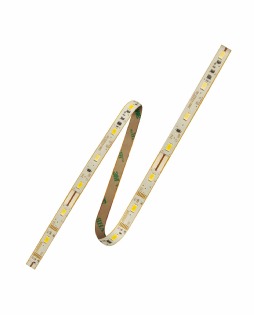

LF06P2 -W5F-830
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
Packaging information
Expand
Country-specific information
Expand
EAN code SEG number STK number
4008321971296 7500178 4030059
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013: up to 1
EAN code | Packaging unit Pieces per unit |
Dimensions l x w x h |
Gross weight | Volume |
---|---|---|---|---|
4008321971296 | Folding carton box 1 |
184 mm x 31 mm x 184 mm | 153.50 g | 1.05 dm³ |
4008321971302 | Shipping carton box 8 |
241 mm x 195 mm x 205 mm | 1417.00 g | 9.63 dm³ |
