Electrical data
| Nominal wattage |
30.00 W |
| Type of current |
DC |
| Voltage Range |
10…11 V |
Light technical data
| Beam angle |
120 ° |
| Luminous flux |
37 lm |
| Light color as per EN 12464-1 |
Blue |
| Light color LED |
blue |
| Nominal dominant wavelength |
470 nm |
| Color rendering index Ra |
› 80 |
Dimensions & weight
| Length |
4200.0 mm |
| Length – smallest unit |
56.0 mm |
| Width |
10.4 mm |
| Height |
4.5 mm |
Temperatures
| Temperature range in operation |
-30…70 °C |
Lifespan
| Lifespan |
50000 h |
Additional product data
| Number of LEDs per module |
300 |
| Footnote used only for product |
Modules perfectly matched to 10 V OSRAM OPTOTRONIC electronic control gear/For current photometric data and important safety, installation and application information, see All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values |
Capabilities
| Dimmable |
Yes |
Certificates & standards
| Standards |
acc. to DIN EN 60825-1 |
Country specific categorizations
| Marketing product family |
LM11A |
2 MB
mov
Product movie
Spots LINEARlight Flex Quality short QTh264 3500kbit 1024×576 (E) mov 39.
Modules
Flexible G24 LED modules
LINEARlight FLEX SIDELED
LINEARlight FLEX SIDELED
Zoom in
Zoom out
Resize
Product benefits
Light emission parallel to the mounting surface
Product features
Flexible and cuttable LED strip
LEDs with short pitch
Family data sheet
Product family.4 MB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013,5 KB
zip
Eulumdat
LM11A B zip 24. OSRAM GmbH. All rights reserved.
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge
Advanced full-text search
Products – LED technology. important data at a glance
-W3-847
-W3-854
-W3-865
-B
-Y1
Zoom image

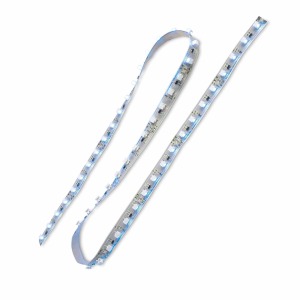

LM11A -B
Product data sheet
Add to notepad
Technical data
Expand
Graphics and application images
Expand
Downloads
Expand
File Type Size
pdf
Addon Technical Information
LINEARlight FLEX SIDELED LM11A DATASHEET (D) pdf 222.0 KB
pdf
Addon Technical Information
LINEARlight FLEX SIDELED LM11A DATASHEET (GB) pdf 221: LED Floater Headline
:7 KB
mov
Product movie
Spots LINEARlight Flex Quality long QTh264 3500kbit 1024×576 (E) mov 105
| EAN code |
Packaging unit
Pieces per unit |
Dimensions
l x w x h |
Gross weight |
Volume |
| 4008321086976 |
Folding carton box
1 |
184 mm x 29 mm x 184 mm |
175.00 g |
0.98 dm³ |
| 4008321086983 |
Shipping carton box
8 |
241 mm x 195 mm x 205 mm |
1848.00 g |
9.63 dm³ |
