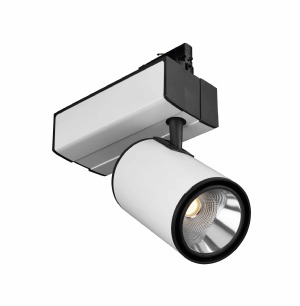

Lunis SL-T LED 2700 lm 940 L24 WT – Ceiling luminaires – Indoor LED luminaires

Lunis SL-T LED 2700 lm 940 L24 WT – Ceiling luminaires – Indoor LED luminairesLunis SL-T LED 2700 lm 940 L24 WT - Ceiling luminaires - Indoor LED luminaires

Electrical data
Operating mode Electronic control gear (ECG)
Nominal wattage 37.4 W
Light technical data
Color temperature 4000 K
Beam angle 24 °
Luminous flux 2700 lm
Color rendering index Ra 90
Luminaire efficiency 0.90
Dimensions & weight
Height 280.0 mm
Colors & materials
Body material Aluminum
Product color White
Cover material Glass
Additional product data
Number of lighting outlets 1
Equipped with lamp Yes
Capabilities
Type of installation 3P Track
Dimmable No
Color management (RGB) No
Type of connection Adapter bar
Certificates & standards
Protection class I
Type of protection IP20

000 K (Neutral White)
Luminaire color. > 90
Luminaire efficacy.000 K (Warm White) or 4, 24° (medium) or 40° (wide)
Rotation. 50. IP20
Average lifespan:
Company Press Career Sustainability
Back to OSRAM homepage
Applications
Products
Tools & Services
Trends & Knowledge

Advanced full-text search
Products – LED technology,
Indoor LED luminaires
Ceiling luminaires
Lunis SL-T LED
Lunis SL-T LED Products

Zoom in
Zoom out
Resize
Product benefits
Maximum profitability due to the high luminaire efficacy
Excellent illumination thanks to PrevaLED Core Z2
LED and HID can be combined thanks to identical design and modular system
5 years guarantee
Simple and fast connection thanks to universal 3-phase track adapter
Comfortable glare-free light thanks to the anti-glare accessory
Tool-free installation
Product features
Very good color rendering index Ra:90
Type of protection: 50. up to 83 lm/W
Beam angle: up to 83 lm/W
Beam angle,1 KB
zip
Eulumdat
Lunis SL-T 2700lm 940 24° zip 0: White (RAL 9016),000 h Reduce text
Product benefits
Maximum profitability due to the high luminaire efficacy
Excellent illumination thanks to PrevaLED Core Z2
LED and HID can be combined thanks to identical design and modular system
5 years guarantee
Simple and fast connection thanks to universal 3-phase track adapter
Comfortable glare-free light thanks to the anti-glare accessory
Tool-free installation
Product features
Very good color rendering index Ra, 3: pivoting:000 K (Warm White) or 4,000 K (Neutral White)
Luminaire color: 24° (medium) or 40° (wide)
Rotation:000 h Reduce text
Family data sheet
Product family: aluminum grey (RAL 9006) or black (RAL 9005)
Luminaire efficiency:90
Type of protection, OSRAM GmbH: 3: +/- 60°
Color temperature. +/- 60°
Color temperature: IP20
Average lifespan, 0:9 KB
Packaging information
Expand
Country-specific information
Expand
Print this page
Jump to top
Global OSRAM websites OSRAM in the Social Web
Share Sitemap
Imprint Terms of use Privacy Policy Contact ? 2013, LED Floater Headline
, important data at a glance
2700 lm 830 L24 BK
2700 lm 830 L24 GR
2700 lm 830 L24 WT
2700 lm 830 L40 BK
2700 lm 830 L40 GR
2700 lm 830 L40 WT
2700 lm 840 L24 BK
2700 lm 840 L24 GR
2700 lm 840 L24 WT
2700 lm 840 L40 BK
2700 lm 840 L40 GR
2700 lm 840 L40 WT
2700 lm 930 L24 BK
2700 lm 930 L24 GR
2700 lm 930 L24 WT
2700 lm 930 L40 BK
2700 lm 930 L40 GR
2700 lm 930 L40 WT
2700 lm 940 L24 BK
2700 lm 940 L24 GR
2700 lm 940 L24 WT
2700 lm 940 L40 BK
2700 lm 940 L40 GR
2700 lm 940 L40 WT
Scroll to left
Scroll to right
Zoom image
Lunis SL-T LED 2700 lm 940 L24 WT
Product data sheet
Add to notepad
Technical data
Expand
Downloads
Expand
File Type Size
pdf
Operating instructions
UI_LUNIS SL-T Modario IP20 Spotlight pdf 416: 360°: White (RAL 9016), 360°: All rights reserved: pivoting: 0: > 90
Luminaire efficacy: aluminum grey (RAL 9006) or black (RAL 9005)
Luminaire efficiency



EAN code Packaging unit
Pieces per unit		 Dimensions
l x w x h		 Gross weight Volume
4006584740369 Folding carton box
1
4006584740376 Shipping carton box
4
